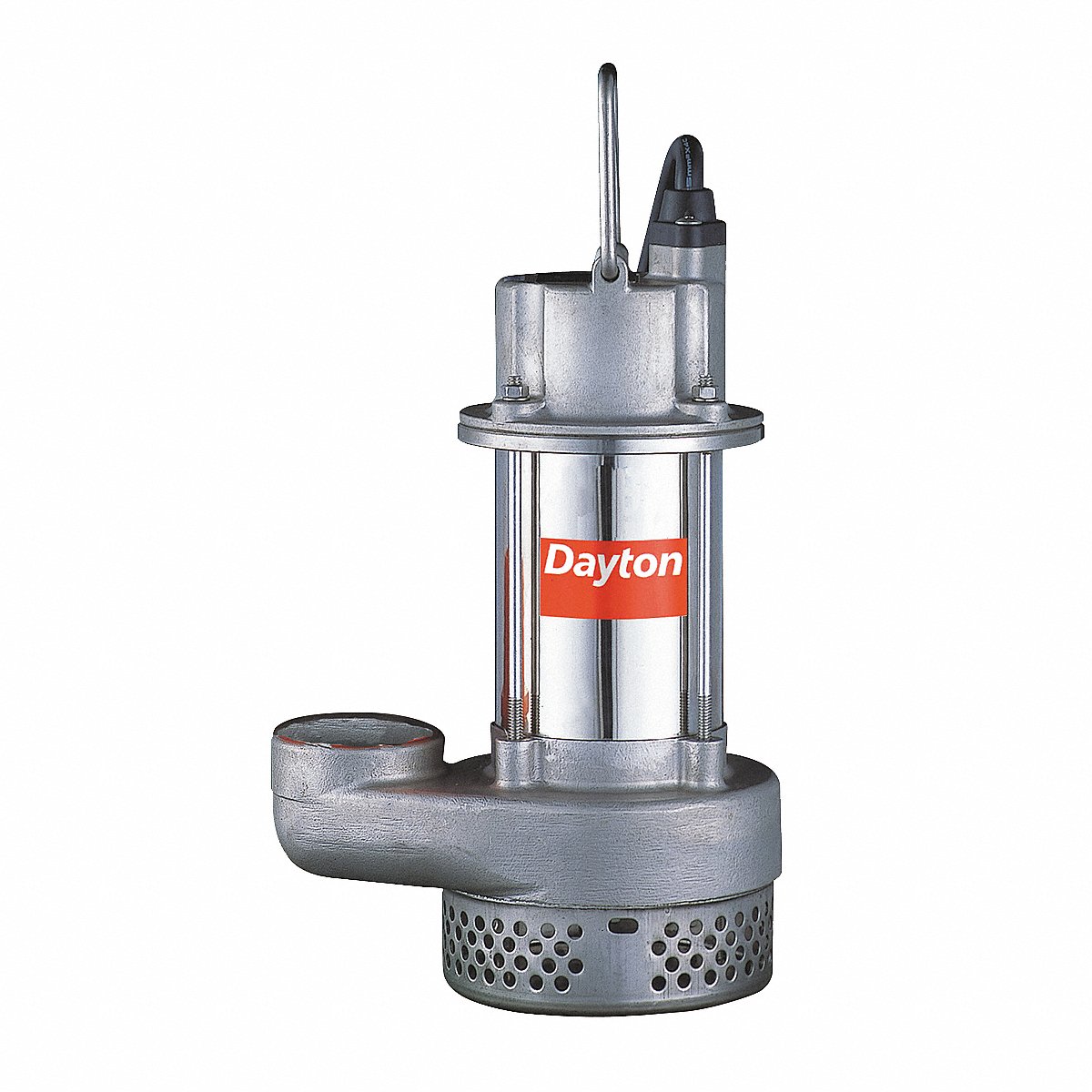

Dayton Plug-Inutilitypump, 20Ft, 18.125In, 120Vac, 20FT (1XHV5)

Standards: CSA

Discharge: 2 in FNPT

Duty Cycle: Continuous

Rated Voltage: 120V AC

Horsepower: 1 hp

Power Source: Corded Electric

NEC Cord Designation: SJTW

Frequency: 60 Hz

Current: 11.3 A

Manufacturers Warranty Length: 1 yr

Motor Housing Material: Stainless Steel

Impeller Design: Open

For Media Type: Mine Acid Water, White Liquor, Hydrogen Peroxide, Salt Water, Lubricant, Plant Based Oil, Deionized Water, Stoddard Solvent, Clear Water, Glycerine, White Water, Detergent, Formaldehyde, Coolant, Grey Water

Flow Rate @ 10 ft of Head: 82 gpm

Feet of Head - Maximum: 49 ft

Volute Material: Cast Iron

Solids Diameter - Maximum: 3/8 in

Gauge/Conductor: 14/3

Cord Length: 20 ft

Series: Pro Series

Switch Actuation: No Switch Included

Hazardous Location Class: Not Rated

Liquid Temperature - Maximum: 104 Degrees F

Sump Pit Diameter - Minimum: 18 in

Thermal Protection: Auto

For Industry: Residential, Commercial

Shaft Seal Material: Carbon/Ceramic/Viton

Phase: Single

Switch Electrical Connection: No Switch Included

Impeller Material: Stainless Steel

Shaft Seal Type: Double Mechanical
