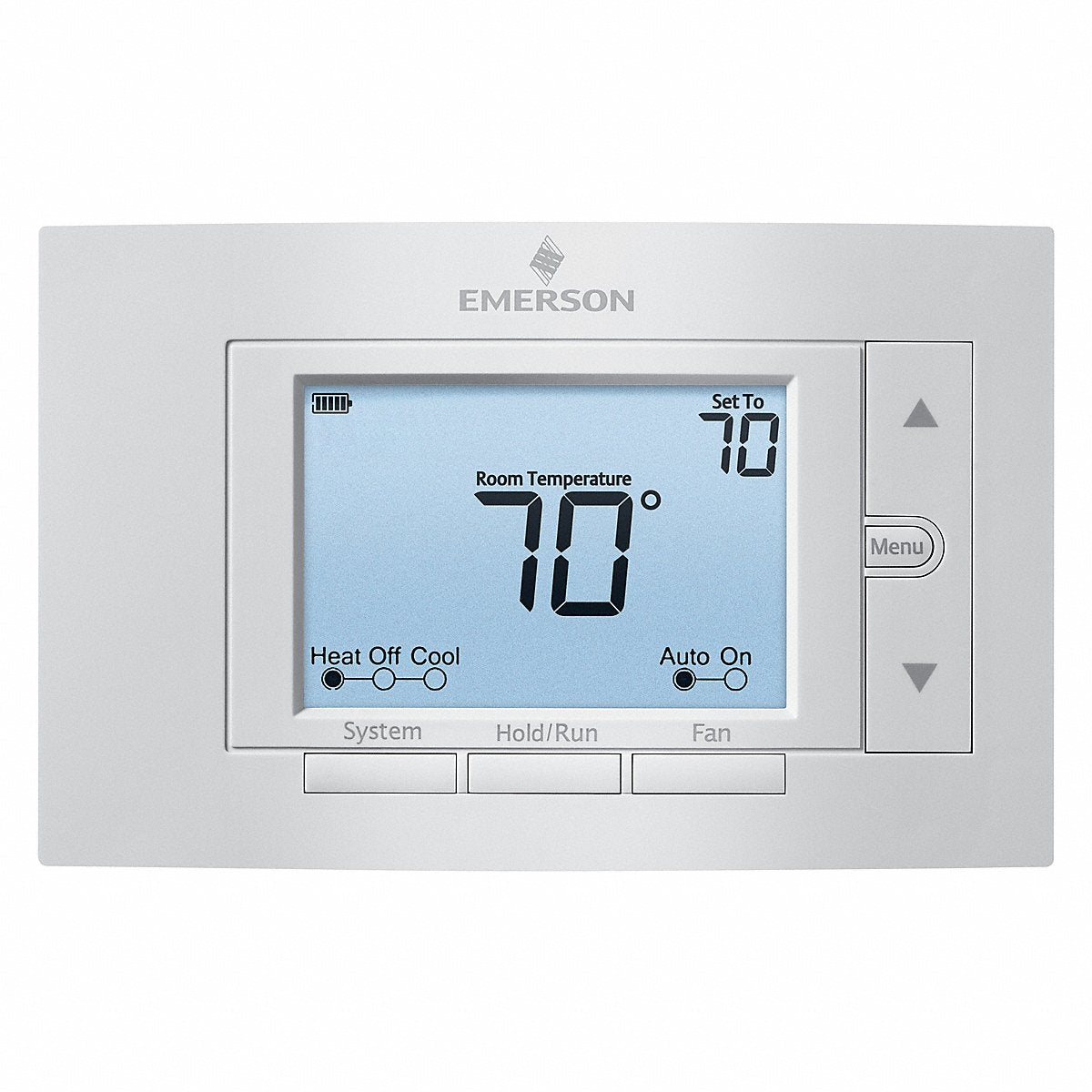

Emerson Low Volt Np Digital Tstat H And C, Wired (1F85U-42NP)

Overall Height: 3-3/4 in

Includes Positive Off: Yes

Terminal Designations: RC, RH, W2, W/E, O/B6, Y2, Y, L, G, C

Temperature Control Range: 45 Degrees to 99 Degrees F

Overall Width: 6 in

Digit Size: Easy Read

Number of Cooling Stages - Conventional System: 2

Dehumidification Control: No

Humidification Control: No

Changeover Type: Automatic

Compatible System Type: Heat Pump with Aux, Gas Forced Air Furnaces, Millivolt, Electric Forced Air Furnaces

Overall Depth: 1-1/8 in

Temperature Scale: Fahrenheit/Celsius

Differential Type: Adjustable

Programming Capability: Not Programmable

Stages: 4H/2C Conventional, 4H/2C Heat Pump

Fan Settings: Auto

Shape: Rectangle

Display Type: Digital

Number of Heating Stages - Conventional System: 4

System Settings: Auto

Mounting Direction: Horizontal

Key Pad Lockout: Yes

Application: Heat and Cool

Control Type: Slide Switch
