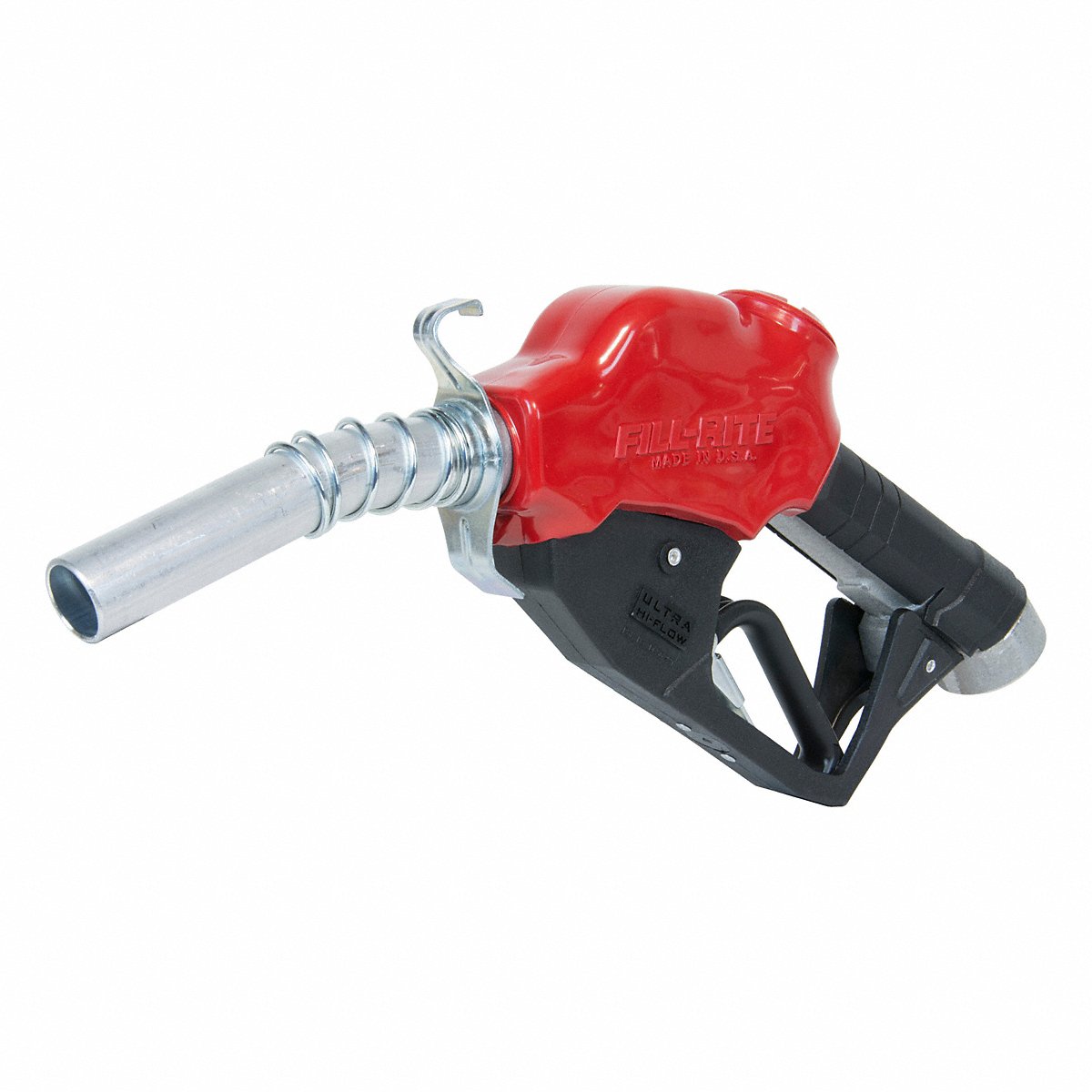

Fill-rite Fuel Nozzle Auto 1 in FNPT Aluminum (N100DAU13)

Includes: Spout Spring

Nozzle Operation: Automatic

Operating Temperature - Minimum: -20 Degrees F

Meter Type Included: No Meter Included

Spout Tip Shape: Round

Wetted Material: Cast Aluminum/Florocarbon

Inlet Size: 1 in

Compatible Mfr. Model No.: NX25-120NB-PX, NX25-DDCNF-PX, NX25-DDCNB-PX, FR4210H, NX25-120NF-PX, FR319VB, FR4210HN, NX25-120NB-AA, FR319VBP, FR311VN, NX25-120NF-AA, FR710VN, FR4219H, FR4210HBFQ, FR4210HB, FR311VB, FR4211H, FR710VB, FR4211HLN, FR4220HDSFQ, FR4204H, FR4410H, FR4220HDSQ, FR4210HARC, FR4211HL, FR311VLB, FR310VN, NX25-DDCNF-AA, NX25-DDCNB-AA, FR310VB, FR311VLN, FR711VA

Minimum Fluid Temperature: -20 Degrees F

Cover Color: Red

Spout Material: Aluminum

Spout Tip Outside Diameter: 1-13/16 in

Chemical Compatibility: Gasoline, Diesel

Primary Color: Red

Max. Flow Rate: 40 gpm

Inlet Type: FNPT

Flow Mechanism: Pressure Activated

Operating Temperature - Maximum: 150 Degrees F

Maximum Fluid Temperature: 150 Degrees F

Standards: cULus

Body Material: Aluminum

Spout Shape: Curved
