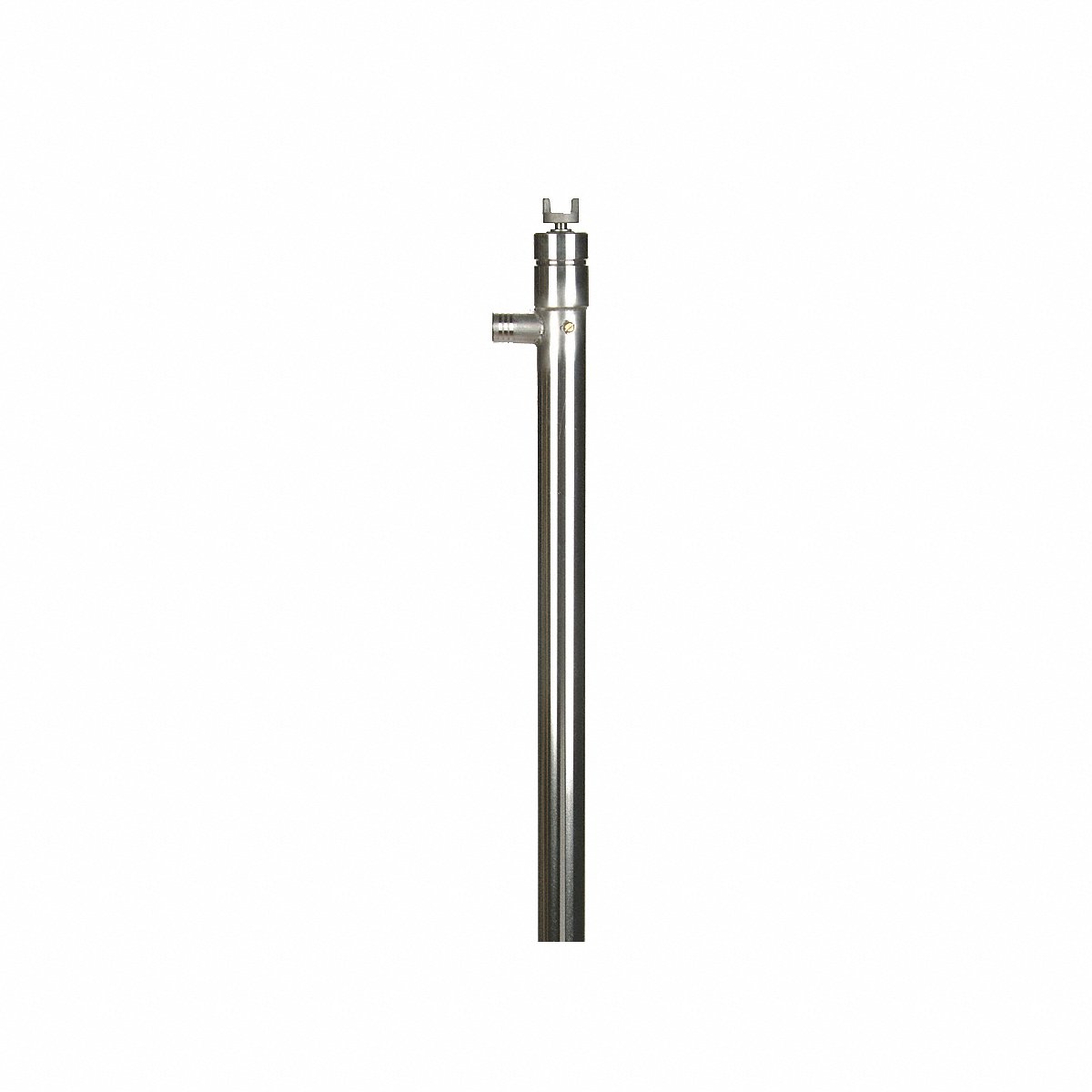

Finish Thompson Drum Pump Tube, 40" Length, 316 Stainless Steel, 1-1/2" ID (DTTS008)

Suction Tube Type: Fixed

Suction Tube ID: 1-1/2 in

Discharge Connection Type: Hose Barb

Maximum Head Pressure: 30.3 psi

Seal Material: PTFE

Runs Dry: No

Discharge Tube Outlet OD: 1-7/16 in

Compatible Manufacturer Part Number: DTTU015, DTTU016, DTTU014

For Container Type: Pail, Drum

Suction Tube Material: 316 Stainless Steel

Maximum Head: 70 ft

Suction Tube OD: 1-3/16 in

Maximum Fluid Temperature: 150 Degrees F

Wetted Material: 316 Stainless Steel/PTFE

Discharge Tube Outlet ID: 1 in

Inlet Size: 1-1/2 in

Maximum Flow Rate: 16 gpm

Maximum Pressure: 13 psi

Chemical Compatibility: Methyl Ethyl Ketone, Brake Fluid, Nitric Acid 10% Solution, Automatic Transmission Fluid, Acetic Acid 80%, Gasoline, Sodium Hydroxide 50%, Ethanol, Ammonia Liquid, Windshield Washer Fluid, Paint Thinner, Diesel Fuel, Sodium Bisulfate, Ethylene Glycol, Lacquer Thinners, Methanol, Toluene, Kerosene, Sodium Bisulfite, Deionized Water, Isopropanol, Potassium Hydroxide 50%, Formaldehyde 40%, Sodium Bicarbonate 10%, Chromic Acid 30%, Synthetic Oil, Sodium Hydroxide 80%, Trichlorethylene 50%, Biodiesel, Anhydrous Ammonia, Acetic Acid 20%, Chromic Acid 5%, Heptane, Petroleum Oil, Citric Acid 50%, Calcium Chloride, Glycerin, Salt Water, Formaldehyde, Phosphoric Acid 40% Solution, Formic Acid, Glacial Acetic Acid, Cyclohexane, Naphtha, Antifreeze Coolant, Fresh Water, Acetone, Chromic Acid 10%, Ethyl Acetate, Chromic Acid 50%, Nitric Acid 20% Solution, Turpentine, Hydrazine, Sodium Hydroxide 20%, Ammonium Hydroxide, E85, Concentrated Nitric Acid, Xylene, Stoddard Solvent, Hexane, Nitric Acid 50% Solution, DEF

For Container Size: 55 gal, 30 gal
