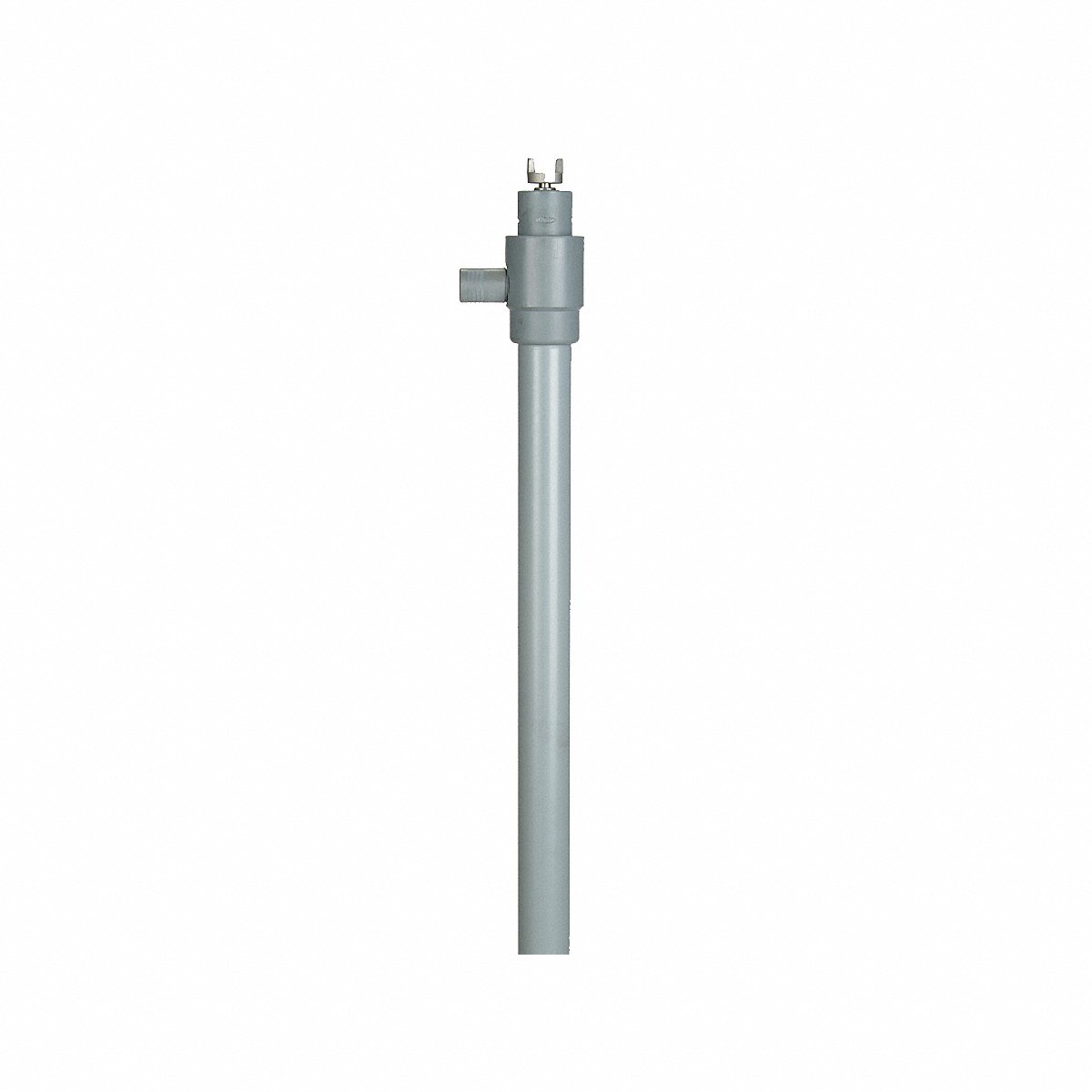

Finish Thompson Drum Pump Tube, 40" Length, CPVC, 1-5/8" ID (DTTC008)

For Container Type: Drum, Tote

Maximum Fluid Temperature: 150 Degrees F

Runs Dry: No

Maximum Flow Rate: 16 gpm

Suction Tube OD: 1-3/16 in

For Container Size: 55 gal, 275 gal

Discharge Tube Outlet ID: 1 in

Maximum Head: 70 ft

Suction Tube ID: 1-5/8 in

Chemical Compatibility: Nitric Acid 10% Solution, Acetic Acid 80%, Sodium Hydroxide 50%, Sodium Bisulfate, Ethylene Glycol, Sodium Bisulfite, Deionized Water, Potassium Hydroxide 50%, Sodium Bicarbonate 10%, Hydrochloric Acid 20%, Chromic Acid 30%, Sodium Hydroxide 80%, Acetic Acid 20%, Chromic Acid 5%, Hydrofluoric Acid 20%, Bleach, Citric Acid 50%, Calcium Chloride, Sulfuric Acid 10% to 75%, Salt Water, Phosphoric Acid 40% Solution, Formic Acid, Antifreeze Coolant, Sulfuric Acid up to 10%, Fresh Water, Chromic Acid 10%, Chromic Acid 50%, Nitric Acid 20% Solution, Sodium Hydroxide 20%, Ammonium Hydroxide, Nitric Acid 50% Solution

Compatible Manufacturer Part Number: DTTC008

Maximum Pressure: 13 psi

Seal Material: PTFE

Suction Tube Material: CPVC

Inlet Size: 1-5/8 in

Maximum Head Pressure: 30.3 psi

Discharge Connection Type: Hose Barb

Discharge Tube Outlet OD: 1-7/16 in

Suction Tube Type: Fixed

Wetted Material: Alloy 625/CPVC/PTFE
