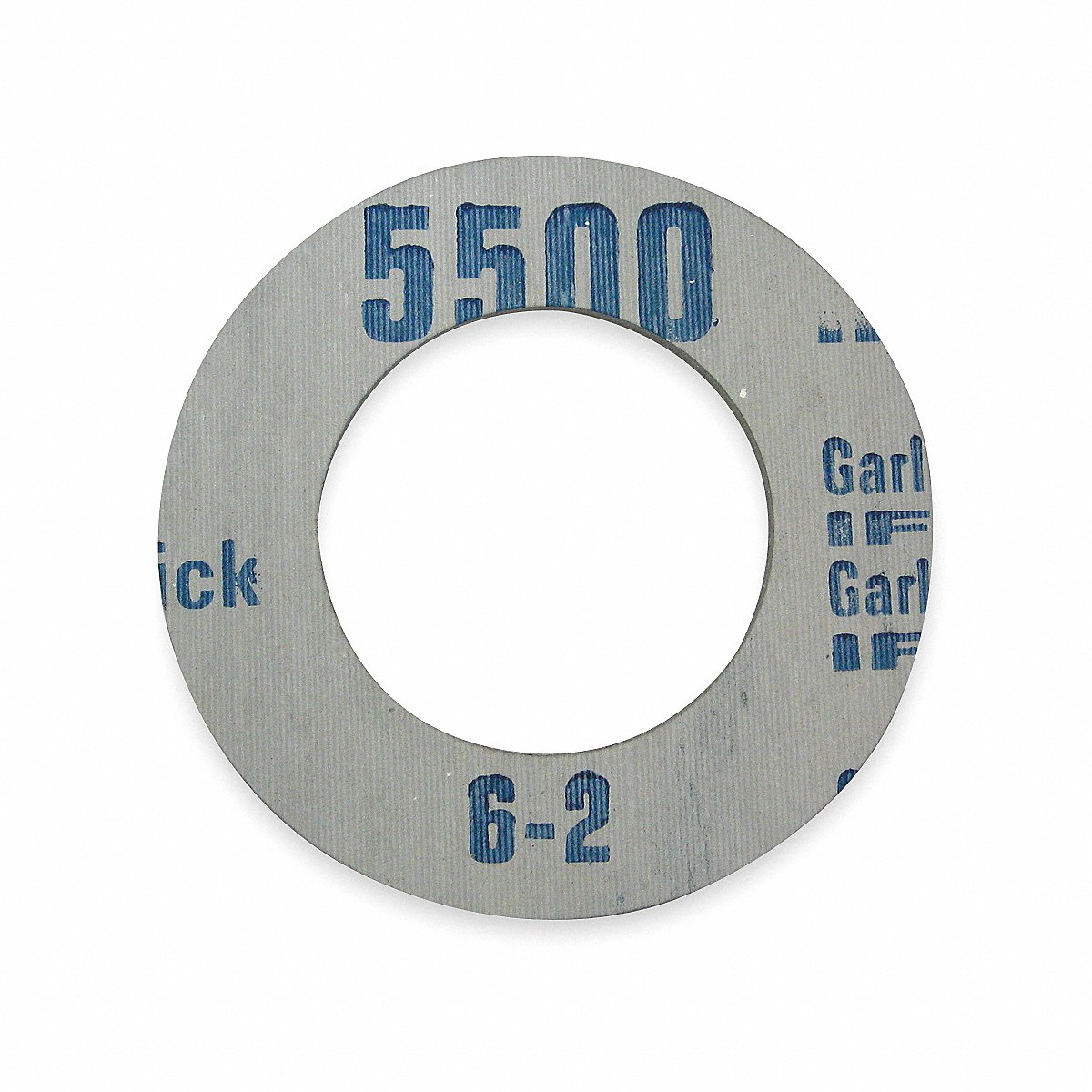

Garlock Flange Gasket 1-1/2 in 1/8 in Gray (5500RG-0150-125-0150)

Maximum Operating Temperature: 800 Degrees F

Gasket Type: Ring Gasket

For Pipe Size: 1-1/2 in

Includes Mounting Hardware: No

Thickness: 1/8 in

Standards: ASME B16.21, ASME/ANSI Pressure Class-150 LB, ABS and Fire Safe Standard

Inside Diameter: 1-29/32 in

Material Performance: High-Temperature

For Flange ANSI Class: 150

Buna-N Binder Material: Buna-N

Minimum Operating Temperature: -100 Degrees F

Outside Diameter: 3-3/8 in

Color: Gray

Maximum Operating Pressure: 1,200 psi
