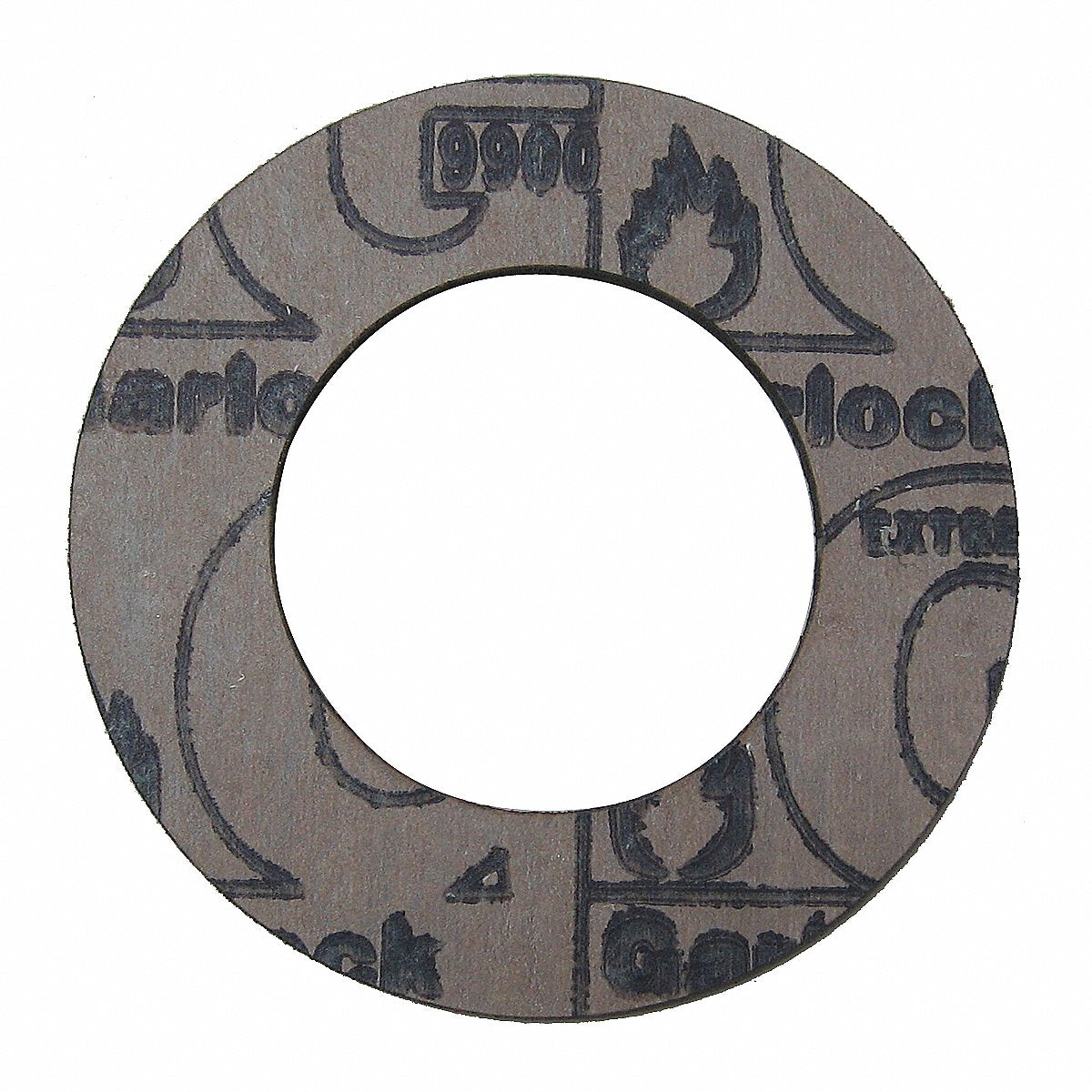

Garlock Flange Gasket 1 in 1/16 in Mahogany (9900RG-0150-062-0100)

Binder Material: Buna-N

Minimum Operating Temperature: -100 Degrees F

For Pipe Size: 1 in

Outside Diameter: 2-5/8 in

Gasket Type: Ring Gasket

Hardness: Not Rated

Maximum Operating Temperature: 1,000 Degrees F

Metal Detectable Gasket: No

Inside Diameter: 1-5/16 in

FDA Approved: No

Standards: ASME B16.21, ASME/ANSI Pressure Class-150 LB, ABS Standard, STR 508(5) Rev. 2 and Fire Safe

Thickness: 1/16 in

Color: Mahogany

For Flange ANSI Class: 150

Maximum Operating Pressure: 2,000 psi

Material: Graphite

Reinforced: No

X-Ray Detectable: No
