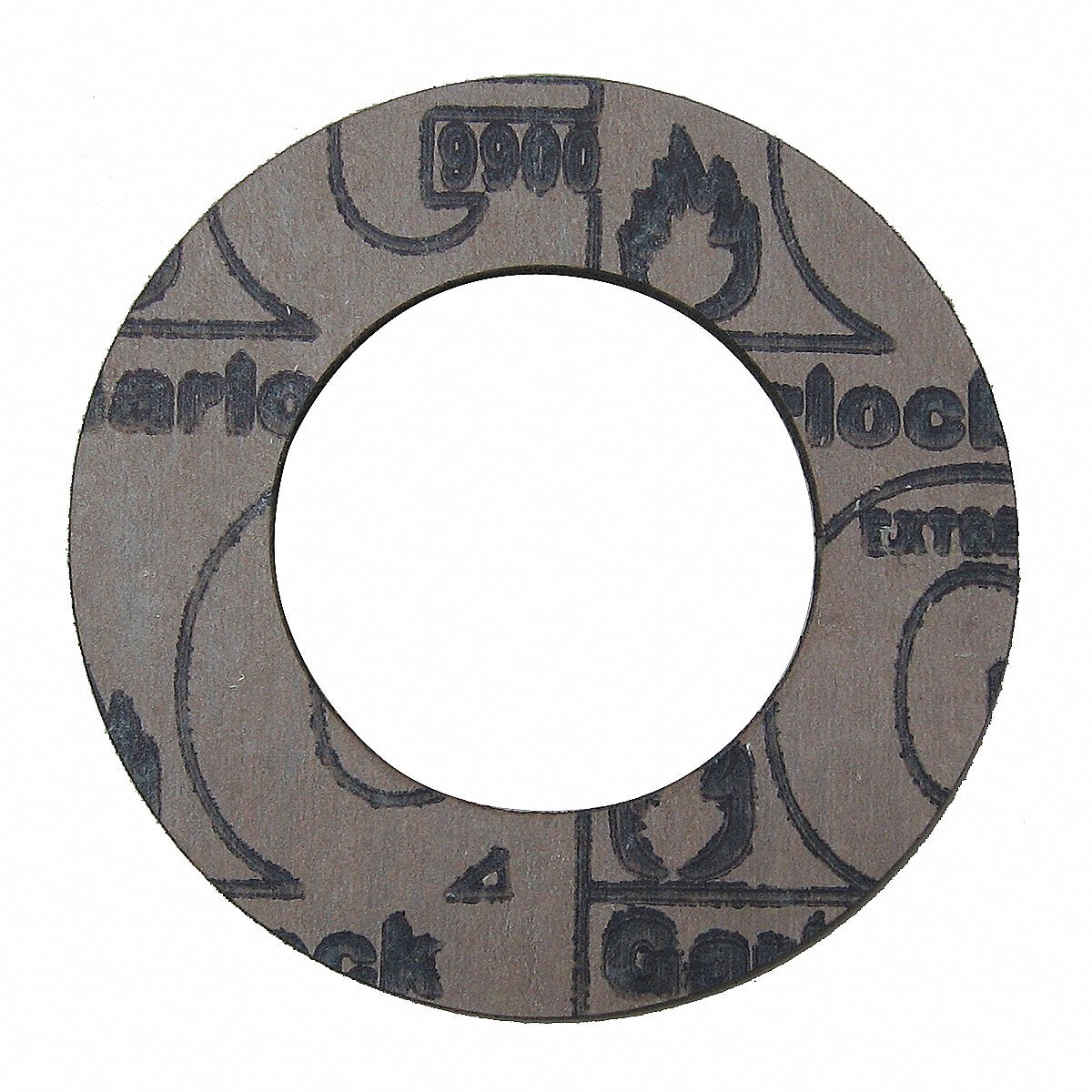

Garlock Flange Gasket 4 in 1/8 in Mahogany (9900RG-0150-125-0400)

Color: Mahogany

Metal Detectable Gasket: No

Standards: ASME B16.21, ASME/ANSI Pressure Class-150 LB, ABS Standard, STR 508(5) Rev. 2 and Fire Safe

Inside Diameter: 4-1/2 in

X-Ray Detectable: No

Material: Graphite

Maximum Operating Pressure: 2,000 psi

Outside Diameter: 6-7/8 in

Reinforced: No

FDA Approved: No

Thickness: 1/8 in

Gasket Type: Ring Gasket

Maximum Operating Temperature: 1,000 Degrees F

Hardness: Not Rated

For Flange ANSI Class: 150

For Pipe Size: 4 in

Binder Material: Buna-N

Minimum Operating Temperature: -100 Degrees F
