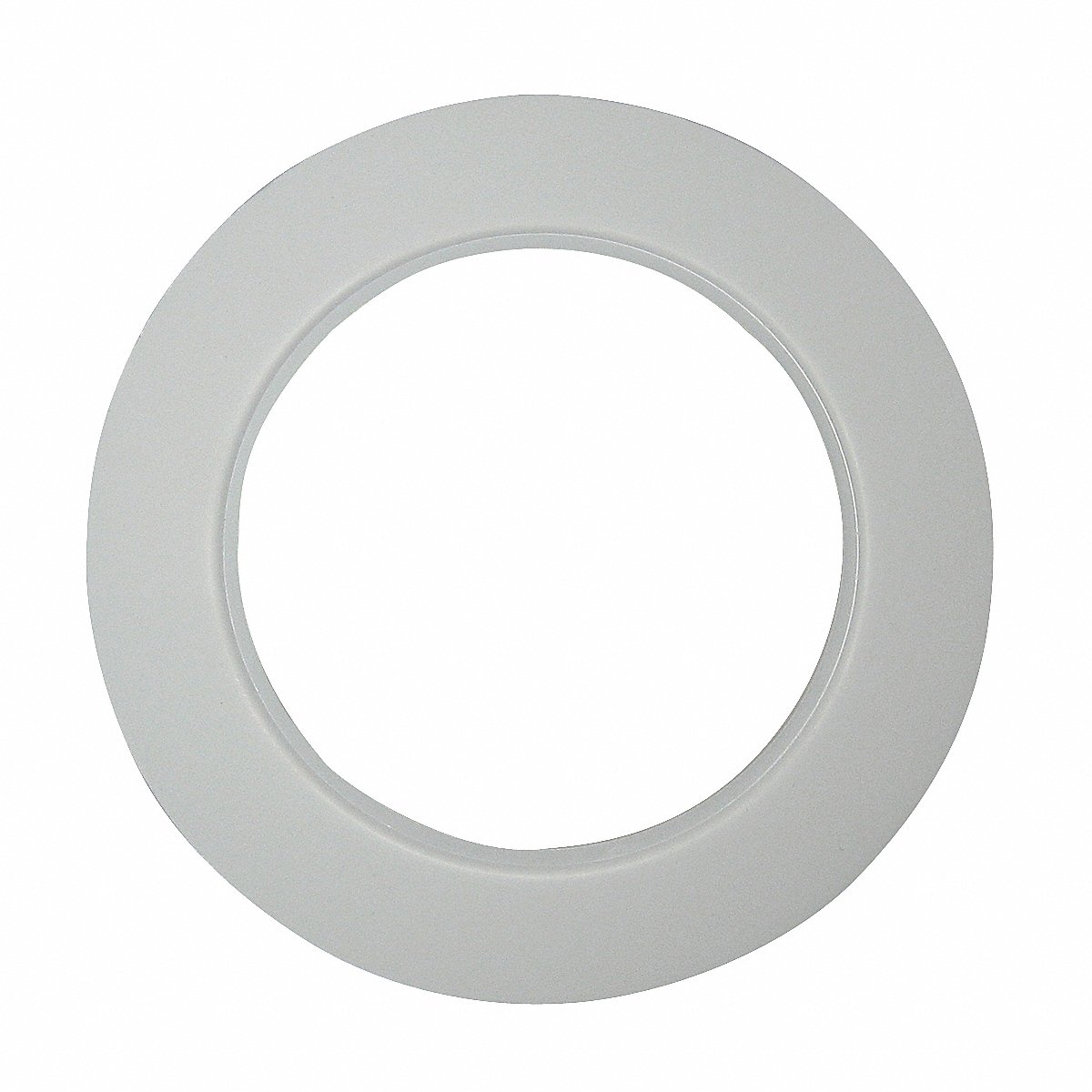

Gore Ring Gasket 10 In Expanded PTFE (STYLE 800)

Maximum Operating Temperature: 600 Degrees F

Outside Diameter: 13-3/8 in

Thickness: 1/8 in

For Flange ANSI Class: 150

Maximum Operating Pressure: 3,000 psi

Standards: ASME B16.21 GLS ID, ASME B16.21, EN Standard, EN 1514-1, EN 1514-1 GLS ID, ASME B16.21 NPS ID

X-Ray Detectable: No

Inside Diameter: 10-3/4 in

Hardness: Not Rated

Color: White

FDA Approved: No

Gasket Material: ePTFE

Metal Detectable Gasket: No

Minimum Operating Temperature: -452 Degrees F

Resistance Properties: Chemical-Resistant

For Pipe Size: 10 in

Gasket Type: Ring Gasket

Reinforced: No
