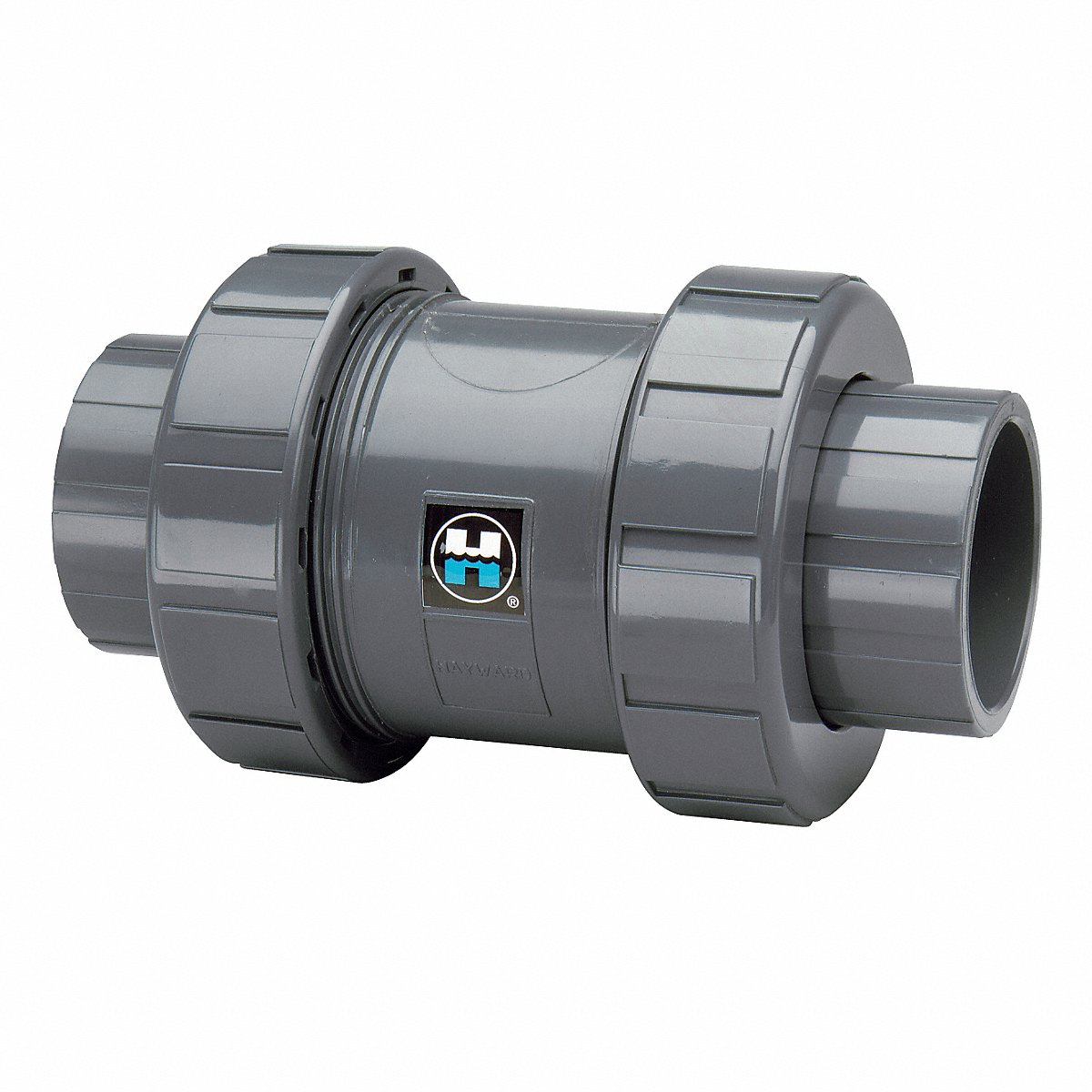

Hayward Check Valve, 11.25 In Overall L, 25 IN (TC20200F)

Name: Hayward Check Valve, 11.25 In Overall L, 25 IN (TC20200F)
Brand: HAYWARD
SKU: 5AAV1
Price: 672.37 USD
Availability: InStock

Vendor: HAYWARD Type: Plumbing

SKU: 5AAV1

$672.37 ~~$679.16~~

Limited availability — only 1 remaining

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

For Media: Water

Mounting Orientation: Vertical, Horizontal

Flow: 70 gpm

Maximum Pressure - Operating: 150 psi

Silent Check: Standard

Valve Body Style: Inline

Seat Material: FKM

ANSI Flange Class: Class 150

Maximum Pressure - Steam: Not Rated

3-A Standard Compliance: Not Rated

Body Material: CPVC

NSF Certifications for Food and Drinking Water: NSF 61

Standards: ASTM D1784

Connection Type: Flange x Flange

Media Temp. Range: 34 Degrees F to 190 Degrees F

Cracking Pressure: 3 psi

Check Mechanism Material: CPVC

Nominal Valve Size: 2 in

Coefficient of Volume (Cv): 130

Seal Material: FKM

Check Mechanism: Ball
