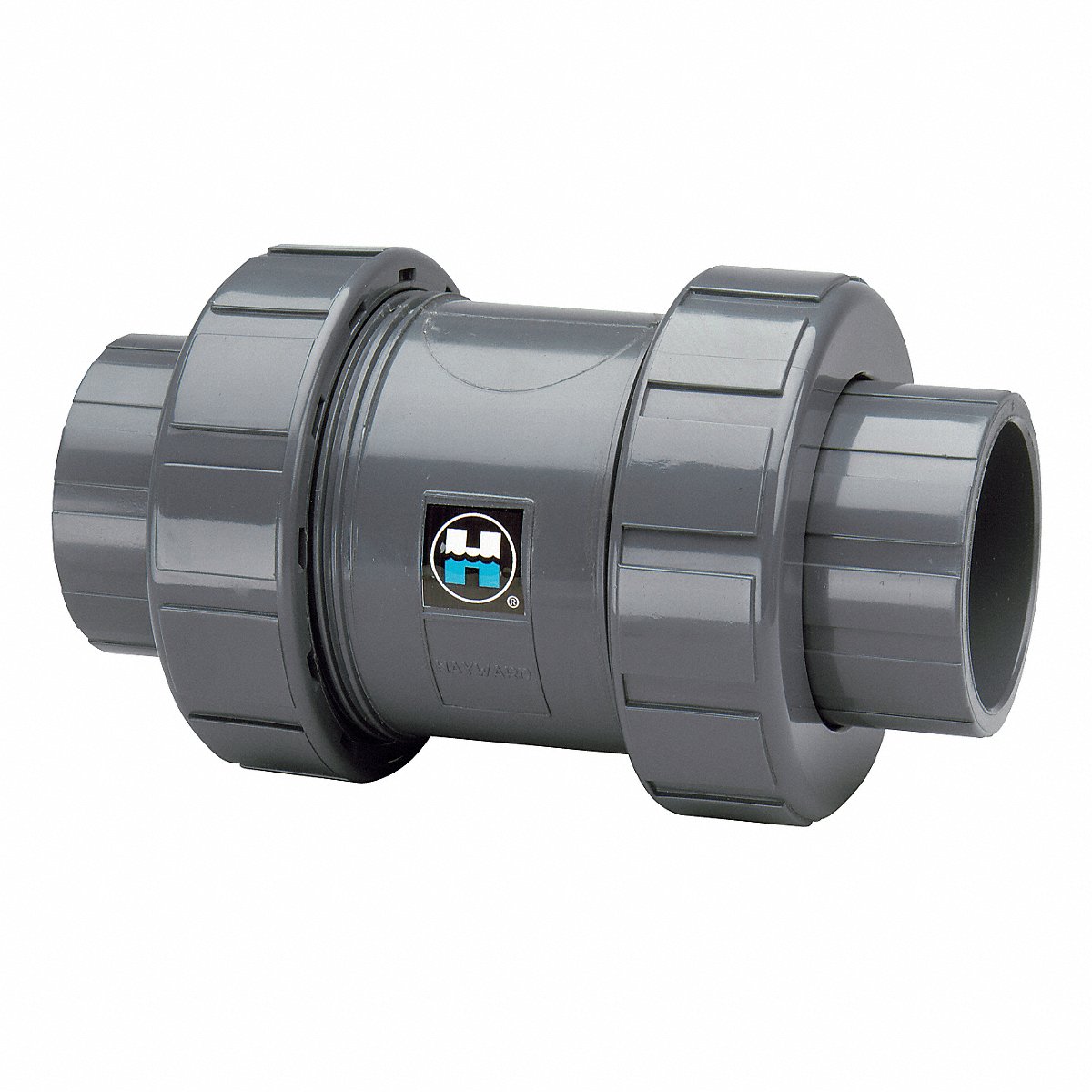

Silent Check: Standard
Valve Body Style: Inline
Body Material: PVC
Check Mechanism Material: PVC
For Media: Water
Check Mechanism: Ball
Seat Material: EPDM
3-A Standard Compliance: Not Rated
Maximum Pressure - Operating: 150 psi
Flow: 6 gpm
Standards: ASTM D1784
Coefficient of Volume (Cv): 4.8
NSF Certifications for Food and Drinking Water: NSF 61
Nominal Valve Size: 1/2 in
Maximum Pressure - Steam: Not Rated
Connection Type: True Union Socket/NPT
Media Temp. Range: 34 Degrees F to 140 Degrees F
Mounting Orientation: Vertical, Horizontal
Cracking Pressure: 3 psi
Seal Material: EPDM
About the Item
| Specification Name | Specification Value |
|---|---|
| SKU | 5AAR8 |
| BRAND | HAYWARD |
| CATEGORY | Plumbing |
| MPN | TC10050STE |
| UPC | |
| COUNTRY OF ORIGIN | US |
