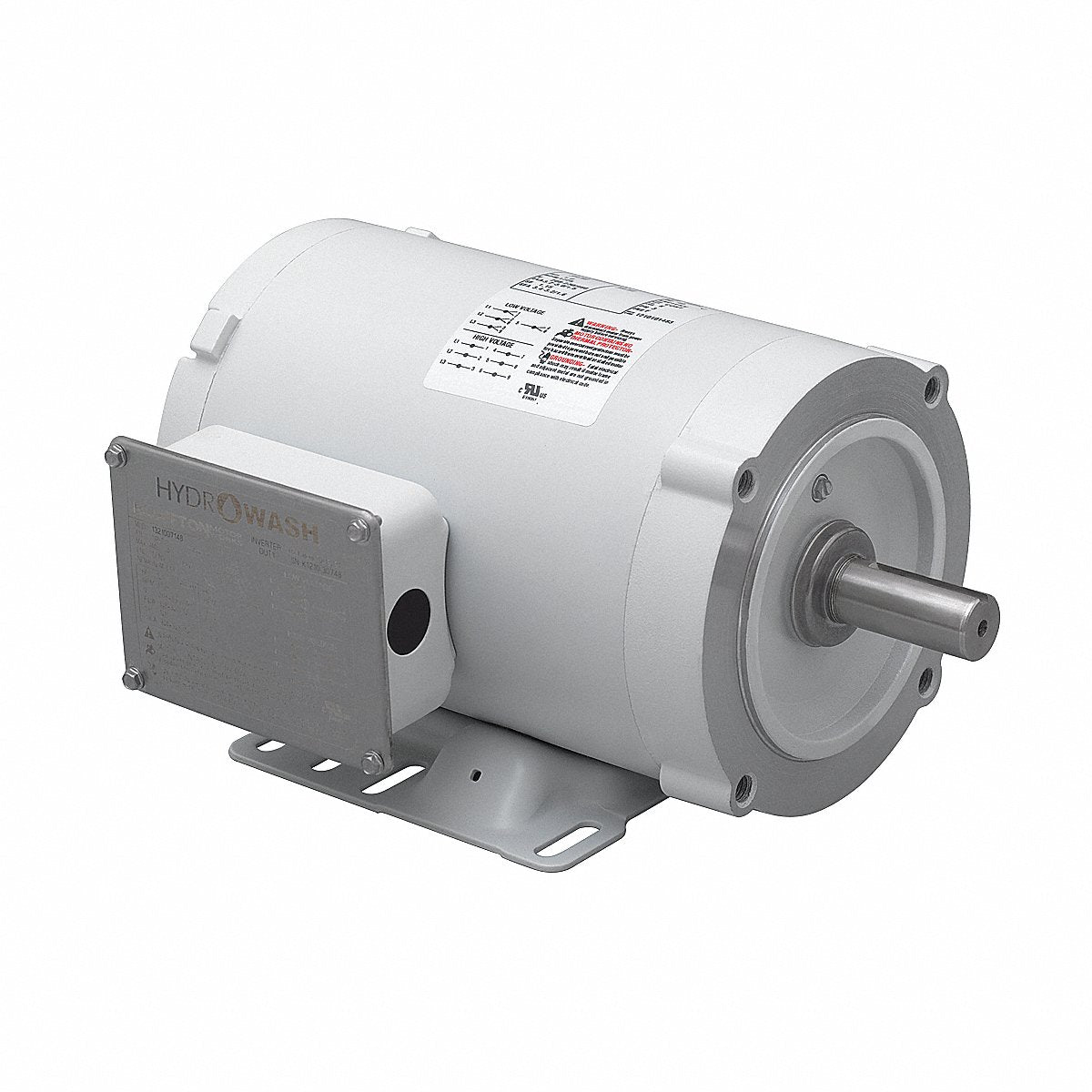

Hydrowash Washdown Motor, 1 hp, 1800 RPM, Frame 56C, 230/460 VAC (1321007143)

HP: 1 hp

Usable @ 208V: Not Usable at 208V, No

Motor Design: Three-Phase

Motor Service Factor: 1.15

Hz: 60 Hz

Nominal Voltage: 230/460V AC

Phase: Three

Voltage Compatibility: 230/460V AC, 208-230/460V AC, 208-220/440V AC, 200-230/460V AC, 200-230/440V AC

Manufacturer Part Number: 1321007143

Motor Application: General Purpose

Motor Shaft Rotation: CW/CCW

Nameplate RPM: 1,800 RPM

Motor Thermal Protection: None

Full Load Amps: 3.0/1.5 A

Frame: 56C

Frame Finish: Painted Epoxy Coated, Epoxy-Coated

Ins. Class: F

No. of Speeds: 1

Voltage: 230/460V AC

Motor Mounting Type: C-Face, Rigid Base

RPM Range: 1,701-1,800, 1,400 - 1,800

Motor Enclosure Design: Totally Enclosed Non-Ventilated
