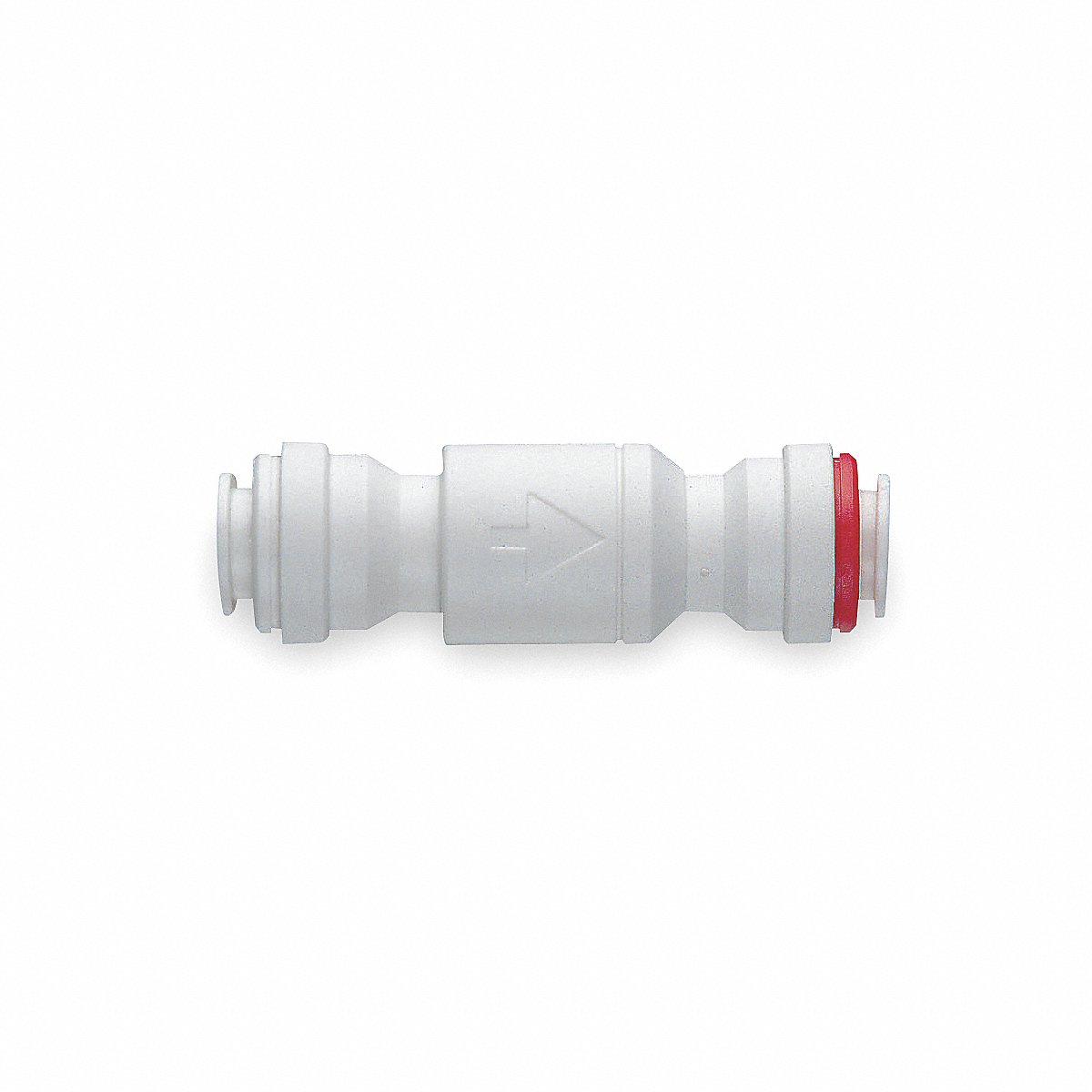

John Guest Check Valve (1/4SCV-PK)

Maximum Pressure - Steam: Not Rated

Check Mechanism Material: Stainless Steel

For Media: Potable Water, Foodstuffs, Purification, Water Treatment, Intermittent Hot Water

Silent Check: Standard

Seal Material: Buna-N

3-A Standard Compliance: Not Rated

Media Temp. Range: 1 Degrees C to 65 Degrees C

Mounting Orientation: Vertical, Horizontal

Maximum Pressure - Operating: 10 bar

Valve Body Style: Inline

Body Material: Acetal

NSF Certifications for Food and Drinking Water: NSF 51, NSF 61

Cracking Pressure: 0.3 psi

Nominal Valve Size: 1/4 in

Seat Material: EPDM

Connection Type: Push x Push
