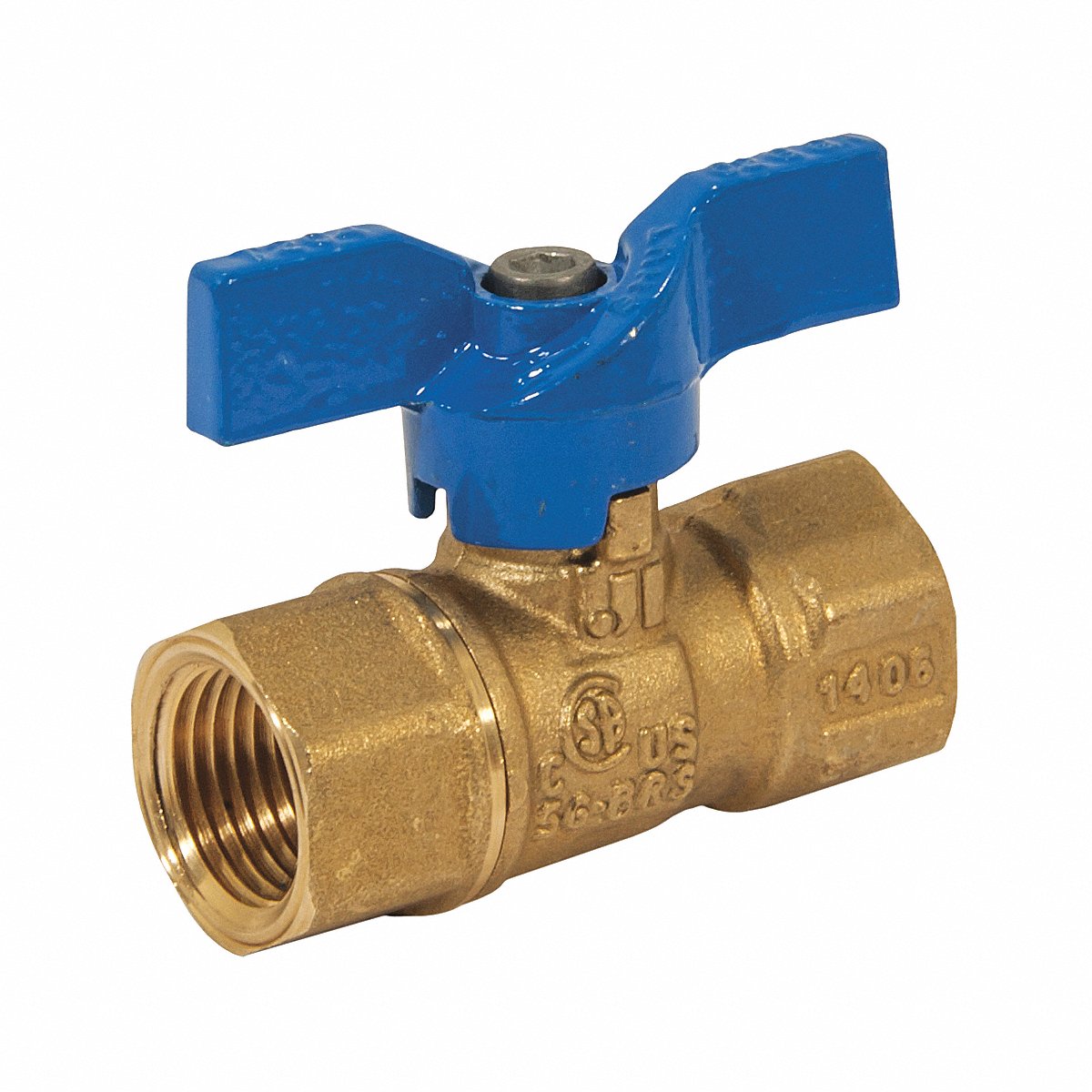

Jomar Valve Manual 2-Way Ball Valve, Brass, IPS (101-403)

Ball Port Style: Standard Port

Handle Material: Aluminum

Maximum Pressure - Steam: 0 psi

Valve Body Style: Straight

Standards: ANSI B1.20.1, ANSI Z21.15, ASME B16.44, CGA CR91, UL Listed, MSS SP-110, CSA

Color - Valve Handle: Yellow

Ball Material: Chrome-Plated Brass

Media Temp. Range: -40 Degrees F to 450 Degrees F

Vented Ball Valve: Non-Vented

Seat Material: PTFE

Valve Construction: Two-Piece

Body Material: Brass

Coefficient of Volume (Cv): 36

Overall Length: 2.4 in

For Media: Gas

Vacuum Service Rating: 29 in Hg

Valve Ways: 2-Way

Maximum Pressure - Combustible Gas: Not Rated

Stem Material: Brass

Maximum Pressure - Operating: 600 psi

Seal Material: FKM

3-A Standard Compliance: Not Rated

Nominal Valve Size: 1/2 in

Handle: Locking Tee

Connection Type: FIP x FIP
