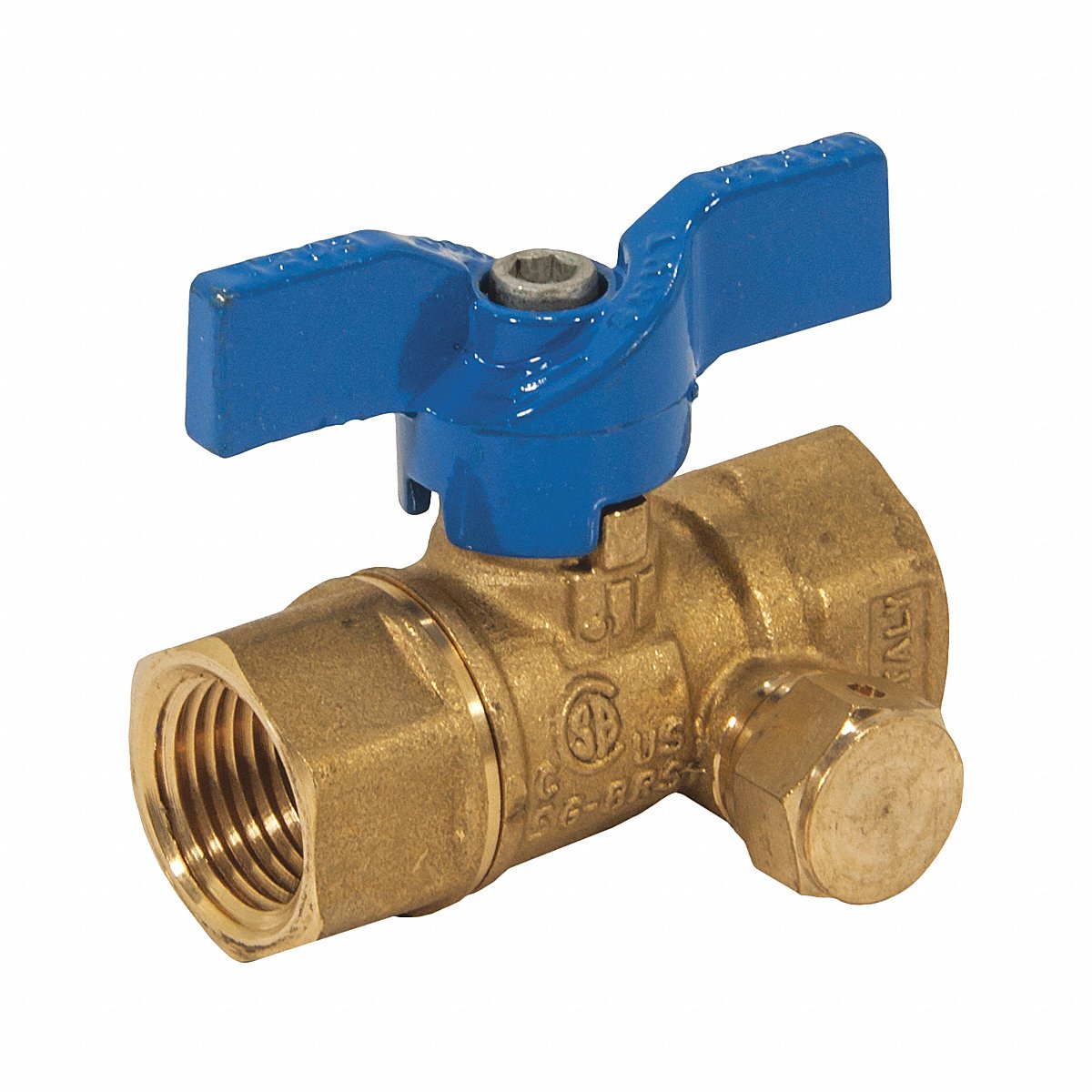

Jomar Valve Manual 2-Way Ball Valve, Brass, IPS (102-303)

Handle: Locking Tee

Standards: ANSI B1.20.1, ANSI Z21.15, ASME B16.44, CGA CR91, UL Listed, MSS SP-110, CSA

Body Material: Brass

Seal Material: FKM

Ball Port Style: Standard Port

Valve Ways: 2-Way

Nominal Valve Size: 1/2 in

Connection Type: FIP x FIP

Stem Material: Brass

Handle Material: Aluminum

Maximum Pressure - Combustible Gas: Not Rated

Ball Material: Chrome-Plated Brass

Media Temp. Range: -40 Degrees F to 450 Degrees F

Overall Length: 2.45 in

Seat Material: PTFE

Color - Valve Handle: Blue

For Media: Gas

Vacuum Service Rating: 29 in Hg

3-A Standard Compliance: Not Rated

Maximum Pressure - Steam: 0 psi

Maximum Pressure - Operating: 600 psi

Vented Ball Valve: Non-Vented

Valve Body Style: Straight

Coefficient of Volume (Cv): 36

Valve Construction: Two-Piece
