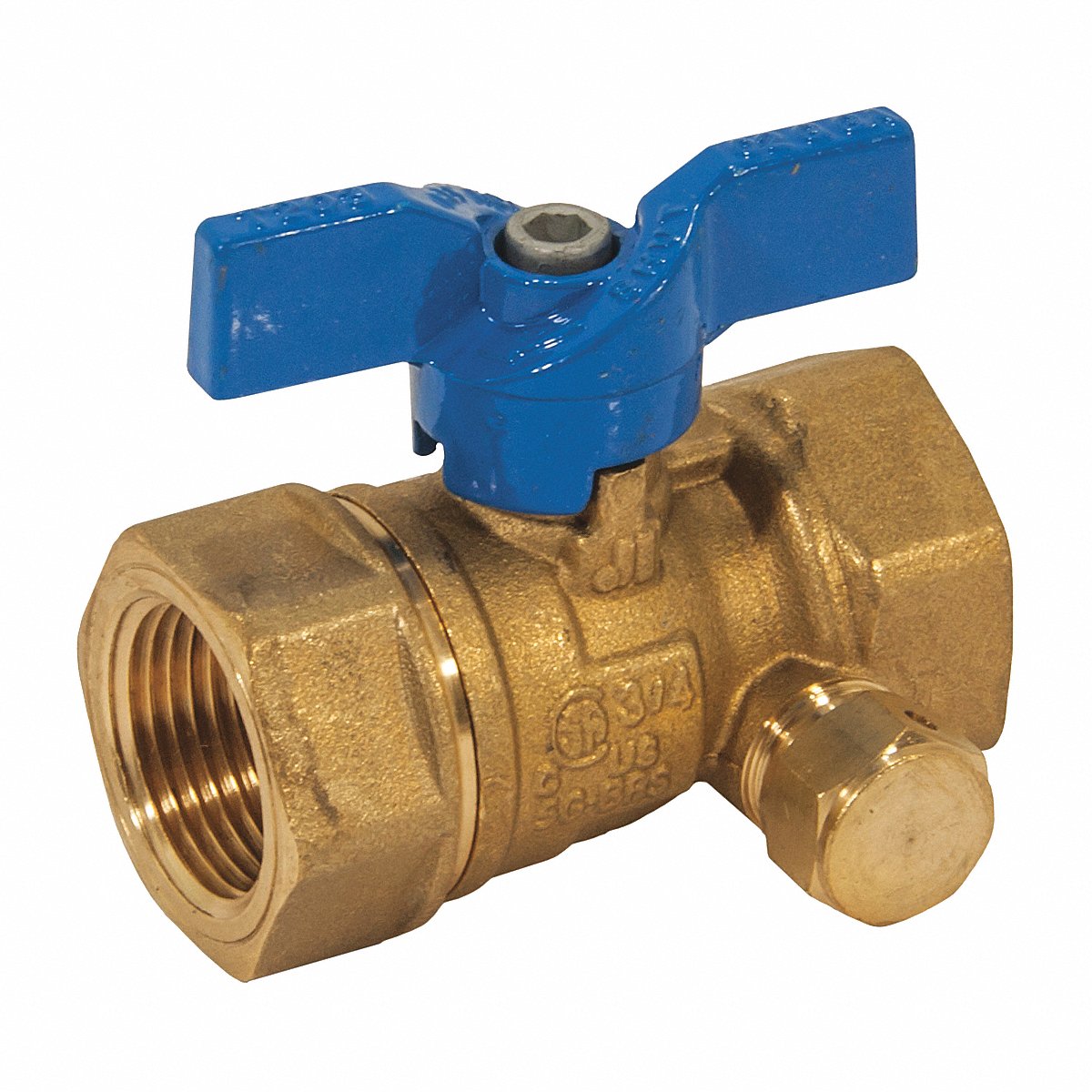

Jomar Valve Manual 2-Way Ball Valve, Brass, IPS (102-304)

Media Temp. Range: -40 Degrees F to 450 Degrees F

Handle: Locking Tee

Ball Material: Chrome-Plated Brass

Vacuum Service Rating: 29 in Hg

Coefficient of Volume (Cv): 36

Connection Type: FIP x FIP

Color - Valve Handle: Blue

Vented Ball Valve: Non-Vented

Maximum Pressure - Operating: 600 psi

Handle Material: Aluminum

Nominal Valve Size: 3/4 in

Valve Construction: Two-Piece

For Media: Gas

Standards: ANSI B1.20.1, ANSI Z21.15, ASME B16.44, UL Listed, CGA CR91, MSS SP-110, CSA

Maximum Pressure - Steam: 0 psi

Overall Length: 2.63 in

Body Material: Brass

Seal Material: FKM

Maximum Pressure - Combustible Gas: Not Rated

Seat Material: PTFE

Ball Port Style: Standard Port

Valve Ways: 2-Way

Valve Body Style: Straight

3-A Standard Compliance: Not Rated

Stem Material: Brass
