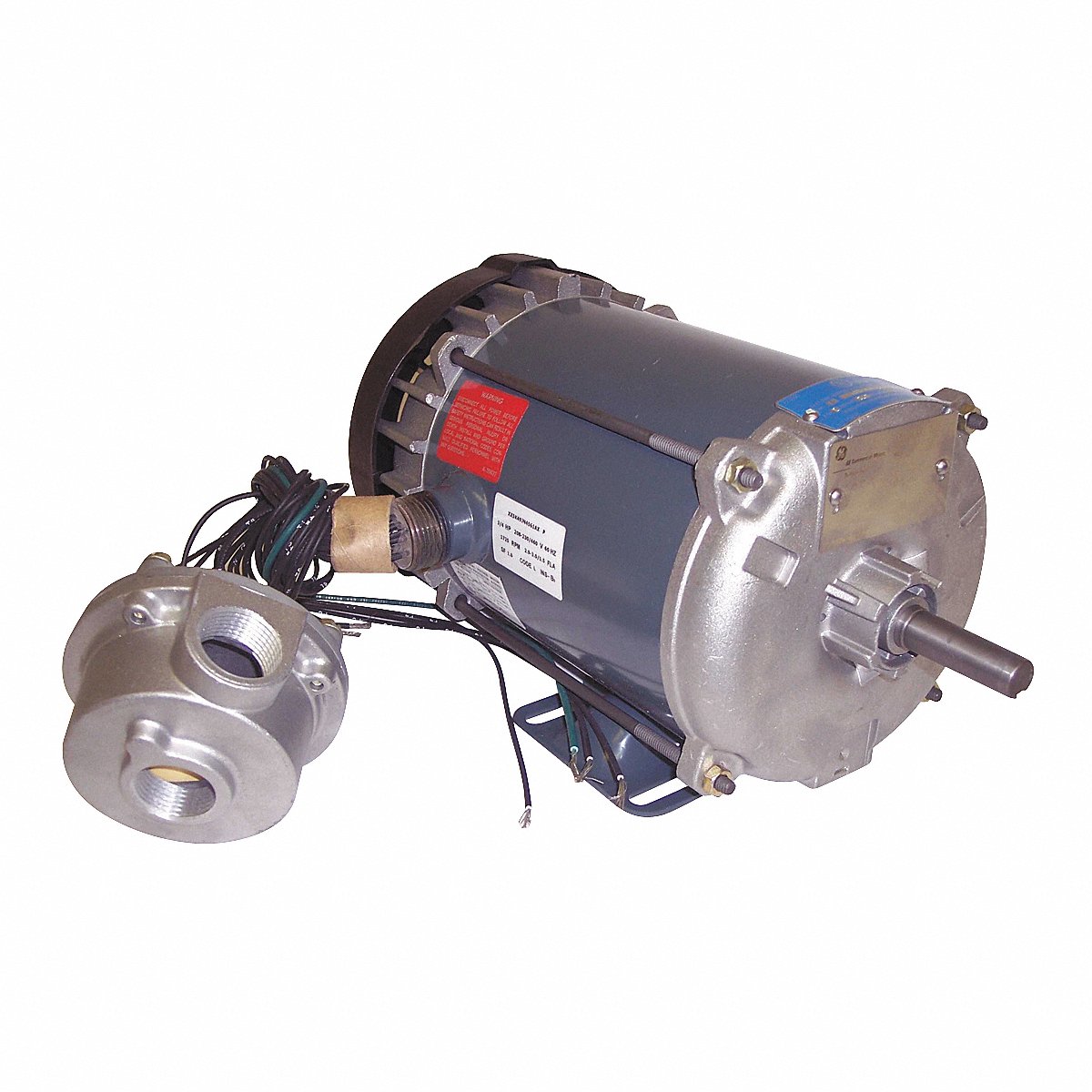

Leeson Hazardouslocationmotor, 1/2Hp, 1140Rpm (056T11G15517)

Usable @ 208V: Yes, Usable at 208V

Motor Mounting Type: Rigid Base

Ins. Class: B

Voltage Compatibility: 220/460V AC, 230/460V AC, 460V AC, 208-230/460V AC, 240V AC, 208-220/440V AC, 208-240V AC, 208V AC, 208-230V AC, 220-230/460V AC, 230V AC

Motor Service Factor: 1.15

Motor Application: Hazardous Location

Motor Thermal Protection: Auto

Nominal Voltage: 208-230/460V AC

HP: 1/2 hp

Hazardous Location Class: Class I, Class II

Hazardous Location Group: Group C, Group G, Group F, Group E, Group D

Phase: Three

Full Load Amps: 2.4-2.7/1.3 A

Motor Shaft Rotation: CW/CCW

Voltage: 208-230/460V AC

Motor Enclosure Design: Totally Enclosed Fan Cooled

Manufacturer Part Number: 056T11G15517

RPM Range: 1,000 - 1,200, 1,101-1,200

Frame: 56

Motor Design: Three-Phase

No. of Speeds: 1

Hz: 60 Hz

Hazardous Location Division: Division I
