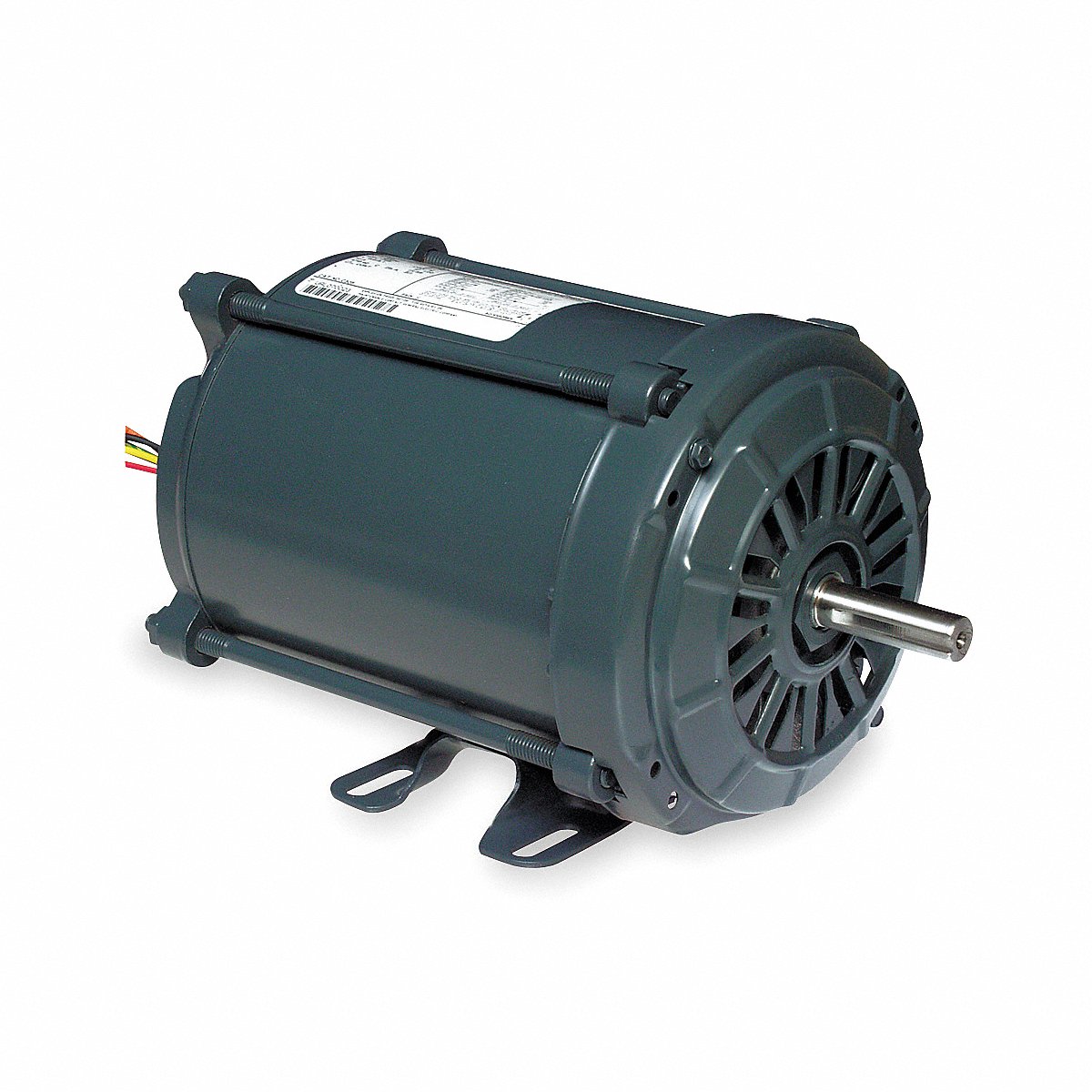

Leeson HazardousLocationMotor 1/3 hp 1725 RPM (056T17E15516)

Frame: 56

Motor Thermal Protection: Auto

Motor Application: Hazardous Location

Voltage: 230V AC, 460V AC

Nameplate RPM: 1,725 RPM

Hazardous Location Class: Class I, Class II

Manufacturer Part Number: 056T17E15516

No. of Speeds: 1

Motor Shaft Rotation: CW/CCW

Hazardous Location Group: Group C, Group G, Group F, Group E, Group D

Motor Enclosure Design: Totally Enclosed Non-Ventilated

HP: 1/3 hp

Motor Service Factor: 1

Usable @ 208V: Not Usable at 208V, No

Phase: Three

Full Load Amps: 1.2/0.60 A

Hz: 60/50 Hz

Nominal Voltage: 230V AC, 460V AC

Motor Mounting Type: Rigid Base

RPM Range: 1,701-1,800, 1,400 - 1,800

Voltage Compatibility: 230/460V AC, 208-230/460V AC, 208-220/440V AC, 200-230/460V AC, 200-230/440V AC

Hazardous Location Division: Division I

Ins. Class: B

Motor Design: Three-Phase
