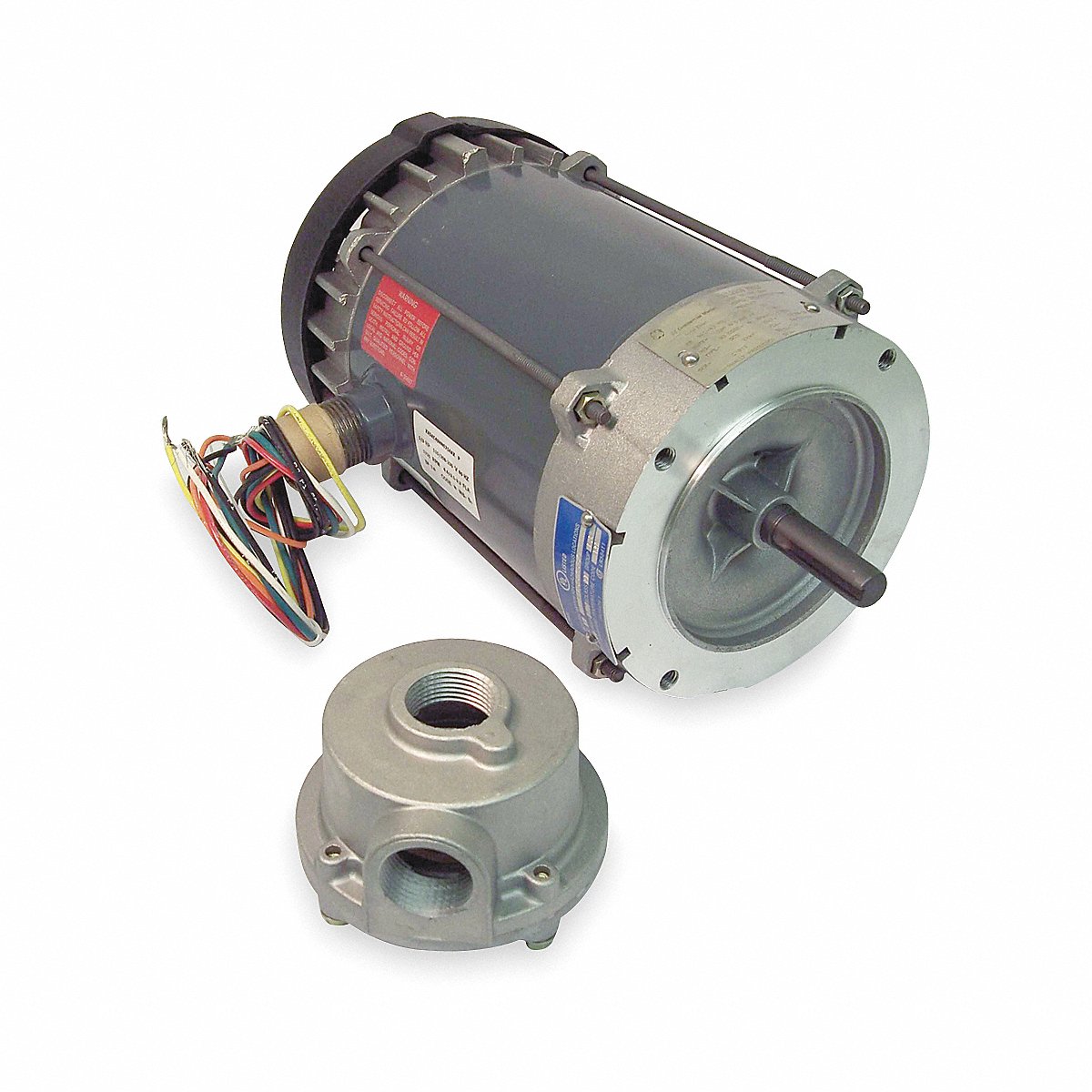

Leeson HazardousLocationMotor 3/4 hp 1725 RPM (056T17G15537)

Motor Service Factor: 1

Motor Mounting Type: C-Face

Motor Enclosure Design: Totally Enclosed Fan Cooled

Hz: 60/50 Hz

Motor Thermal Protection: Auto

Nameplate RPM: 1,725 RPM

HP: 3/4 hp

Hazardous Location Class: Class I, Class II

Hazardous Location Group: Group C, Group G, Group F, Group E, Group D

Manufacturer Part Number: 056T17G15537

Motor Shaft Rotation: CW/CCW

Hazardous Location Division: Division I

No. of Speeds: 1

Ins. Class: B

RPM Range: 1,701-1,800, 1,400 - 1,800

Usable @ 208V: Not Usable at 208V, No

Phase: Three

Nominal Voltage: 230V AC, 460V AC

Voltage Compatibility: 230/460V AC, 208-230/460V AC, 208-220/440V AC, 200-230/460V AC, 200-230/440V AC

Full Load Amps: 3.0/1.5 A

Motor Application: Hazardous Location

Frame: 56C

Voltage: 230V AC, 460V AC

Motor Design: Three-Phase
