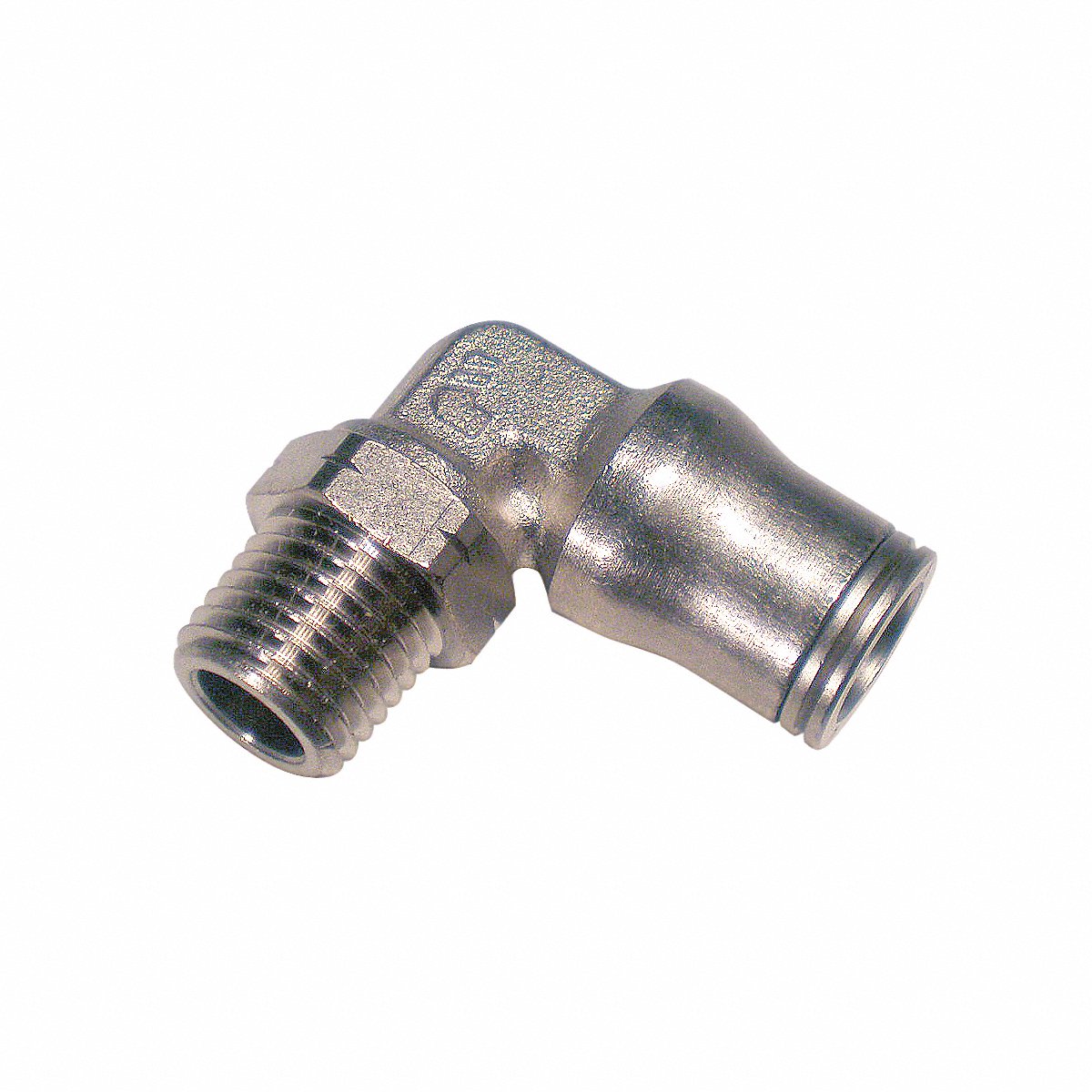

Legris 90 Swivel Elbow 12 mm x 13/16 (3609 12 13)

Operating Pressure - Maximum: 435 psi

Compatible Tube Material: Polyethylene, Fluoropolymer, Semi-Rigid Nylon, Stainless Steel, Polyurethane, Copper

End Connection Type: Threaded, Push-to-Connect

For Media Type: Food, Oils, Non-Potable Water, Detergents, Gases

Series: Legris

Pipe Size: 1/4 in

Connector Type: Adapter

For Tube OD: 12 mm

Standards: ASTM B733-04, USDA NSF H1, DI: 97/23/EC (PED), ISO 14743, DI: 94/9/EC (ATEX), UL94 V-0, 2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), 21 CFR (FDA Approved), 1935/2004/EC

Application: Lubrication

Fitting Shape: Elbow

Thread Type: BSP

System of Measurement: Imperial/Metric

Fitting Material: Brass
