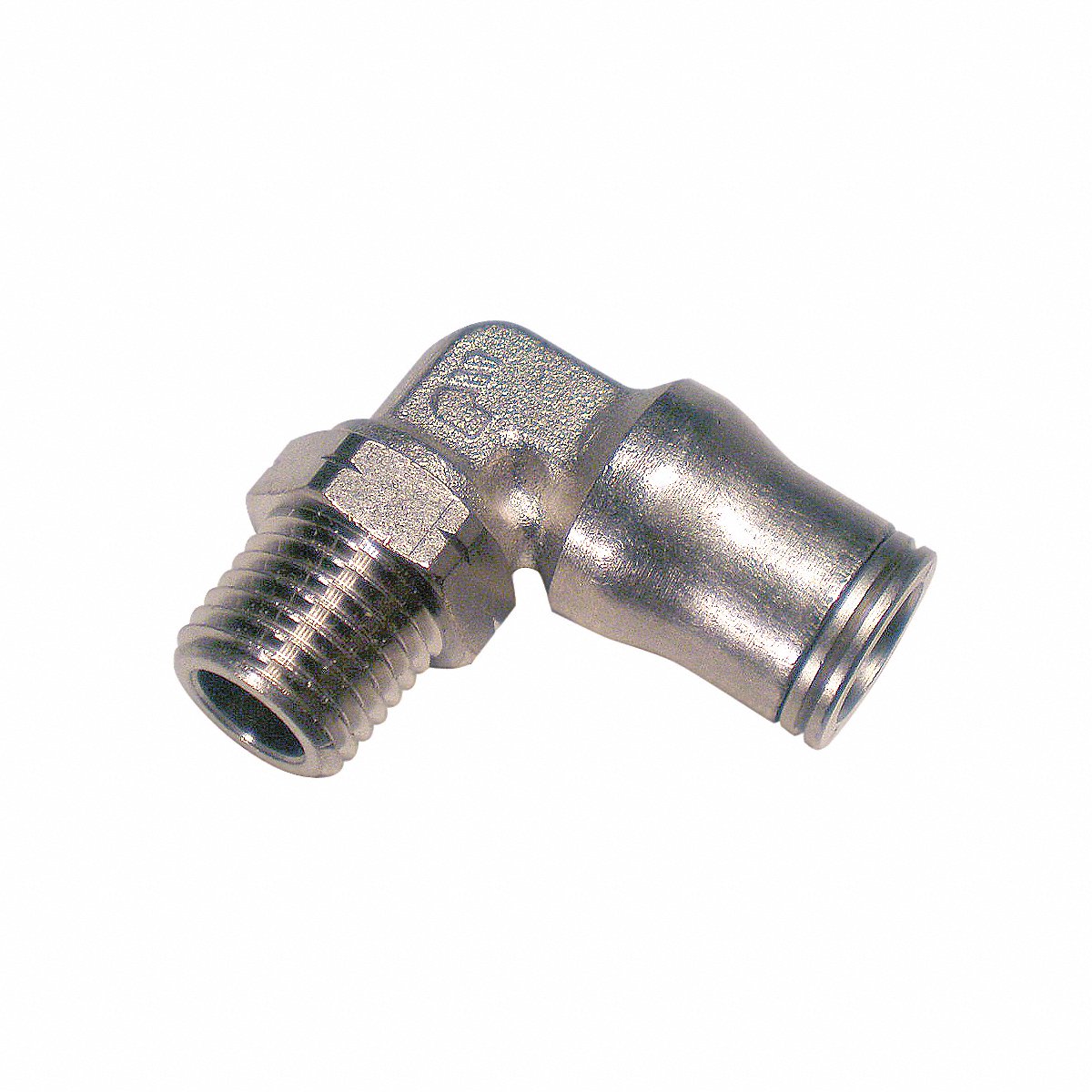

Legris 90 Swivel Elbow Tube To BSPT 5/32 x 1/4 (3609 04 13)

Connector Type: Adapter

End Connection Type: Threaded, Push-to-Connect

Standards: ASTM B733-04, USDA NSF H1, DI: 97/23/EC (PED), ISO 14743, DI: 94/9/EC (ATEX), UL94 V-0, 2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), 21 CFR (FDA Approved), 1935/2004/EC

Pipe Size: 1/4 in

Thread Type: BSP

Fitting Material: Brass

For Media Type: Food, Oils, Non-Potable Water, Detergents, Gases

Series: Legris

For Tube OD: 4 mm, 14 mm

Operating Pressure - Maximum: 435 psi

System of Measurement: Imperial/Metric

Application: Lubrication

Compatible Tube Material: Polyethylene, Fluoropolymer, Semi-Rigid Nylon, Stainless Steel, Polyurethane, Copper

Release Ring Material: FKM

Fitting Shape: Elbow
