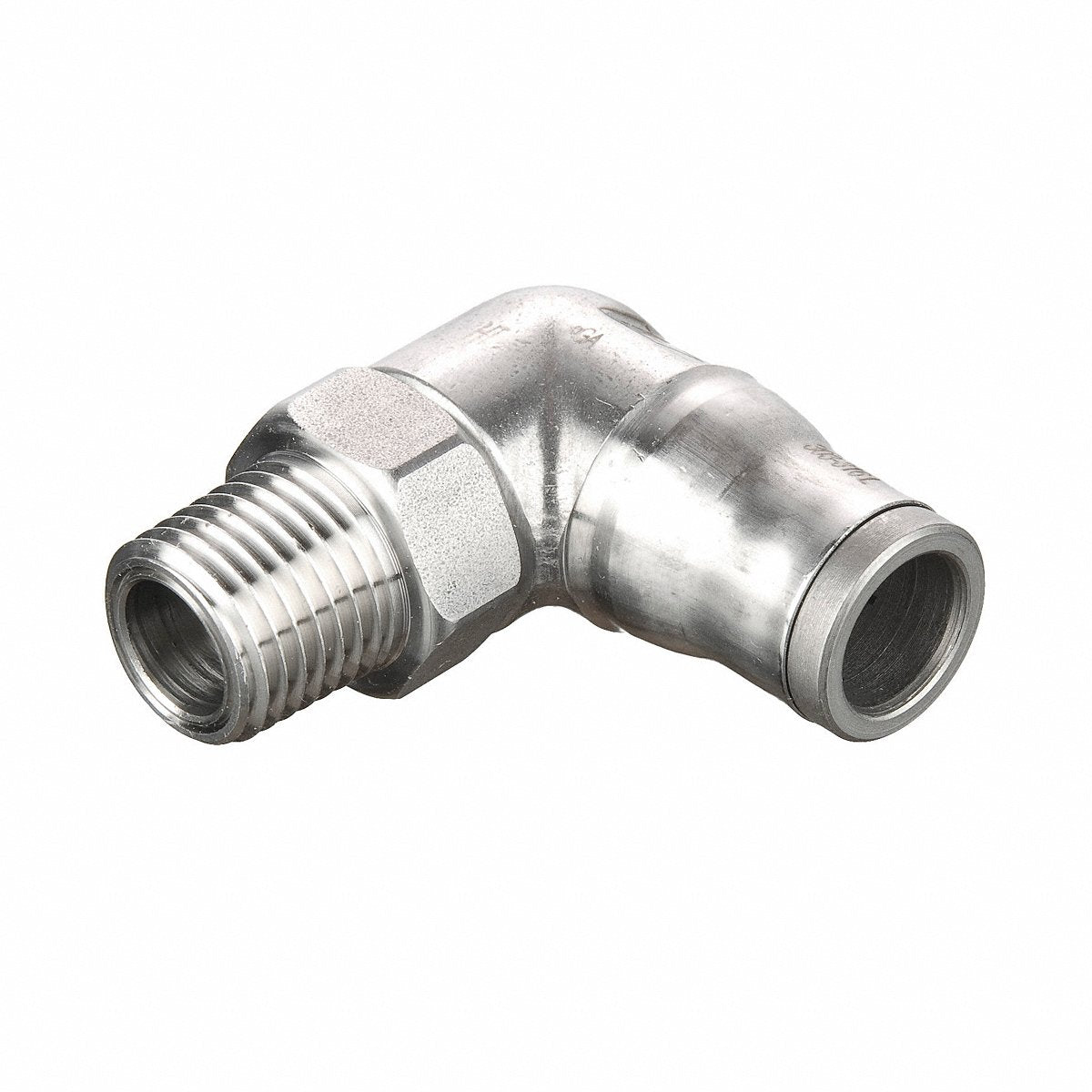

Legris All Metal Push to Connect Fitting (3889 04 13)

Series: Legris

Standards: USDA NSF H1, DI: 97/23/EC (PED), ISO 14743, DI: 94/9/EC (ATEX), UL94 V-0, 2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS), 21 CFR (FDA Approved), 1935/2004/EC

For Media Type: Food, Air, Beverages

Fitting Shape: Elbow

System of Measurement: Metric

Thread Type: BSP

Operating Pressure - Maximum: 435 psi

End Connection Type: Threaded, Push-to-Connect

Fitting Material: Stainless Steel

For Tube OD: 4 mm, 14 mm

Compatible Tube Material: Polyethylene, Fluoropolymer, Semi-Rigid Nylon, Stainless Steel, Polyurethane, Copper

Connector Type: Adapter
