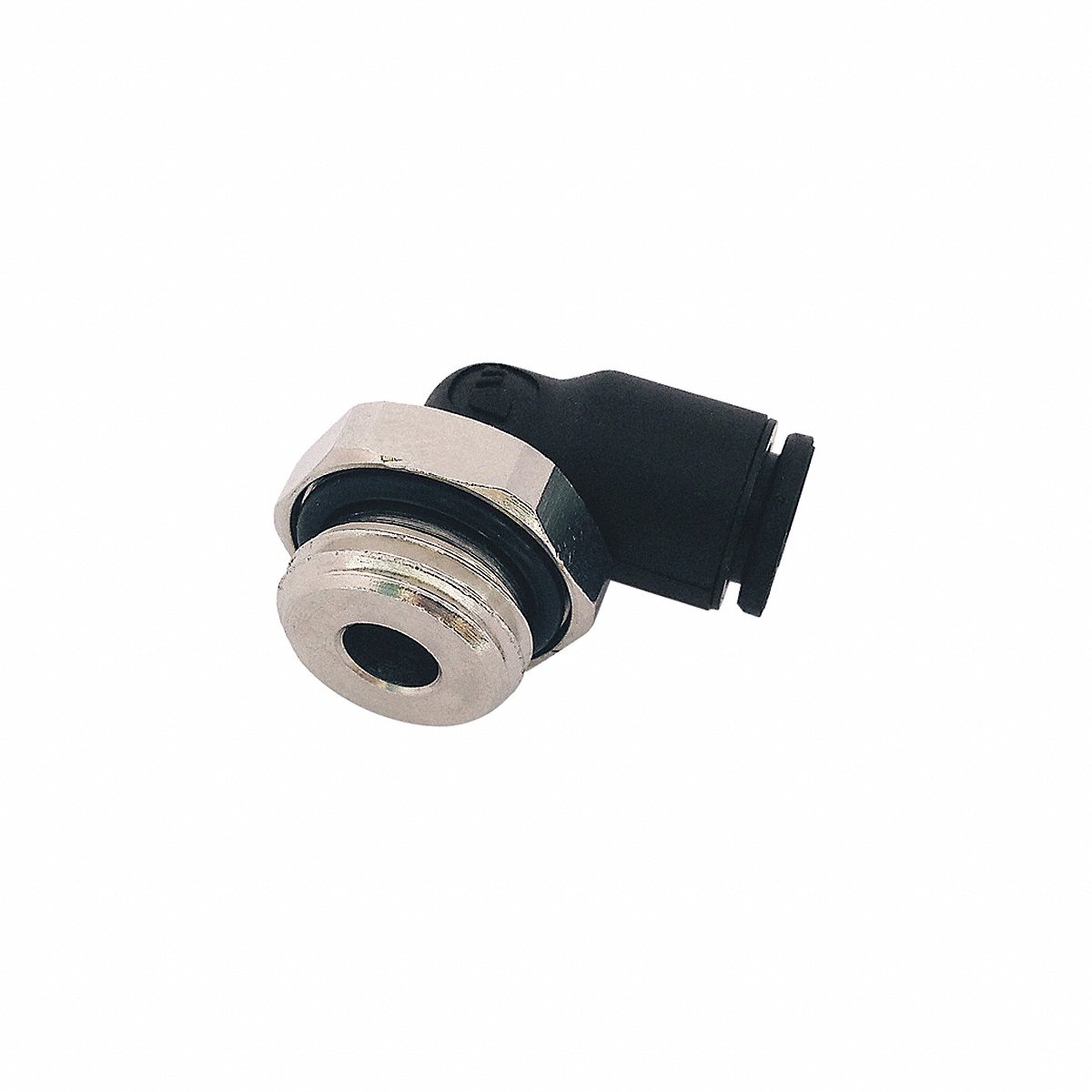

Legris Male Elbow Thread Size 10-32 UNF PK10 (3109 53 20)

Application: Vacuum

End Connection Type: Push-to-Connect

Fitting Material: Fiberglass-Reinforced Nylon

For Tube OD: 1/8 in

Connector Type: Adapter

For Media Type: Air, Coolants, Gases

Operating Pressure - Maximum: 290 psi

Thread Type: UNF

Series: Legris

Fitting Shape: Elbow

Compatible Tube Material: Polyethylene, Fluoropolymer, Semi-Rigid Nylon, Polyurethane, Nylon

Standards: DI: 97/23/EC (PED), ISO 14743, 2011/65/EC, 1907/2006 REACH, 2002/95/EC (RoHS)

Release Type: Button
