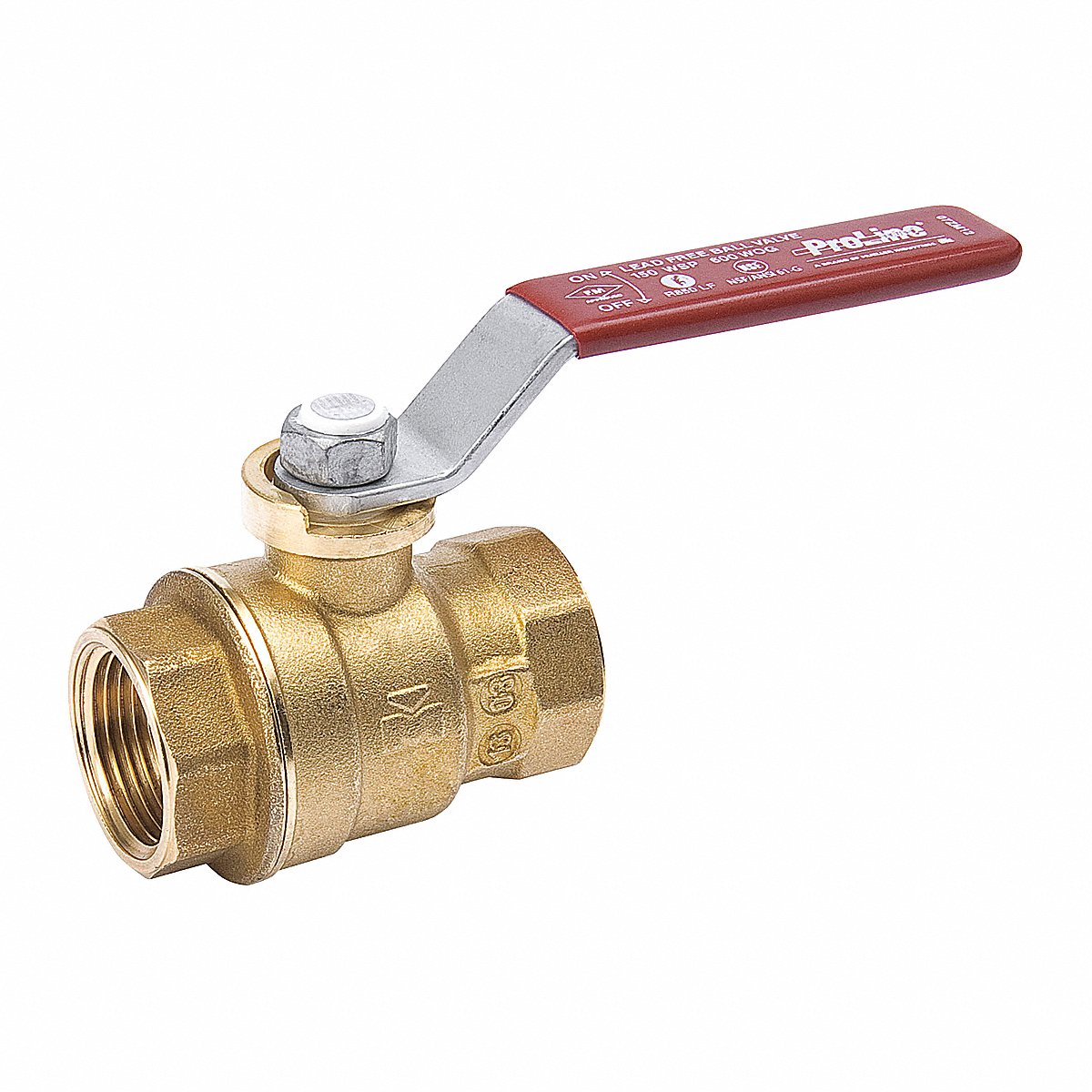

Manual 2-Way Ball Valve IPS Brass (107-401NL)

Valve Body Style: Straight

Nominal Valve Size: 1/4 in

Seal Material: PTFE

Color - Valve Handle: Red

Vented Ball Valve: Non-Vented

Connection Type: FIP x FIP

Handle: Lever

Handle Material: Steel

Ball Material: 316 Stainless Steel

Maximum Pressure - Steam: 600 psi

Ball Port Style: Full Port

Valve Construction: Two-Piece

Maximum Pressure - Operating: 600 psi

Standards: YQNZ, YRPV, ANSI B1.20.1, _G, FM 1140, MHKZ, ANSI Z21.15, ASME B16.44, YSDT, YRBX, ASME B16.33, CSA

For Media: Water, Steam, Combustible Gases

Stem Material: Forged Brass

Seat Material: PTFE

Vacuum Service Rating: Not Rated

3-A Standard Compliance: Not Rated

Body Material: Brass

Overall Length: 1.7 in

Valve Ways: 2-Way

NSF Certifications for Food and Drinking Water: NSF 61

Maximum Pressure - Combustible Gas: Not Rated

Media Temp. Range: -20 Degrees F to 248 Degrees F

Coefficient of Volume (Cv): 7.7
