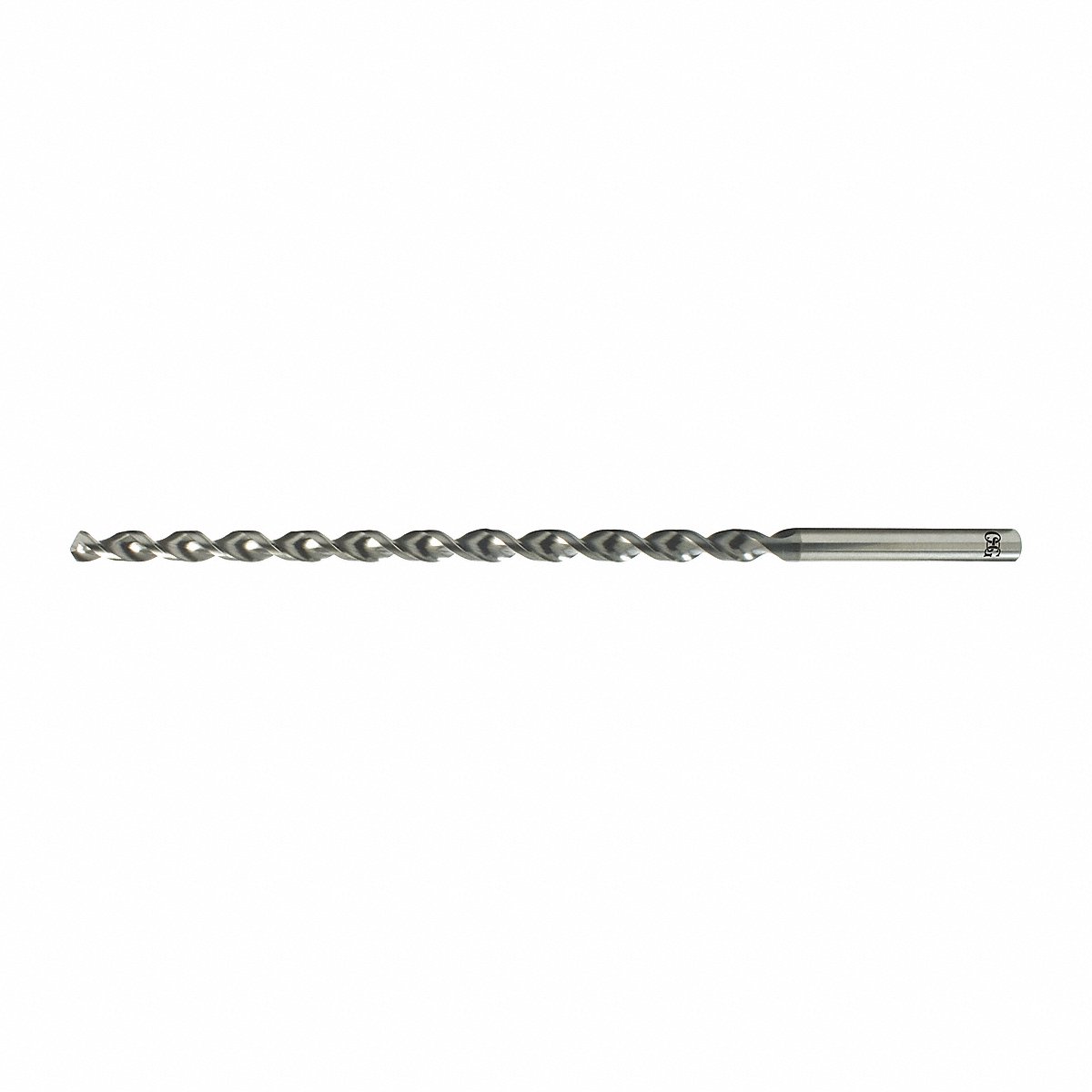

OSG Extra Long Drill Bit 1/4 in Cobalt (17521411)

Size Decimal Equivalent: 0.2500

List Number: 1770

Drill Length Class: Extended-Length

Overall Length: 200 mm

Point Type: Web-Thinned

Shank Diameter: 1/4 in

Coolant Fed: Non-Coolant Through

Cutting Direction: Right Hand

Standards: Not Rated

Number of Flutes: 2

Drill Bit Point Angle: 120 Degrees

Finish/Coating: WXL

Flute Length: 146 mm

Drill Bit Size: 1/4 in

ISO Material Group: H, P, N, M

Material Application: Tool and Die Steel, Titanium, Steel, Hardened Steel, Aluminum, Cast Iron, Stainless Steel

Measurement System: Fractional Inch

Shank Type: Straight

Material: Cobalt

Flute Type: Parabolic
