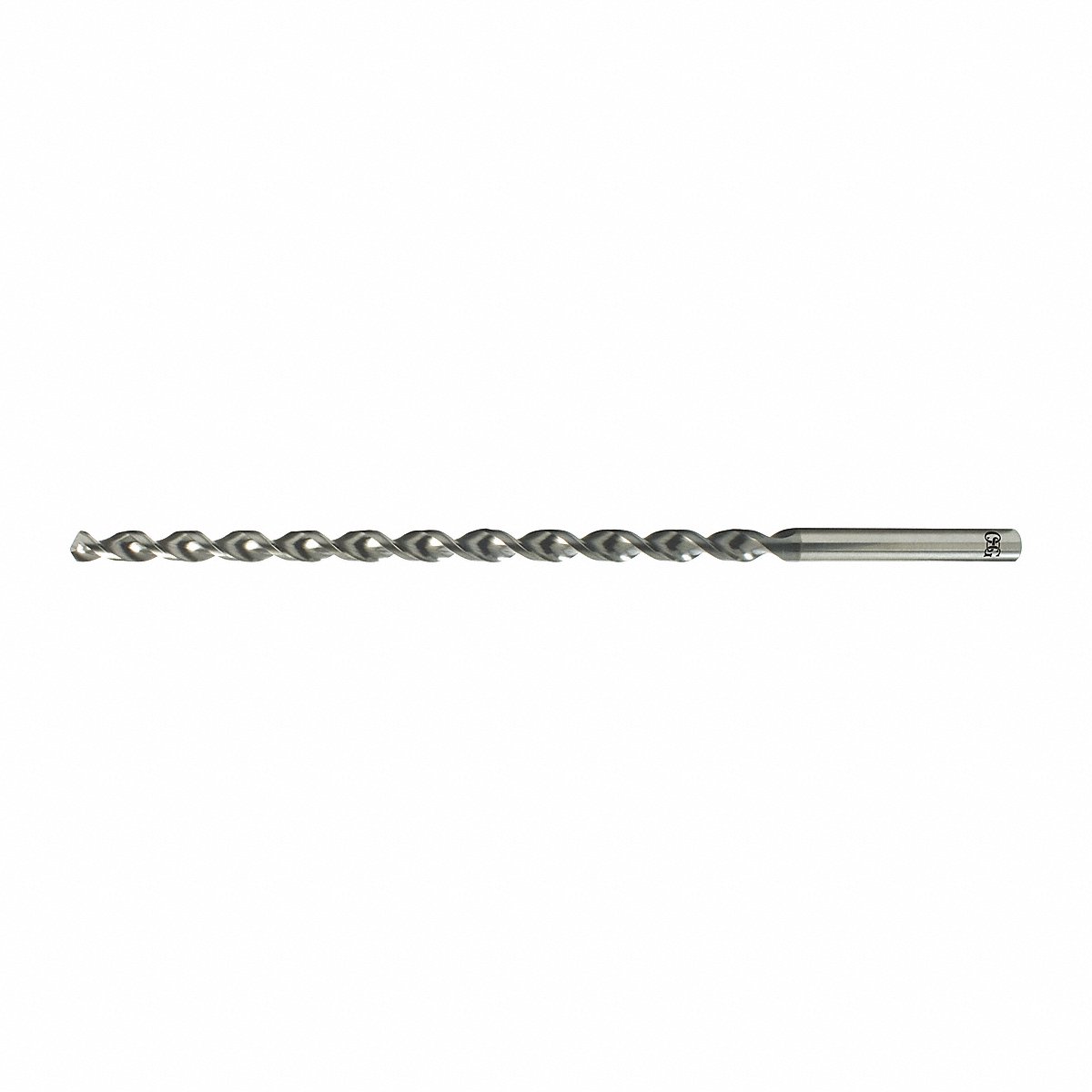

OSG Extra Long Drill Bit 5/16 in Cobalt (17522511)

Name: OSG Extra Long Drill Bit 5/16 in Cobalt (17522511)
Brand: OSG
SKU: 34YX77
Price: 239.04 USD
Availability: InStock

Vendor: OSG Type: Machining

SKU: 34YX77

$239.04 ~~$283.50~~

Ships from Supplier, Call 910-395-1904 for Lead Time

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

Material Application: Tool and Die Steel, Titanium, Steel, Hardened Steel, Aluminum, Cast Iron, Stainless Steel

Shank Type: Straight

Point Type: Web-Thinned

Material: Cobalt

Finish/Coating: WXL

Number of Flutes: 2

Cutting Direction: Right Hand

Drill Length Class: Extended-Length

Overall Length: 255 mm

Drill Bit Size: 5/16 in

Standards: Not Rated

Flute Type: Parabolic

Measurement System: Fractional Inch

ISO Material Group: H, P, N, M

Shank Diameter: 5/16 in

Size Decimal Equivalent: 0.3125

Coolant Fed: Non-Coolant Through

Drill Bit Point Angle: 120 Degrees

Flute Length: 184 mm

List Number: 1770
