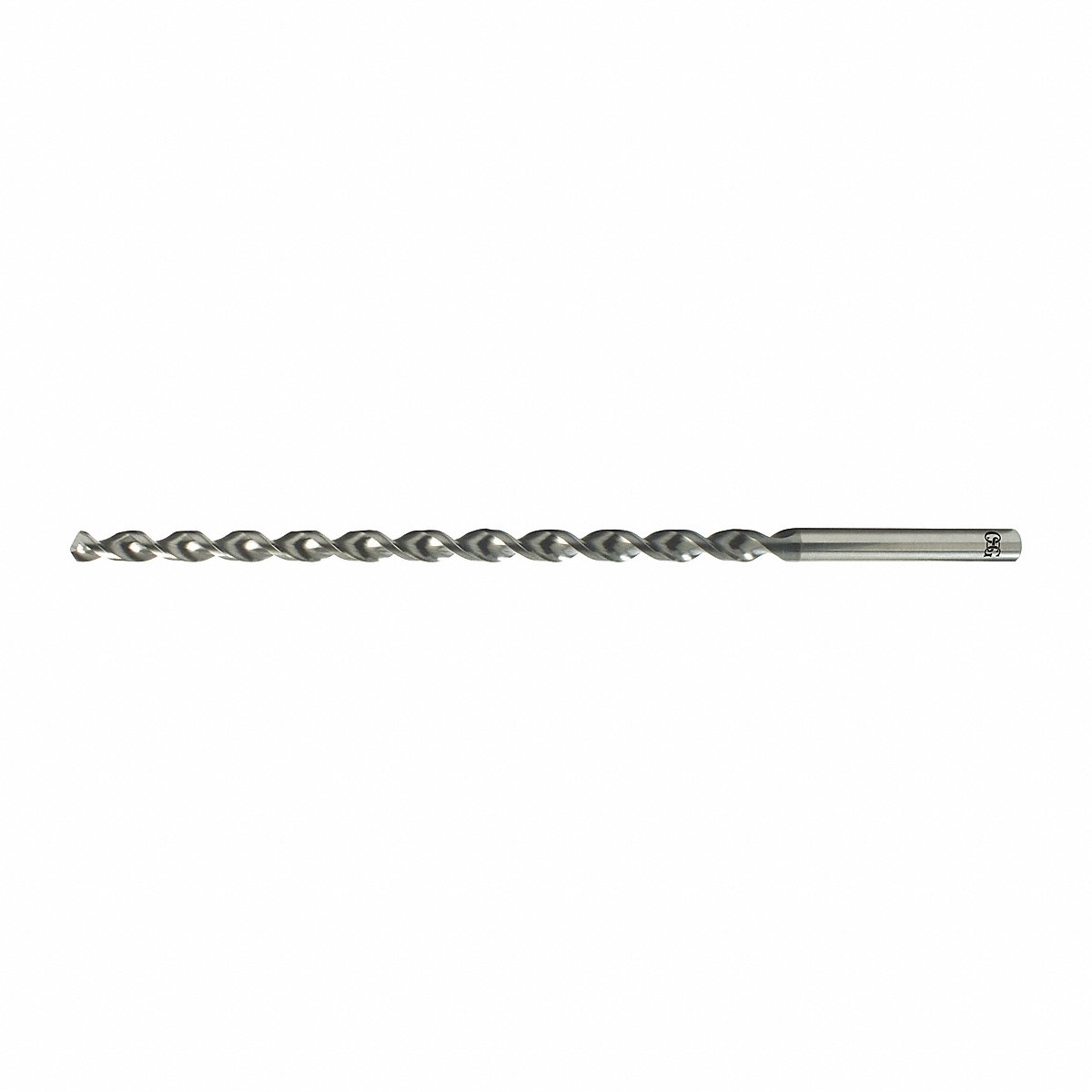

OSG Extra Long Drill Bit 8.5 mm Cobalt (8623285)

Measurement System: Metric

Finish/Coating: WXL

Point Type: Web-Thinned

Flute Type: Parabolic

Shank Type: Straight

Shank Diameter: 8.5 mm

Drill Length Class: Extended-Length

ISO Material Group: H, P, N, M

Standards: Not Rated

Drill Bit Size: 8.5 mm

List Number: 1770

Size Decimal Equivalent: 0.3347

Coolant Fed: Non-Coolant Through

Cutting Direction: Right Hand

Flute Length: 196 mm

Material: Cobalt

Number of Flutes: 2

Drill Bit Point Angle: 120 Degrees

Overall Length: 265 mm

Material Application: Tool and Die Steel, Titanium, Steel, Hardened Steel, Aluminum, Cast Iron, Stainless Steel
