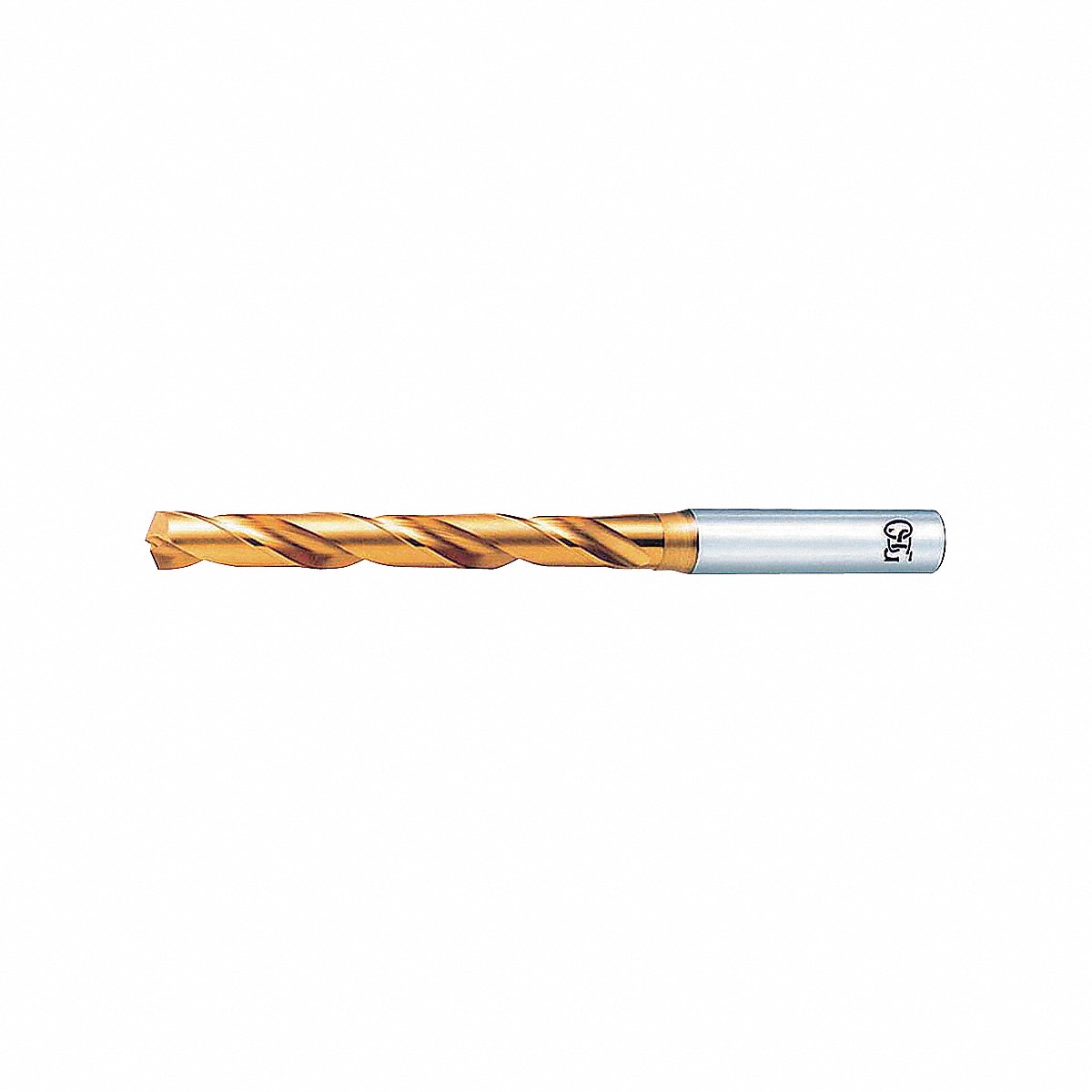

OSG Jobber Length Drill Bit #3 Cobalt (15213005)

Drill Length Class: Jobber-Length

Coolant Fed: Non-Coolant Through

Finish/Coating: TiN

Standards: Not Rated

Material Application: Tool and Die Steel, Steel, Hardened Steel, Aluminum, Cast Iron, Stainless Steel

Helix Type: Regular Spiral

Number of Flutes: 2

Flute Type: Spiral

List Number: 1500

Overall Length: 109 mm

Shank Diameter: 1/4 in

Drill Bit Size: #3

Flute Length: 63 mm

Shank Type: Straight

Size Decimal Equivalent: 0.2130

Measurement System: Wire

Drill Bit Point Angle: 130 Degrees

ISO Material Group: H, P, N, M, K

Material: Cobalt

Cutting Direction: Right Hand

Point Type: Web-Thinned
