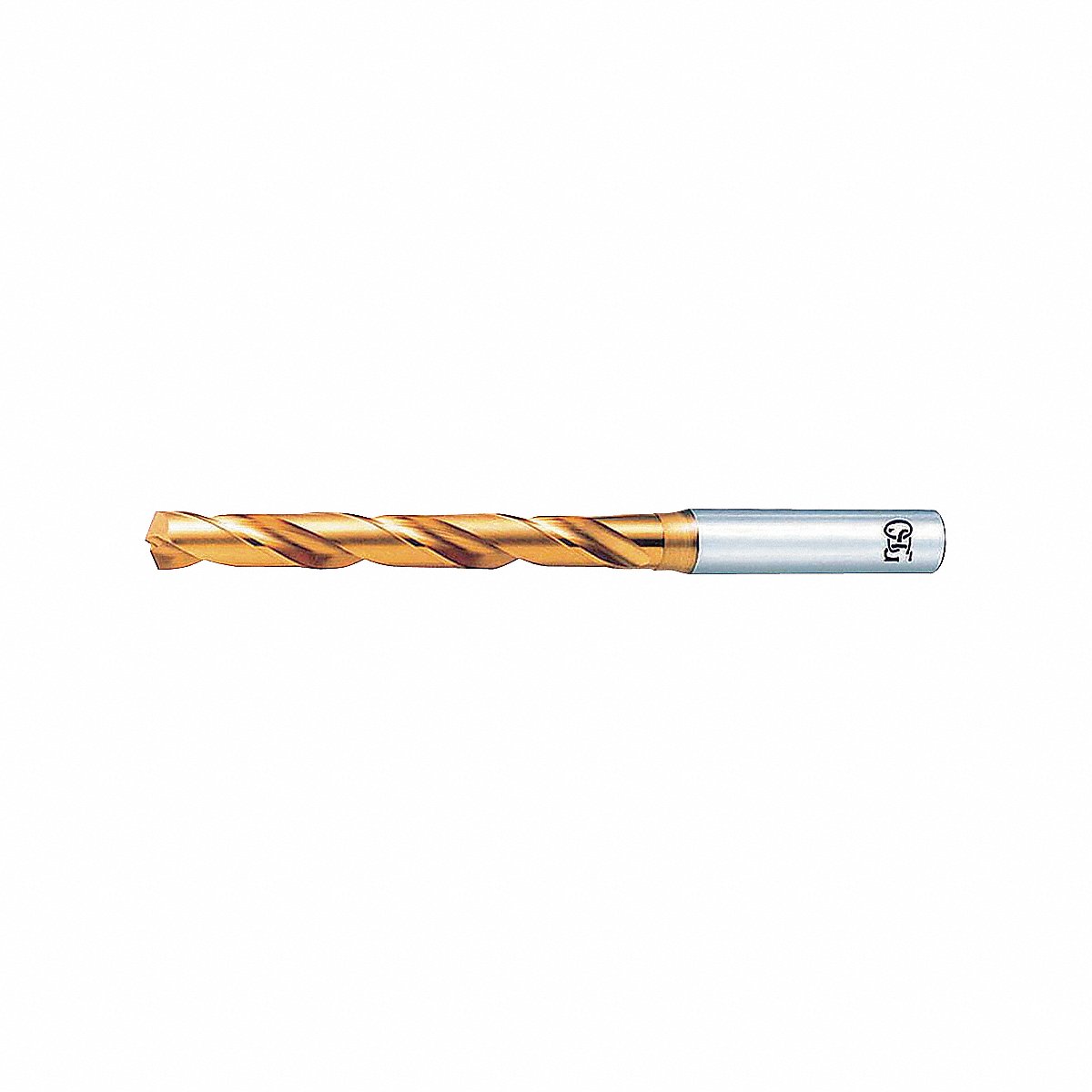

OSG Jobber Length Drill Bit 9/16 in Cobalt (15562505)

Drill Length Class: Jobber-Length

Drill Bit Size: 9/16 in

Finish/Coating: TiN

Shank Diameter: 5/8 in

Cutting Direction: Right Hand

ISO Material Group: H, P, N, M, K

Material Application: Tool and Die Steel, Steel, Hardened Steel, Aluminum, Cast Iron, Stainless Steel

List Number: 1500

Material: Cobalt

Shank Type: Straight

Size Decimal Equivalent: 0.5625

Helix Type: Regular Spiral

Flute Type: Spiral

Measurement System: Fractional Inch

Point Type: Web-Thinned

Overall Length: 7-3/16 in

Flute Length: 122 mm

Coolant Fed: Non-Coolant Through

Drill Bit Point Angle: 130 Degrees

Standards: Not Rated

Number of Flutes: 2
