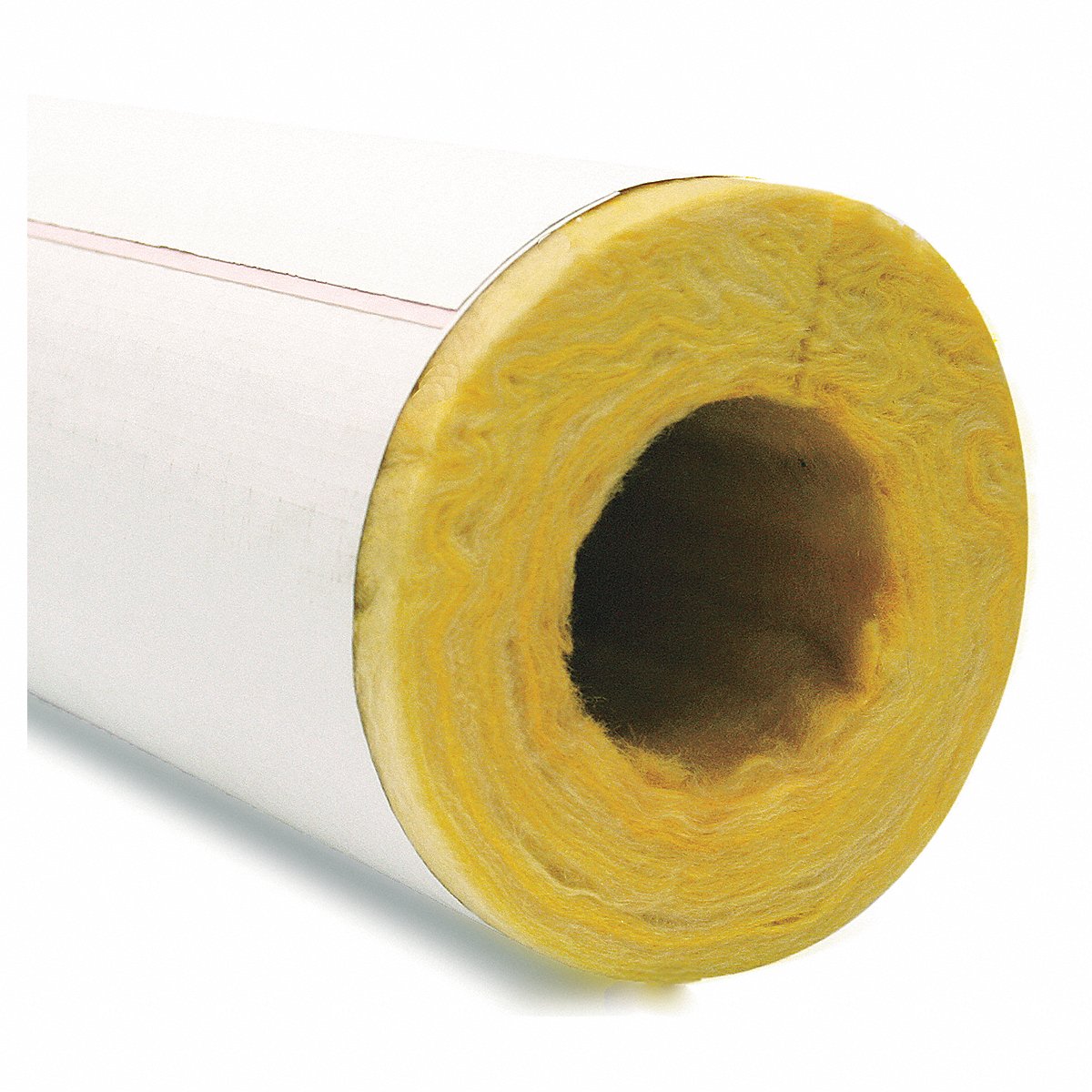

Owens Corning Pipe Insulation ID 2-1/8 Wall Thick 1 (917516)

Overall Length: 3 ft

Form: Tube

For Copper Tube Size: 2-1/8 in

Insulation R-Value: 5.4

Maximum Operating Temperature: 1,000 Degrees F

Installation Style: Slit with Adhesive and Flap

Plenum Rating: Plenum Rated

Minimum Operating Temperature: 0 Degrees F

Standards: ASTM C302, ASTM C547, ASTM C1136 Type 1 Class IV, CAN/ULC S-102-M, ASTM E96, ASTM C795, ASTM C411, CAN/CGSB 51.9 Type 1, Class II, MIL-I-24244C, New York City MEA No. 344-83, U.S. No.164.009, ASTM E84, UL 723, MIL-I-22344D, NFPA 90A

Temperature Rating: High Temperature (900 Degrees F or above)

Material: Fiberglass

Color: Tan

Inside Diameter: 2-5/32 in

Thickness: 1 in

Facing Material: ASJ Facing
