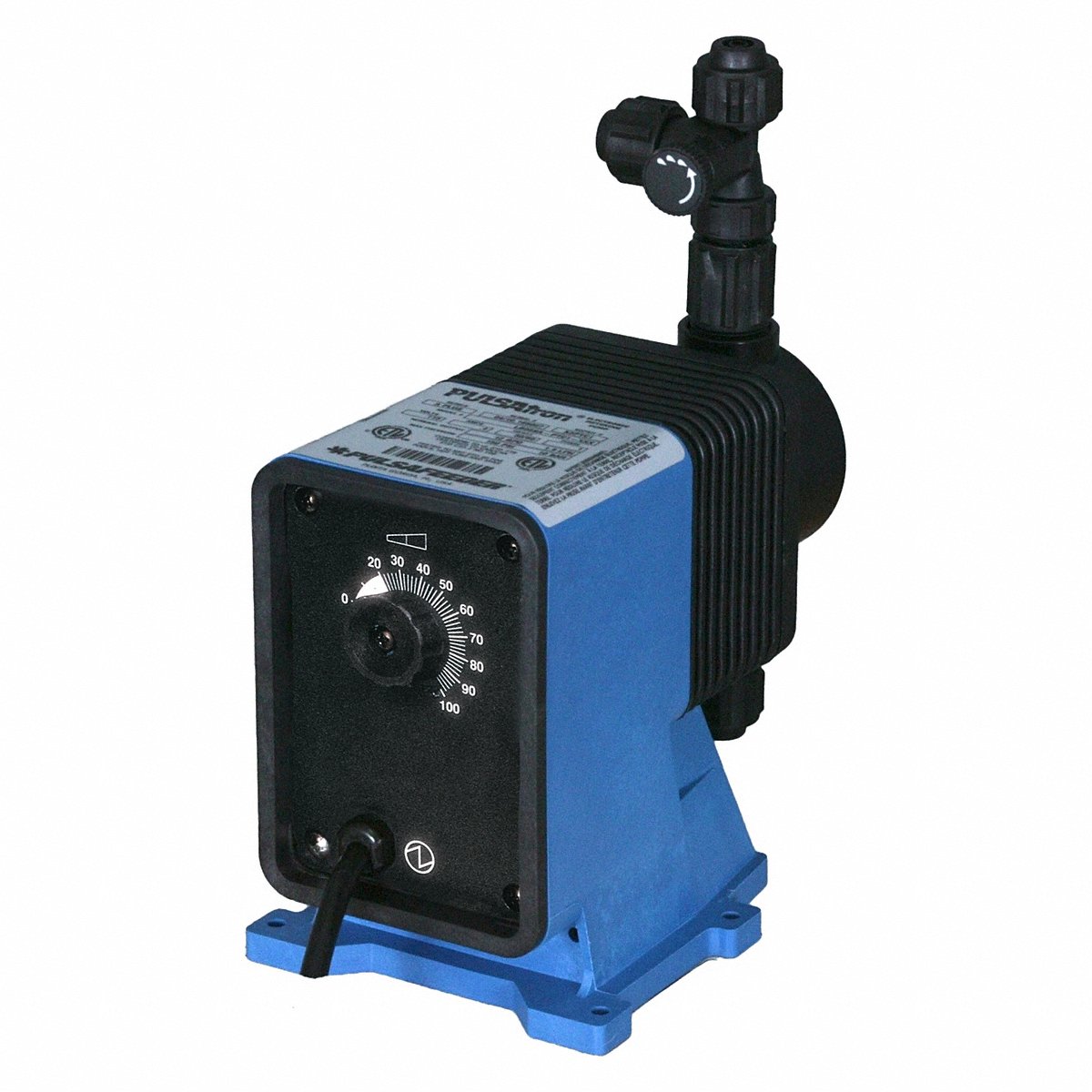

Pulsatron Chemical Metering Pump GFPPL 12 gpd .38 in (LC03SA-PTC1-G19)

Discharge Connection Size: 3/8 in

Degassing Valve Included: No

Chemical Compatibility: Calcium Carbonate, Water, Hydrochloric Acid 30%, Hydrochloric Acid 10%, Sodium Hydroxide 50%, Phosphoric Acid 40%, Sulfuric Acid 10%, Potassium Hydroxide 50%, Hydrochloric Acid 20%, Sodium Hydroxide 20%, Ammonium Hydroxide, Hydrochloric Acid 40%, Sodium Hydroxide 80%

Diaphragm Material: CSPE/PTFE

Turn Down Ratio: 10: 1

Seal Material: PTFE

Viscosity (Maximum): 1,000 cps

Reproducibility: +/-3.0%

Priming: Self-Priming

Check Ball Material: Ceramic

Pump Drive Type: Solenoid

Motor Thermal Protection: Auto

Number of Feeds: 1

Discharge Connection Type: Tube

Phase: Single

Housing Material: Resin

Horsepower (Maximum): 1/5 hp

Intake Connection Type: Tube

Control Programs: Manual Control

Head Material: PP, Polypropylene

Media Temperature (Maximum): 104 Degrees F

Nameplate Voltage: 115V AC

Operating Pressure (Maximum): 80 psi

Fitting Material: Polypropylene, PP

Flow Rate (Maximum): 12 gpd

Standards: ETL Sanitation, CE Certified, ETL, NSF 61 Certified

Intake Connection Size: 3/8 in

Stroke Rate (Maximum): 125 stroke/min
