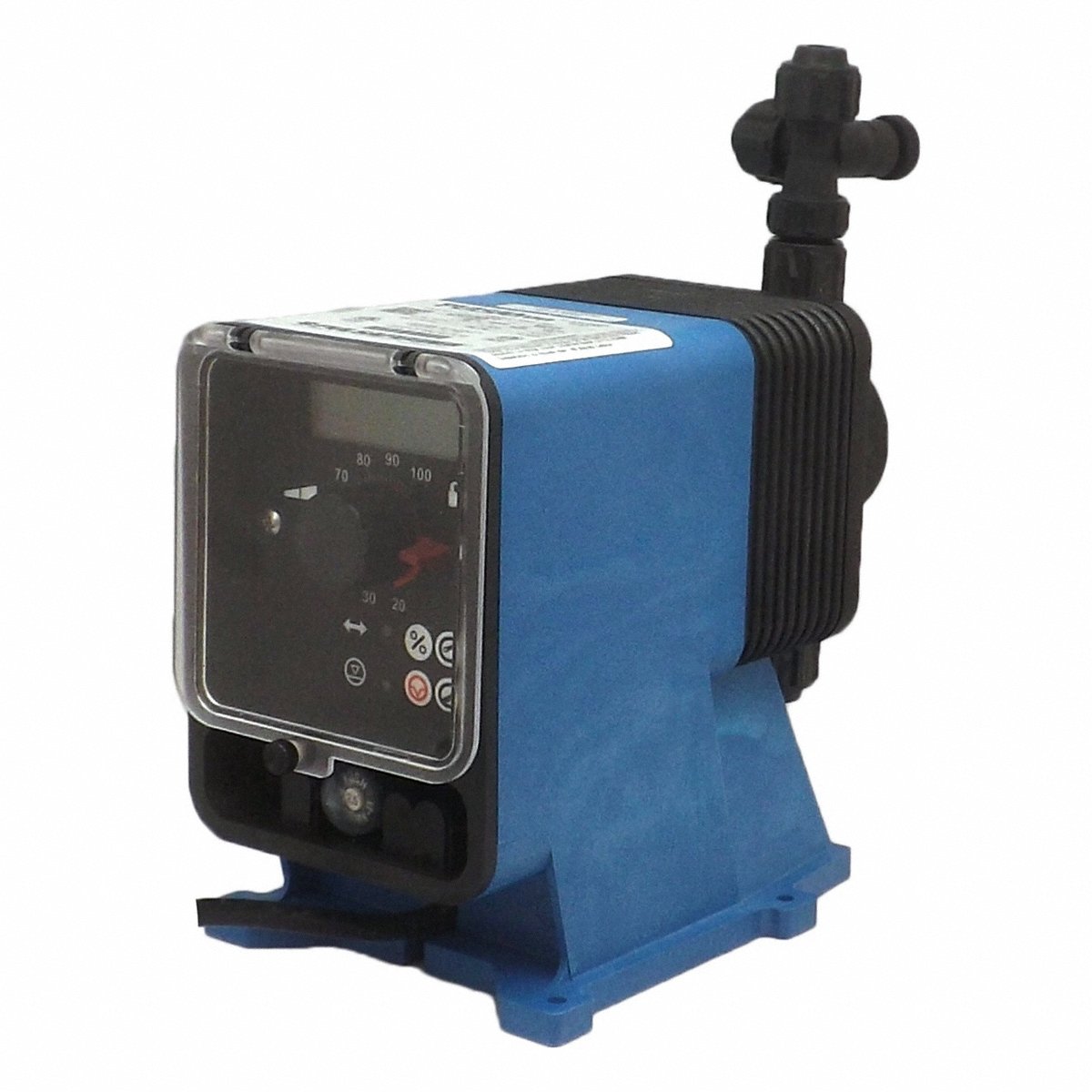

Pulsatron Chemical Metering Pump GFPPL 44 gpd .38 in (LME4TA-PTC1-G19)

Flow Rate (Maximum): 44 gpd

Number of Feeds: 1

Nameplate Voltage: 115V AC

Degassing Valve Included: No

Seal Material: PTFE

Reproducibility: +/-2.0%

Horsepower (Maximum): 1/5 hp

Fitting Material: Polypropylene, PP

Media Temperature (Maximum): 104 Degrees F

Control Programs: 4-20 mA Input, Manual Control, Pulse

Chemical Compatibility: Calcium Carbonate, Water, Hydrochloric Acid 30%, Hydrochloric Acid 10%, Sodium Hydroxide 50%, Phosphoric Acid 40%, Sulfuric Acid 10%, Potassium Hydroxide 50%, Hydrochloric Acid 20%, Sodium Hydroxide 20%, Ammonium Hydroxide, Hydrochloric Acid 40%, Sodium Hydroxide 80%

Pump Drive Type: Solenoid

Housing Material: Resin

Intake Connection Type: Tube

Discharge Connection Size: 3/8 in

Turn Down Ratio: 1000: 1

Stroke Rate (Maximum): 125 stroke/min

Motor Thermal Protection: Auto

Head Material: PP, Polypropylene

Intake Connection Size: 3/8 in

Viscosity (Maximum): 1,000 cps

Operating Pressure (Maximum): 100 psi

Check Ball Material: Ceramic

Priming: Self-Priming

Discharge Connection Type: Tube

Standards: ETL Sanitation, CE Certified, ETL, NSF 61 Certified

Phase: Single

Diaphragm Material: CSPE/PTFE
