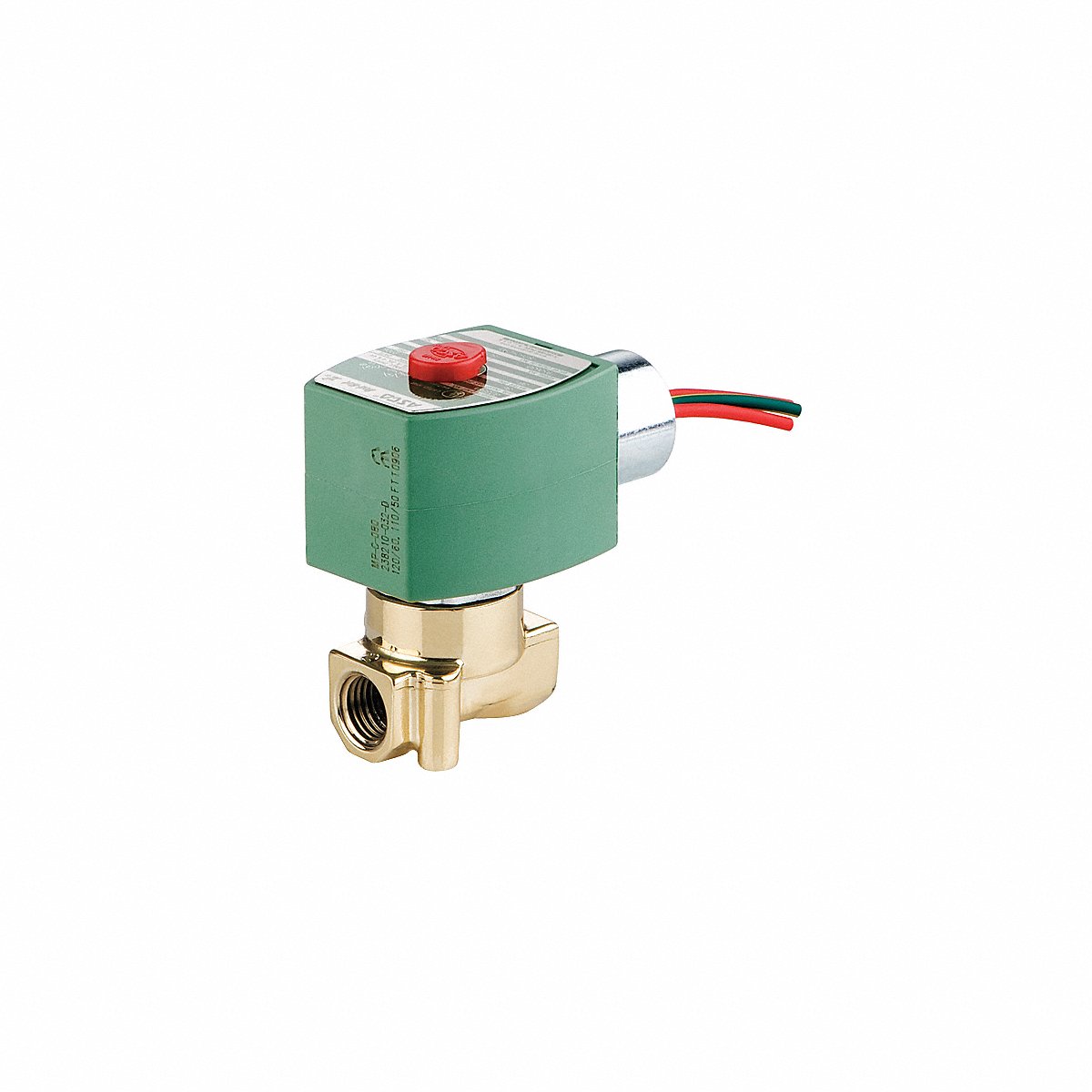

Redhat Solenoid Valve, Brass, Nc, Air, Inert Gas (8262H013V)

Environmental Rating: Hazardous, Corrosive, Outdoor, Indoor

Ambient Temperature - Maximum: 131 Degrees F

Valve Ways: 2-Way

Operating Pressure Differential Water - Maximum: 54 psi

Fluid Temperature - Maximum: 180 Degrees F

Standards: CE, FM, UL Listed, CSA

Nominal Pipe Size: 1/4 in

Coil Insulation Class: F

Ambient Temperature - Minimum: -13 Degrees F

For Media: Oxygen, Biodiesel Fuel, Water, Natural Gas, Aggressive Gases, Steam, Inert Gases, Cryogenic Fluids, Air, Hot Water, Fuel Oil, Ammonia, Aggressive Liquids, Light Oil, Liquid Propane Gas

Valve Configuration: Normally Closed

Operating Pressure Differential Light Oil - Maximum: 40 psi

Operation Type: Direct Acting

Body Material: Brass

Orifice Diameter: 7/32 in

Operating Pressure Differential Air/Inert Gas - Maximum: 55 psi

Coefficient of Volume (Cv): 0.73, 0.51 - 1.00

Seal Material: FKM

Connection Type: NPTF x NPTF

Valve Type: High Flow

Coil Enclosure: Watertight, Without Junction Box

Voltage: 120V AC, 110V AC

Operating Pressure Differential - Minimum: 0 psi
