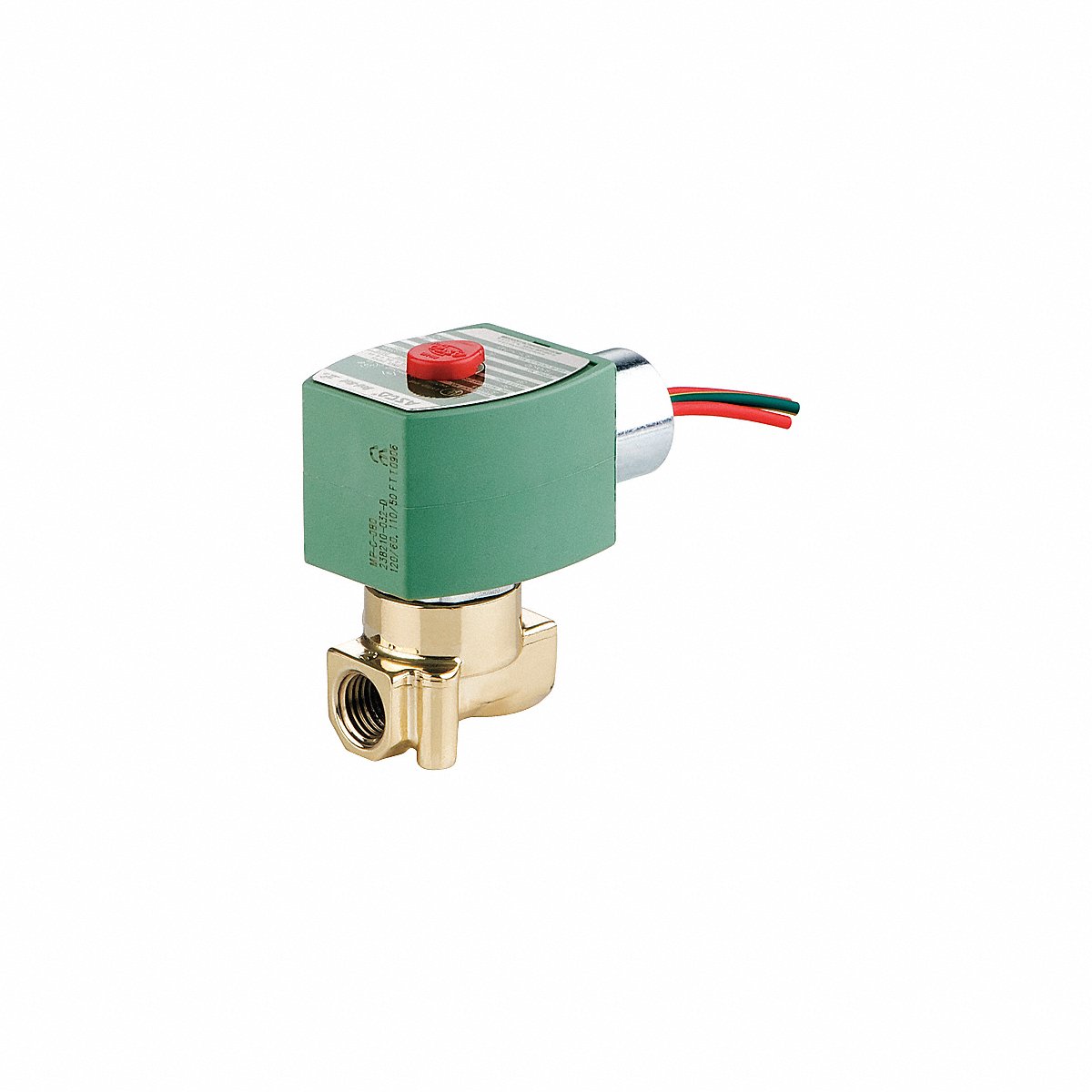

Redhat Solenoid Valve Brass NC Air Inert Gas (8262H022)

Seal Material: NBR

Operation Type: Direct Acting

Fluid Temperature - Maximum: 180 Degrees F

Ambient Temperature - Maximum: 131 Degrees F

Orifice Diameter: 1/8 in

Ambient Temperature - Minimum: 14 Degrees F

Operating Pressure Differential - Minimum: 0 psi

Valve Type: High Flow

Environmental Rating: Hazardous, Corrosive, Outdoor, Indoor

Coil Insulation Class: F

Nominal Pipe Size: 1/4 in

Connection Type: NPTF x NPTF

Body Material: Brass

Operating Pressure Differential Light Oil - Maximum: 90 psi

Coefficient of Volume (Cv): 0 - 0.50, 0.35

Operating Pressure Differential Air/Inert Gas - Maximum: 185 psi

Operating Pressure Differential Water - Maximum: 180 psi

Valve Configuration: Normally Closed

Valve Ways: 2-Way

Voltage: 24V AC

For Media: Oxygen, Biodiesel Fuel, Water, Natural Gas, Aggressive Gases, Steam, Inert Gases, Cryogenic Fluids, Air, Hot Water, Fuel Oil, Ammonia, Aggressive Liquids, Light Oil, Liquid Propane Gas

Standards: UL Listed, CSA

Coil Enclosure: Watertight, Without Junction Box
