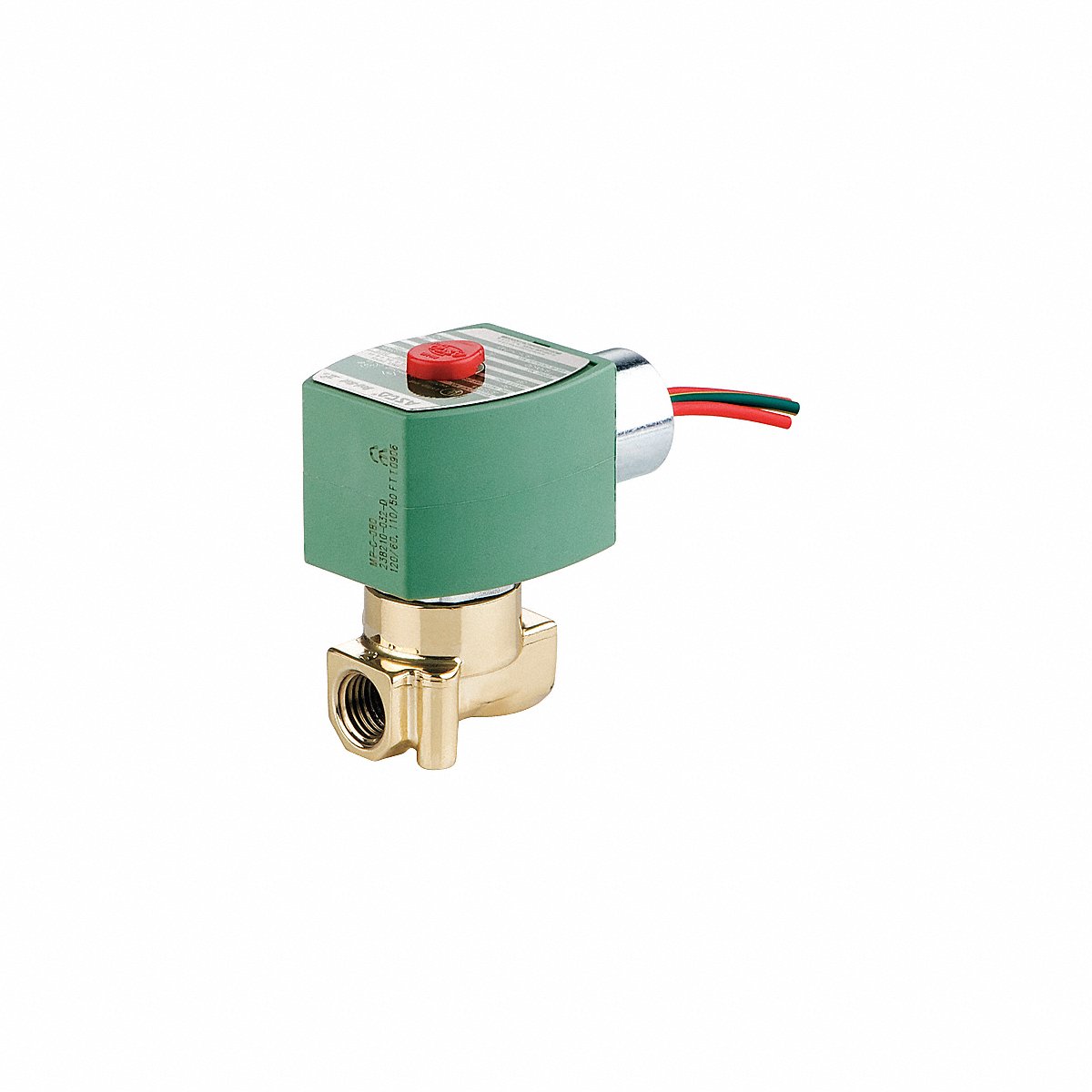

Redhat Solenoid Valve, Brass, No, Air, Inert Gas (8262H262)

Connection Type: NPTF x NPTF

Ambient Temperature - Minimum: -13 Degrees F

Operating Pressure Differential Water - Maximum: 145 psi

Operating Pressure Differential Air/Inert Gas - Maximum: 160 psi

Body Material: Brass

Environmental Rating: Hazardous, Corrosive, Outdoor, Indoor

Operating Pressure Differential Light Oil - Maximum: 125 psi

Valve Type: High Flow

Coefficient of Volume (Cv): 0 - 0.50, 0.35

Coil Insulation Class: F

Nominal Pipe Size: 1/4 in

Operating Pressure Differential - Minimum: 0 psi

Valve Ways: 2-Way

Valve Configuration: Normally Open

Fluid Temperature - Maximum: 180 Degrees F

Coil Enclosure: Watertight, Without Junction Box

Voltage: 120V AC, 110V AC

Orifice Diameter: 1/8 in

Seal Material: NBR

Operation Type: Direct Acting

Standards: CE, UL Listed, CSA

For Media: Oxygen, Biodiesel Fuel, Water, Natural Gas, Aggressive Gases, Steam, Inert Gases, Cryogenic Fluids, Air, Hot Water, Fuel Oil, Ammonia, Aggressive Liquids, Light Oil, Liquid Propane Gas
