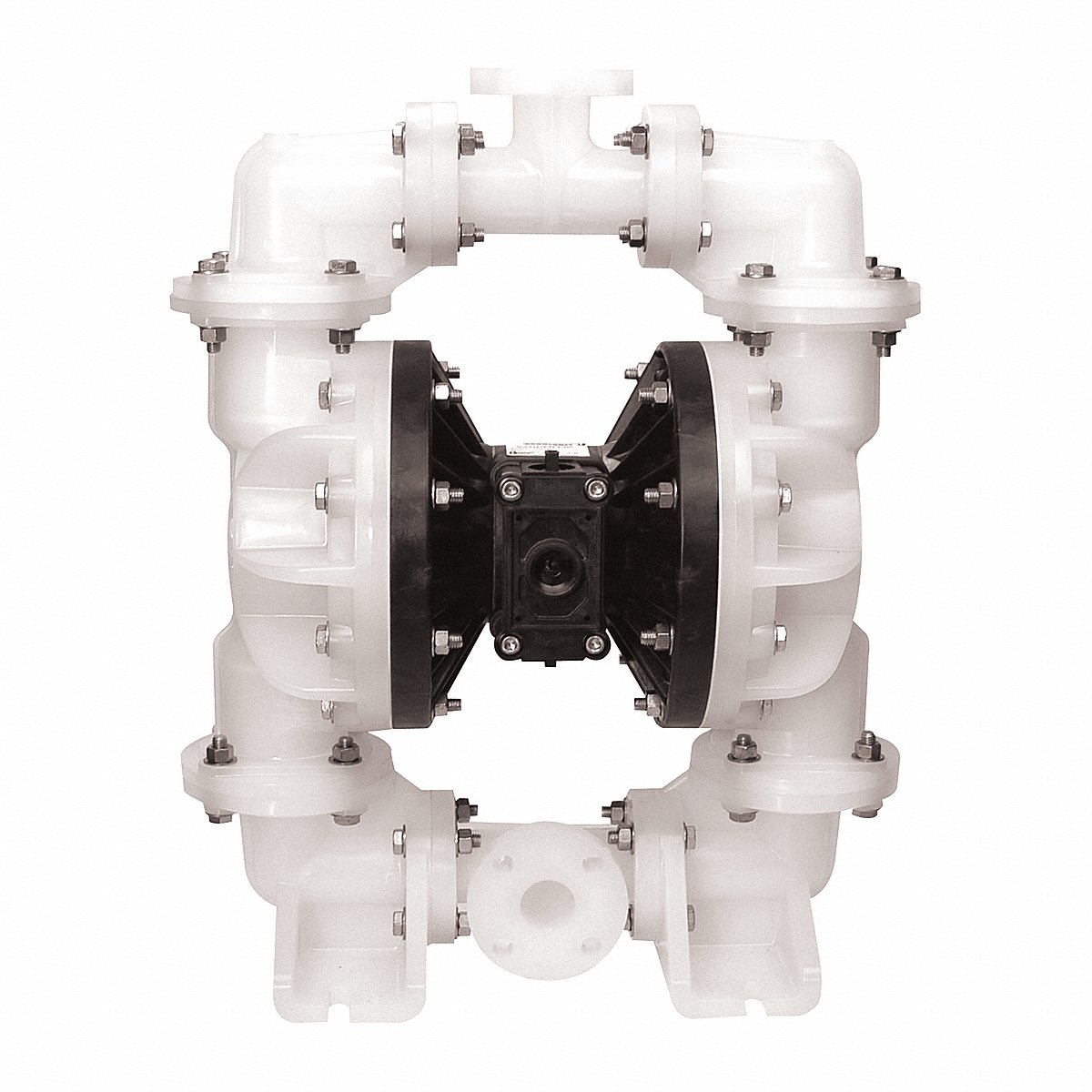

Sandpiper Dbl Diaphram Pump NPT PTFE/PP 3/4 in 200 gpm (S20B3P2PPUS000.)

Valve Material: PTFE

Diaphragm Material: PTFE

Pump Operation Type: Air

Solid Diameter (Maximum): 0.25 in

Media Temperature (Maximum): 220 Degrees F

Chemical Compatibility: Calcium Carbonate, Sulfuric Acid 80%, Sulfuric Acid 40%, Sulfuric Acid 60%, Sulfuric Acid 20%, Water, Hydrochloric Acid 30%, Hydrochloric Acid 10%, Sodium Hydroxide 50%, Sodium Hydroxide 10%, Phosphoric Acid 40%, Sulfuric Acid 70%, Sulfuric Acid 30%, Sulfuric Acid 50%, Sulfuric Acid 10%, Potassium Hydroxide 50%, Hydrochloric Acid 20%, Sodium Hydroxide 20%, Ammonium Hydroxide, Sodium Hydroxide 80%, Phosphoric Acid 50%

Fluid Connection Type: Flange

Manifold Connection: Single Port

Feet of Head (Maximum): 231 ft

Standards: EAC, ABS Type Approved, CE Certified, ISO

Air Consumption (Maximum): 80 scfm

Fluid Connection Size: 2 in

Housing Material: Polypropylene

Max. Flow Rate Range: 200 gpm or greater

Operating Pressure (Maximum): 125 psi

Pump Assembly Type: Bolt

Check Seat Material: Polypropylene

Flow Rate (Maximum): 200 gpm

Valve Type: Ball
