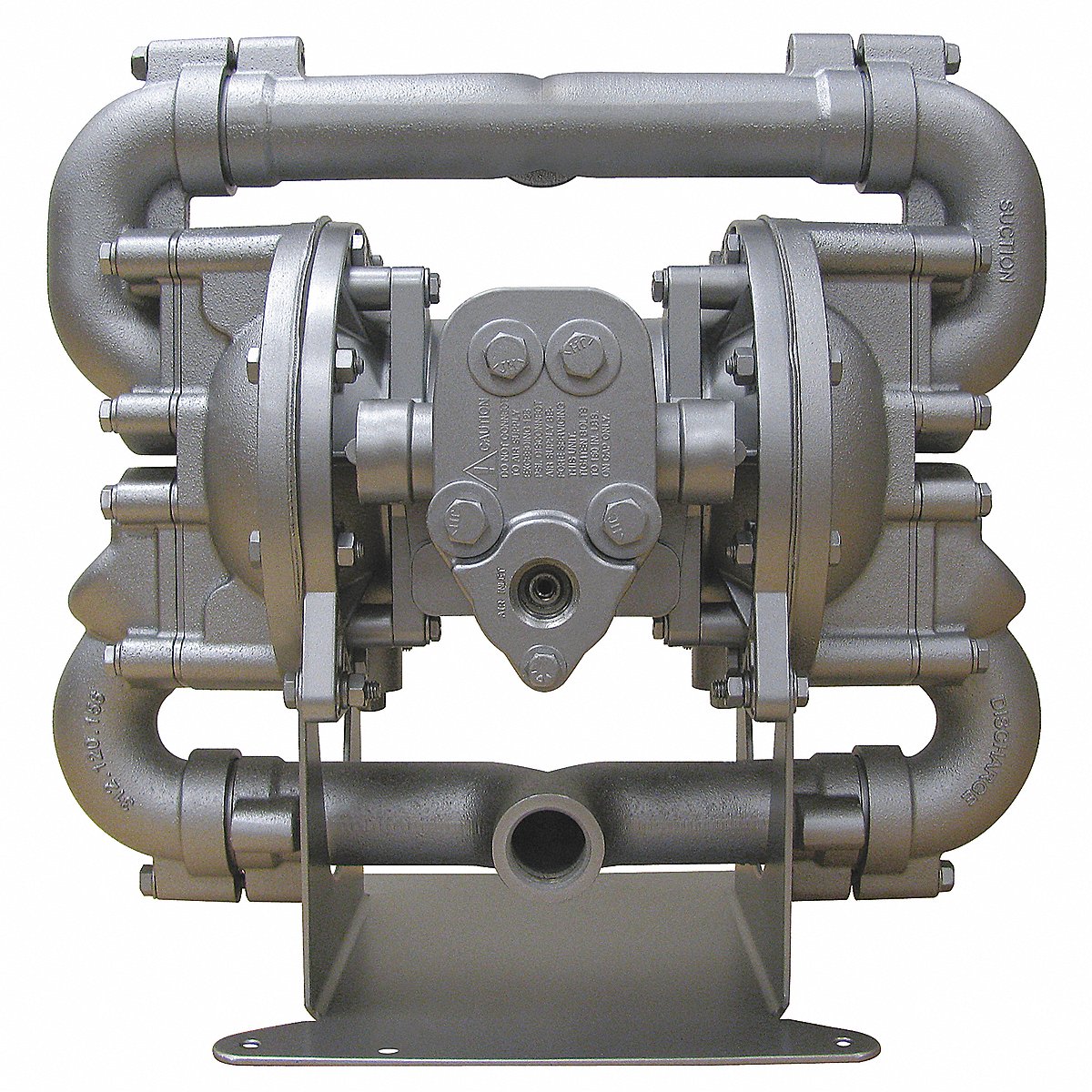

Sandpiper, Double Diaphragm Pump, NPT, Buna-N and Stainless Steel, 1/2 in, 70 gpm (HDF1 DB2A)

Chemical Compatibility: Water, Gasoline, Diesel, Kerosene, Antifreeze, Ammonium Hydroxide, Alcohol, Diesel Exhaust Fluid

Flow Rate (Maximum): 70 gpm

Pump Operation Type: Air

Standards: EAC, ABS Type Approved, CE Certified, ISO

Pump Assembly Type: Bolt

Air Consumption (Maximum): 50 scfm

Solid Diameter (Maximum): 1 in

Operating Pressure (Maximum): 125 psi

Fluid Connection Type: NPT

Housing Material: Aluminum

Diaphragm Material: Buna-N

Feet of Head (Maximum): 289 ft

Fluid Connection Size: 1 in

Check Seat Material: 316 Stainless Steel

Valve Type: Flap

Valve Material: Buna-N

Max. Flow Rate Range: 50 to 99.9 gpm

Manifold Connection: Single Port

Media Temperature (Maximum): 190 Degrees F
