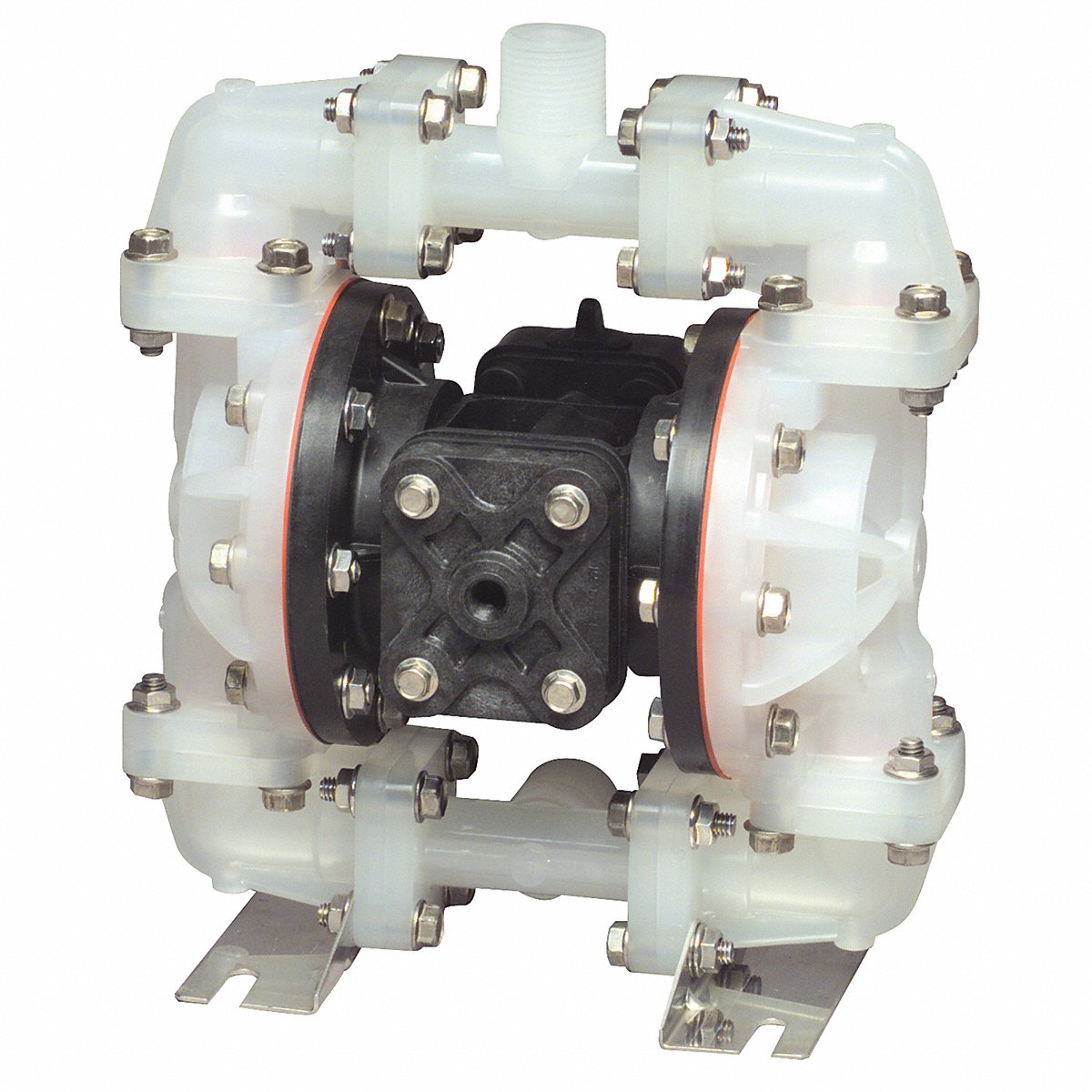

Sandpiper Double Diaphragm Pump NPT PTFE/PP 1/4" 23 GPM (S07B1P2PPNS000.)

Manifold Connection: Single Port

Solid Diameter (Maximum): 0.15 in

Housing Material: Polypropylene

Fluid Connection Size: 3/4 in

Fluid Connection Type: NPT

Check Seat Material: Polypropylene

Chemical Compatibility: Calcium Carbonate, Sulfuric Acid 80%, Sulfuric Acid 40%, Sulfuric Acid 60%, Sulfuric Acid 20%, Water, Hydrochloric Acid 30%, Hydrochloric Acid 10%, Sodium Hydroxide 50%, Sodium Hydroxide 10%, Phosphoric Acid 40%, Sulfuric Acid 70%, Sulfuric Acid 30%, Sulfuric Acid 50%, Sulfuric Acid 10%, Potassium Hydroxide 50%, Hydrochloric Acid 20%, Sodium Hydroxide 20%, Ammonium Hydroxide, Sodium Hydroxide 80%, Phosphoric Acid 50%

Standards: EAC, ABS Type Approved, CE Certified, ISO

Air Consumption (Maximum): 20 scfm

Media Temperature (Maximum): 180 Degrees F

Feet of Head (Maximum): 231 ft

Max. Flow Rate Range: 10 to 24.9 gpm

Pump Assembly Type: Bolt

Operating Pressure (Maximum): 100 psi

Valve Type: Ball

Diaphragm Material: PTFE

Flow Rate (Maximum): 23 gpm

Valve Material: PTFE

Pump Operation Type: Air
