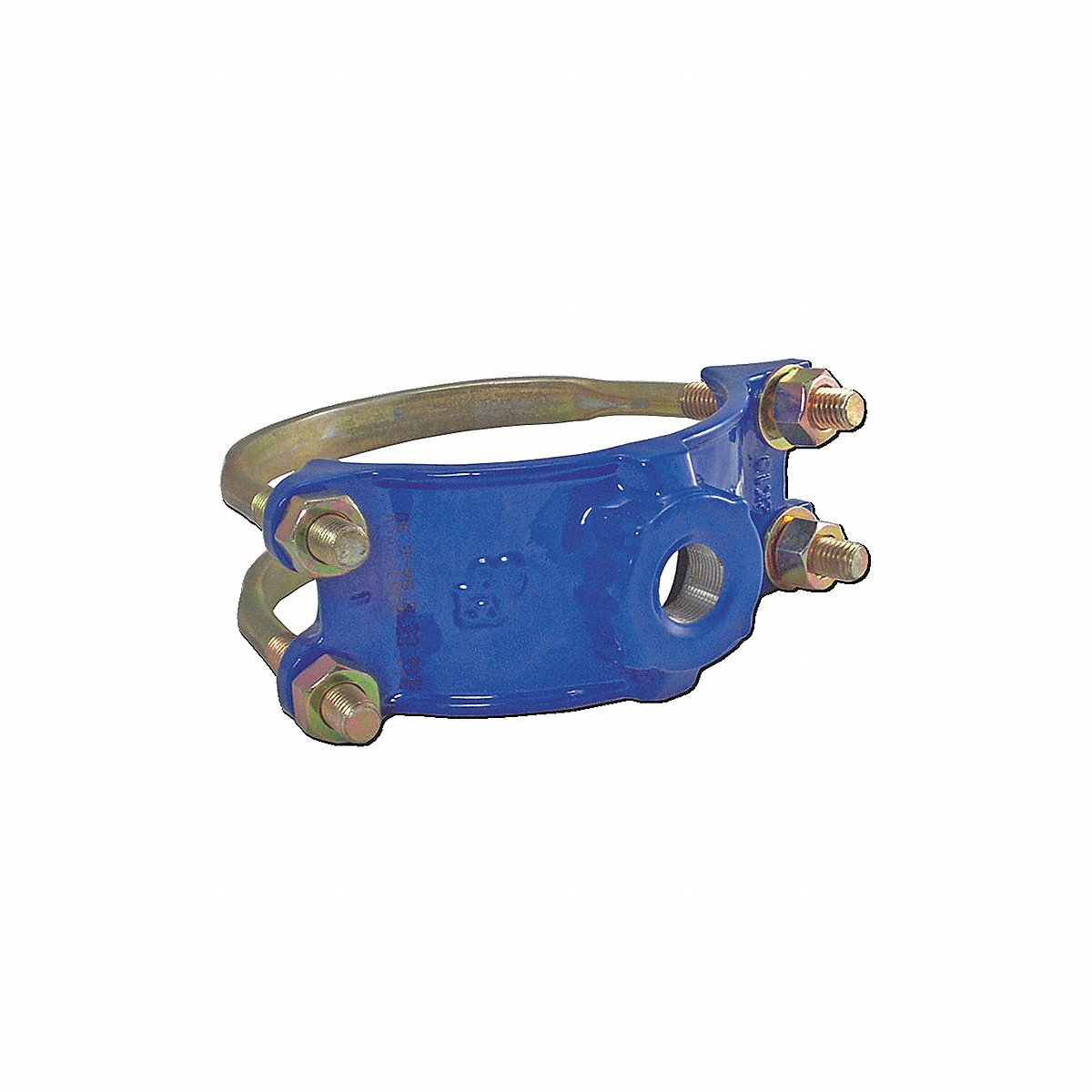

Smith-blair Saddle Clamp, 4 Pipe Size 3/4 NPT Outlet (31300048006000)

Maximum Operating Temperature: 180 Degrees F

Outlet Connection: 3/4 in NPT

For Material Type: Ductile Iron, Cast Iron, Steel

Minimum Operating Temperature: -20 Degrees F

Pipe Size: 4 in, 3 in

Saddle Material: Epoxy Iron

Maximum Operating Pressure: 300 psi

Gasket Material: Buna-N

For Maximum Outside Diameter: 4-13/16 in

Bolt Material: Steel

For Minimum Outside Diameter: 4-13/32 in

Standards: ASTM B633, ASTM A108 (C1018) or HSLA (C111), AWWA C213, NSF/ANSI 61, NSF/ANSI 372, ASTM A536, AWWA C800, UL Listed
