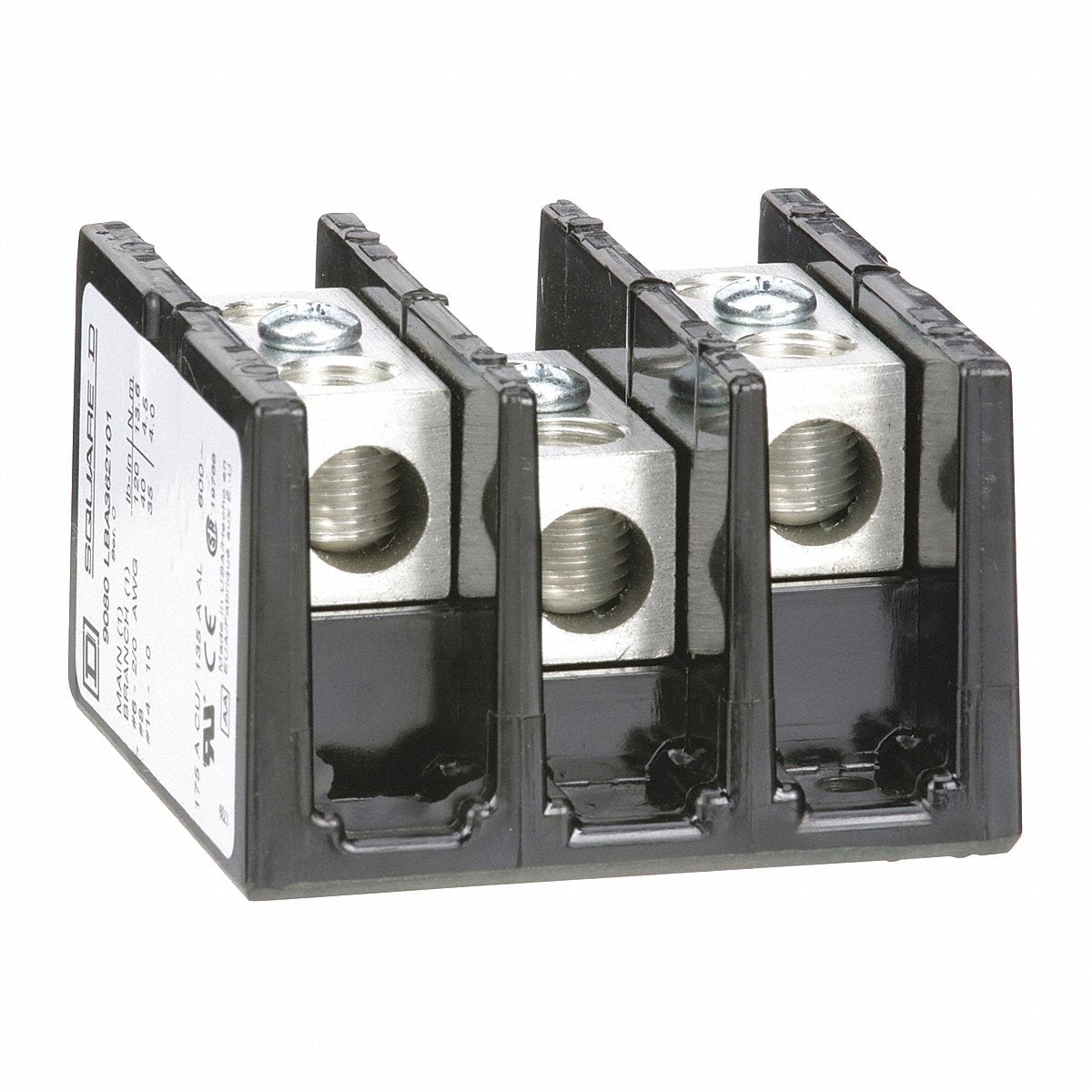

Square D Power Distr Block Al/Cu 600 V AC/DC (9080LBA362101)

Manufacturer Part Number: 9080LBA362101

Mounting Type: Surface

For Conductor Material: Aluminum, Copper

For Load Side Wire Size: 4 AWG, 10 AWG, 6 AWG, 2/0 AWG, 12 AWG, 1/0 AWG, 14 AWG, 2 AWG, 8 AWG, 1 AWG

Maximum Current - Copper Conductor: 175 A

Load Connections/Pole: 1

Number of Poles: 3

For Line Side Wire Size: 8 AWG, 10 AWG, 2 AWG, 1/0 AWG, 1 AWG, 14 AWG, 4 AWG, 6 AWG, 12 AWG

Line Connections/Pole: 1

Maximum Voltage: 600 V

Load Side Connection Type: Lug

Line Side Connection Type: Lug

Power Distribution Block Design: Open
