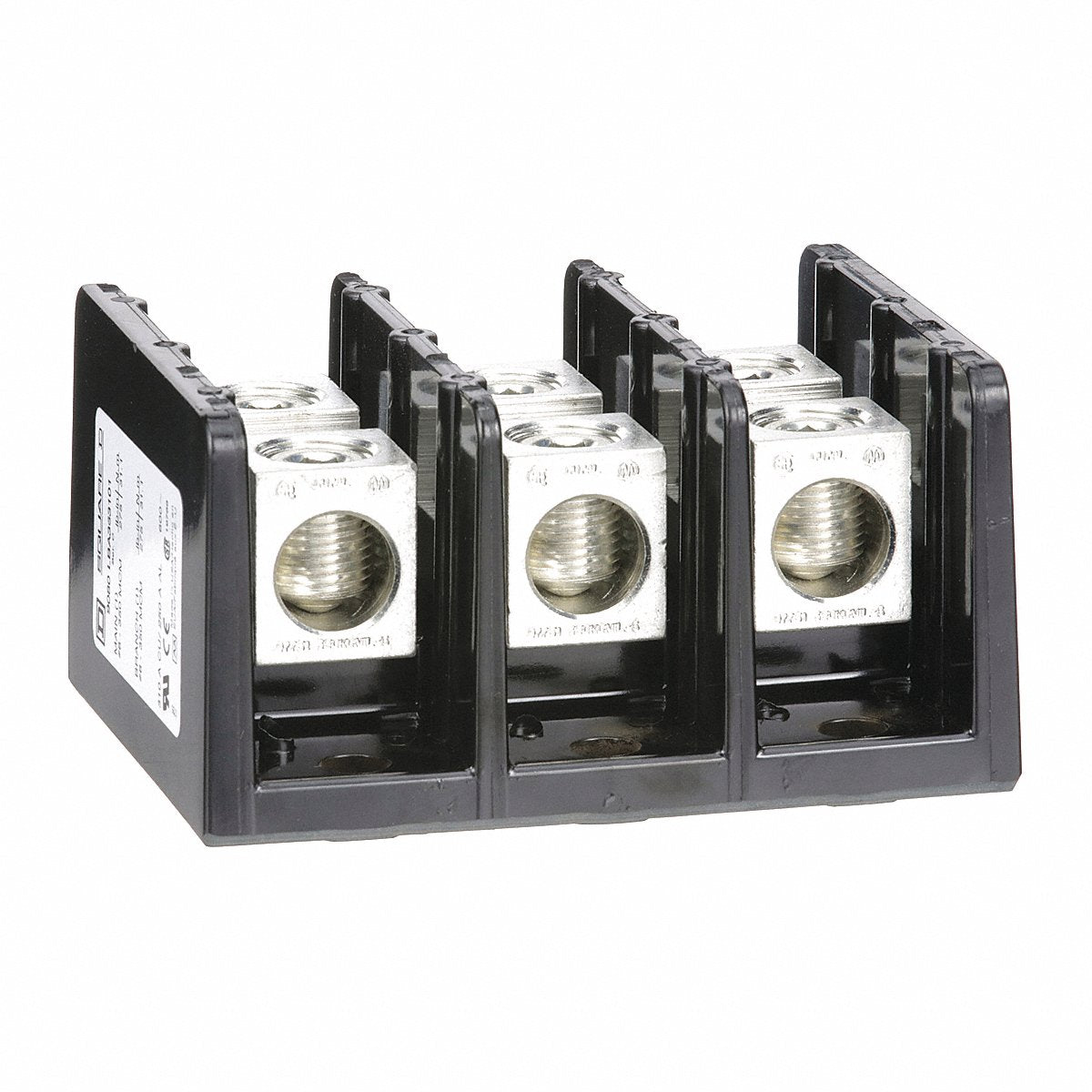

Square D Power Distr Block Al/Cu 600 V AC/DC (9080LBA363101)

For Line Side Wire Size: 350 kcmil, 2 AWG, 1/0 AWG, 1 AWG, 4/0 AWG, 4 AWG, 3/0 AWG, 6 AWG, 2/0 AWG, 250 kcmil

Line Side Connection Type: Lug

Manufacturer Part Number: 9080LBA363101

For Conductor Material: Aluminum, Copper

Load Side Connection Type: Lug

Load Connections/Pole: 1

Maximum Current - Copper Conductor: 310 A

Number of Poles: 3

For Load Side Wire Size: 250 kcmil, 4 AWG, 6 AWG, 2/0 AWG, 4/0 AWG, 1/0 AWG, 350 kcmil, 2 AWG, 1 AWG, 3/0 AWG

Mounting Type: Surface

Power Distribution Block Design: Open

Line Connections/Pole: 1

Maximum Voltage: 600 V
