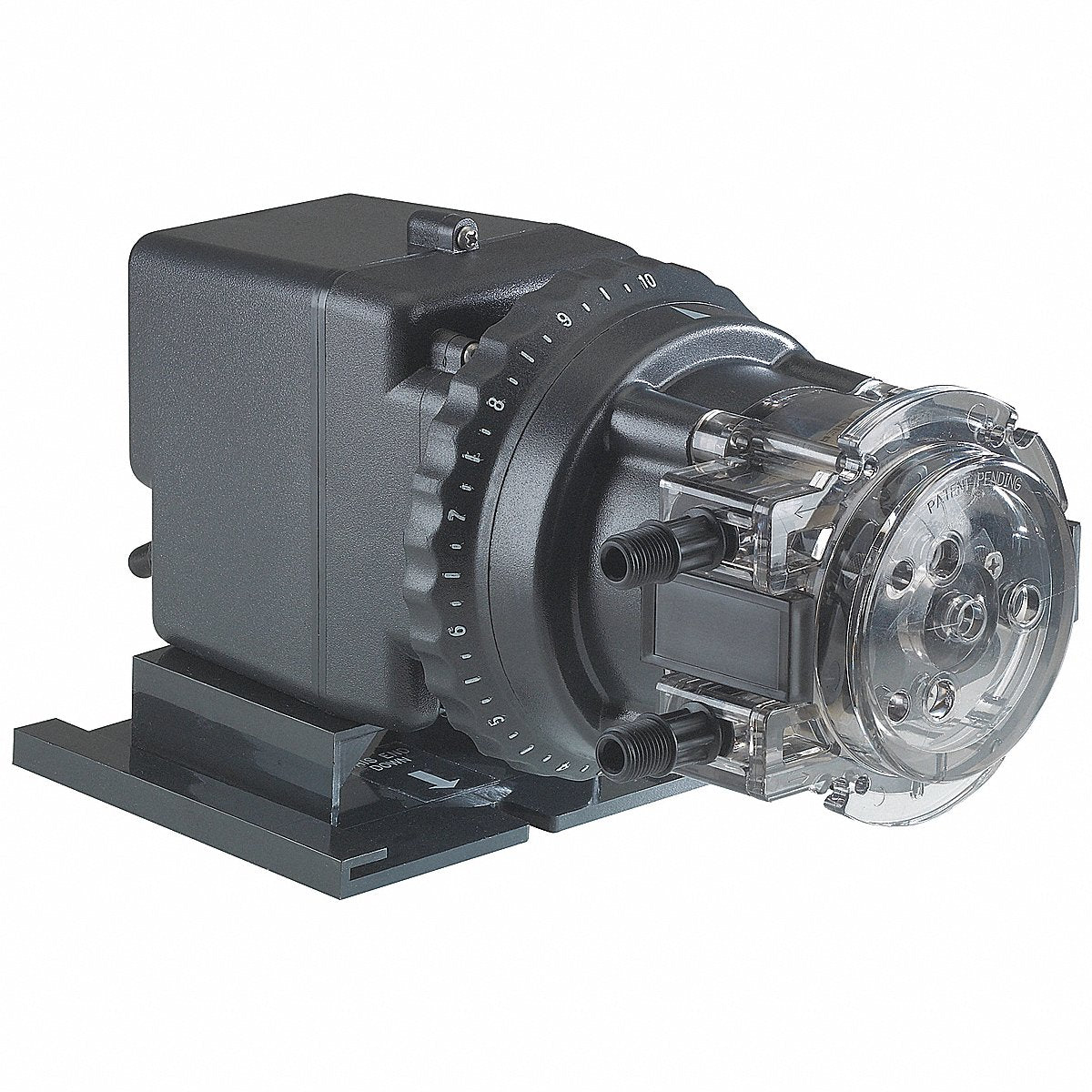

Stenner Chem Metering Pump PolyC 1/4 in 5 gpd (85MJH1A1STG1)

Housing Material: Polycarbonate

Duty Cycle: Continuous

Discharge Port: 1/4 in NPT

Fitting Material: Polypropylene/PVC

Max. Flow Rate: 5 gpd

Motor Mounting Type: Horizontal, Vertical

Roller Material: Polyethylene

Horsepower (Maximum): 1/30 hp

Max. Discharge Pressure: 100 psi

Head Material: Polycarbonate/Santoprene

Media Temperature (Maximum): 125 Degrees F

Phase: Single

Suction Port: 1/4 in NPT

Includes: (3) 1/4 in Connecting Nuts, Pump Tube, (3) 1/4 in Ferrules, Duckbill Check Valve, Weighted Suction Line Strainer, 20 ft Roll of Suction/Discharge Tubing

Degassing Valve Included: No

Tubing Material: Santoprene

Standards: CE, NSF/ANSI 50, cULus, cCSAus, NSF/ANSI 61, NSF/ANSI 372

Number of Feeds: 1

Flow Rate Output Control: Adjustable

Turn Down Ratio: 20: 1

Viscosity (Maximum): 1,500 cps

Control Programs: Manual Control

Nameplate Voltage: 120V AC

Reproducibility: +/-2.0%
