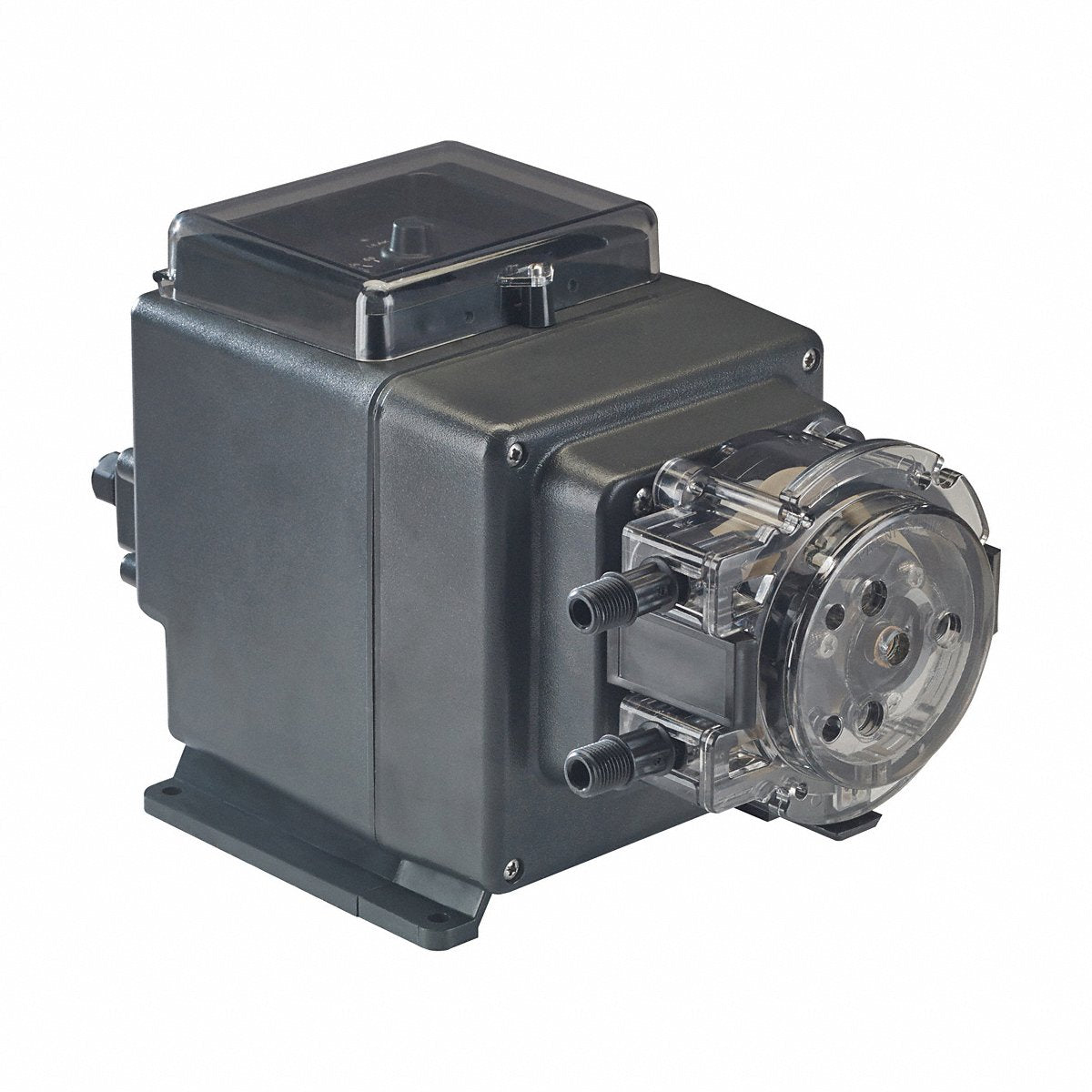

Stenner Chem Metering Pump PolyC 1/4 in 85 gpd (S3V05AA101NG1)

Roller Material: Polyethylene

Degassing Valve Included: No

Duty Cycle: Continuous

Head Material: Polycarbonate/Santoprene

Max. Flow Rate: 85 gpd

Phase: Single

Number of Feeds: 1

Standards: CE, NSF/ANSI 50, cULus, NSF/ANSI 61, NSF/ANSI 372

Includes: (3) 1/4 in Connecting Nuts, Pump Tube, (3) 1/4 in Ferrules, 1/4 in Injector, Weighted Suction Line Strainer, 20 ft Roll of Suction/Discharge Tubing

Tubing Material: Santoprene

Flow Rate Output Control: Variable

Horsepower (Maximum): 1/16 hp

Housing Material: Polycarbonate

Max. Discharge Pressure: 25 psi

Fitting Material: Polypropylene/PVC

Media Temperature (Maximum): 104 Degrees F

Viscosity (Maximum): 1,500 cps

Suction Port: 1/4 in NPT

Turn Down Ratio: 20: 1

Control Programs: Manual Control

Motor Mounting Type: Horizontal, Vertical

Discharge Port: 1/4 in NPT

Nameplate Voltage: 120V AC

Reproducibility: +/-2.0%
