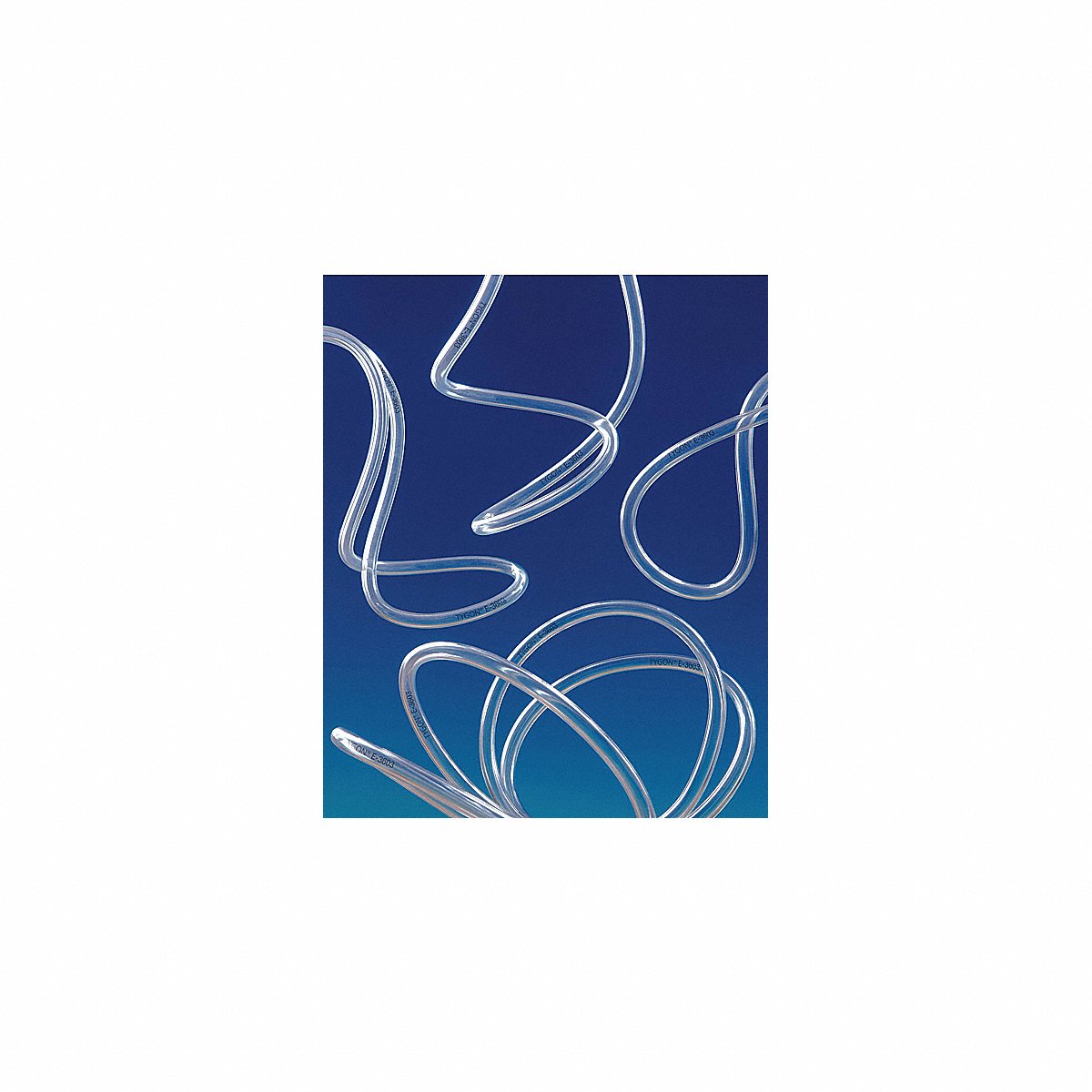

Tygon Tubing 1/4 I.D. 100 ft Clear Flexible (ACF02017)

Food Application: Food and Beverage

Hardness: Shore A 56

Clarity: Clear

Resistance Properties: Chemical Resistant, Acid Resistant, Flex-Fatigue Resistant, Tear Resistant, Crack Resistant, Abrasion Resistant

Peristaltic Pump Compatible: Yes

Maximum Vacuum Pressure: 20 in Hg

Standards: FDA 21 CFR 170-189, ASTM D1004, ASTM D1599, ASTM D792, ASTM D412, 1907/2006/EC, ASTM D395 Method B, 10/2011/EU, 1935/2004/EC, NSF 51, ASTM D746, ASTM D2240, Japan Food Sanitation Law 370/1959, ASTM D570

Fitting Compatibility: Barbed

Overall Length: 100 ft

Tubing Hardness: Ultra Soft (Less than A60)

Color: Clear

Outside Diameter: 3/8 in

System of Measurement: Inch

Tubing Reinforcement: Not Reinforced

Maximum Operating Temperature: 165 Degrees F

Bend Radius: 1 in

Flexibility: Flexible

Maximum Operating Pressure: 20 psi @ 73 Degrees F

Wall Thickness: 0.06 in

Inside Diameter: 1/4 in

Food and Beverage Compatibility: Vinegar, Soft Drinks, Orange Juice, Salt Water, Non-Potable Water, Distilled Water, Citric Acid, Beer, Dairy, Milk, Glycerin

Tradename Material: Tygon S3 E-3603
