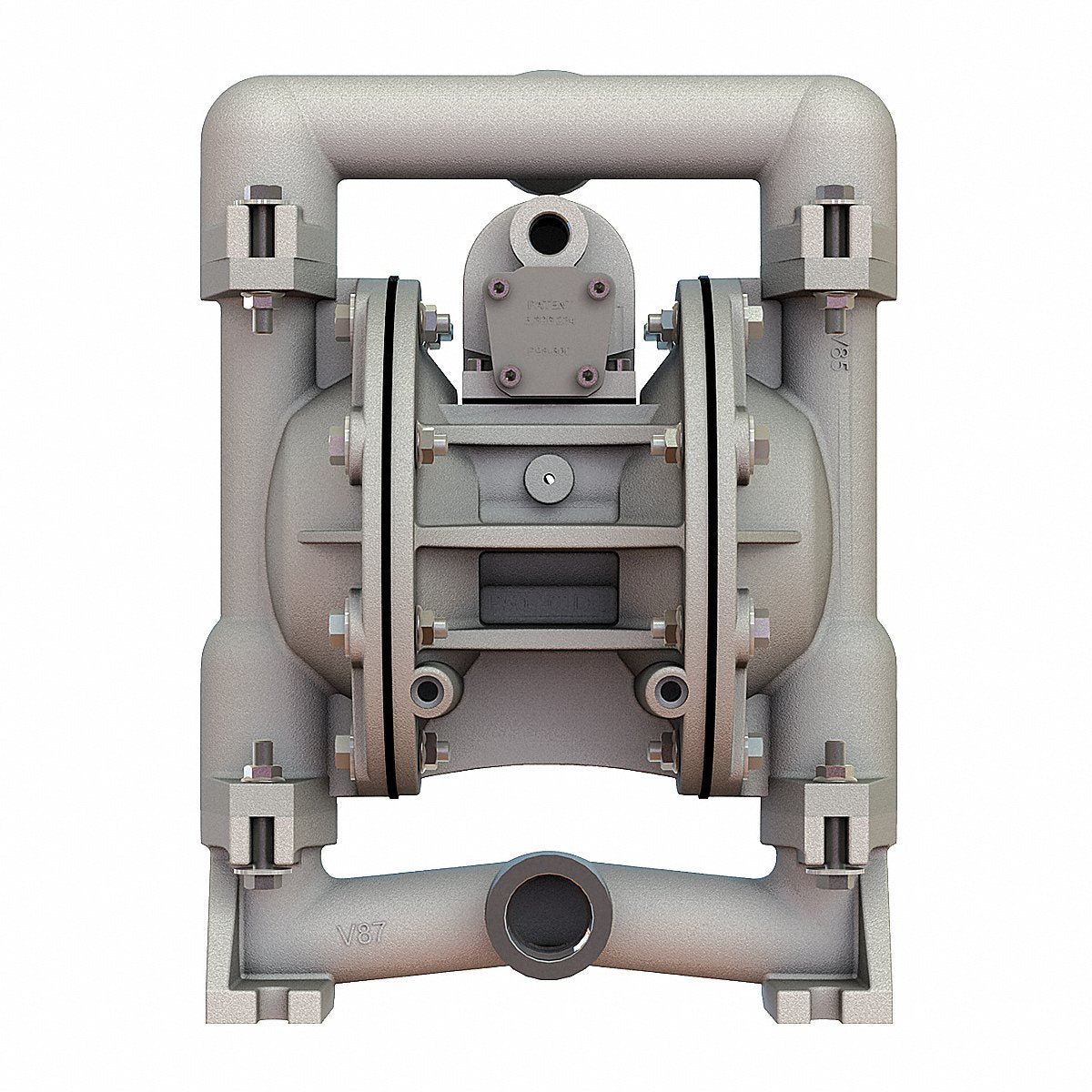

Versa-matic Dbl DiaphPmp NPT PTFE/SSteel 3/8 in 49 gpm (E1SA5T559C-ATEX)

Manifold Connection: Single Port

Feet of Head (Maximum): 320 ft

Solid Diameter (Maximum): 0.13 in

Housing Material: 316 Stainless Steel

Check Seat Material: Stainless Steel

Fluid Connection Type: NPT

Valve Material: PTFE

Chemical Compatibility: Water, Gasoline, Diesel, Kerosene, Antifreeze, Ammonium Hydroxide, Alcohol, Oils, Diesel Exhaust Fluid

Air Consumption (Maximum): 50 scfm

Flow Rate (Maximum): 49 gpm

Operating Pressure (Maximum): 125 psi

Standards: EN ISO 80079-37: 2016, EN ISO 80079-36: 2016, EN60079-25: 2010, ATEX

Valve Type: Ball

Max. Flow Rate Range: 25 to 49.9 gpm

Pump Assembly Type: Bolt

Diaphragm Material: PTFE

Pump Operation Type: Air

Media Temperature (Maximum): 220 Degrees F

Fluid Connection Size: 1 in
