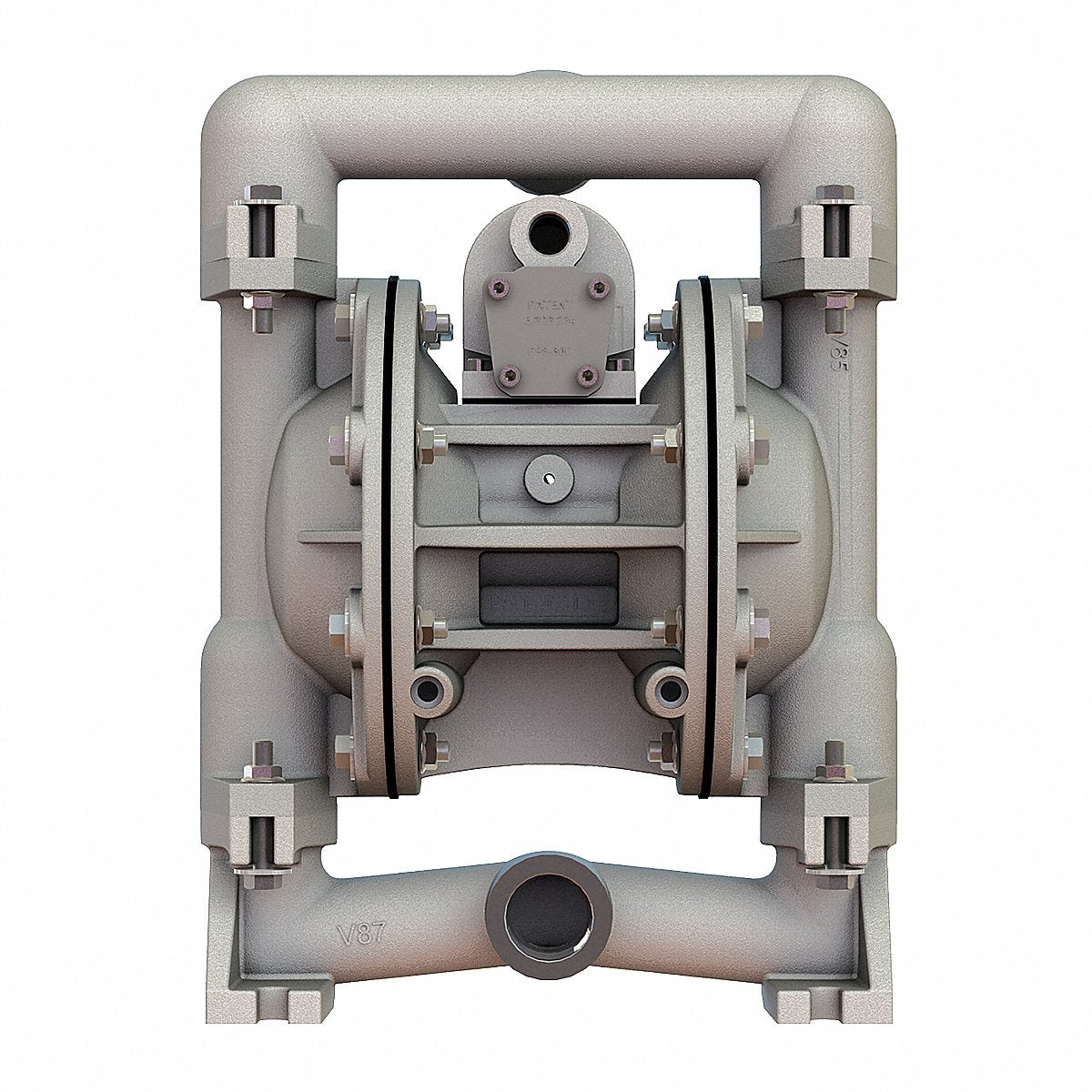

Versa-matic DblDiaphPmp NPT Nitrile/SStl 3/8 49 gpm (E1SA2R229C-ATEX)

Feet of Head (Maximum): 320 ft

Standards: EN ISO 80079-37: 2016, EN ISO 80079-36: 2016, EN60079-25: 2010, ATEX

Flow Rate (Maximum): 49 gpm

Manifold Connection: Single Port

Check Seat Material: Stainless Steel

Pump Operation Type: Air

Diaphragm Material: Buna-N

Air Consumption (Maximum): 50 scfm

Max. Flow Rate Range: 25 to 49.9 gpm

Chemical Compatibility: Water, Gasoline, Diesel, Kerosene, Antifreeze, Alcohol, Diesel Exhaust Fluid

Fluid Connection Size: 1 in

Solid Diameter (Maximum): 0.13 in

Pump Assembly Type: Bolt

Valve Material: Buna-N

Valve Type: Ball

Housing Material: 316 Stainless Steel

Fluid Connection Type: NPT

Operating Pressure (Maximum): 125 psi

Media Temperature (Maximum): 180 Degrees F
