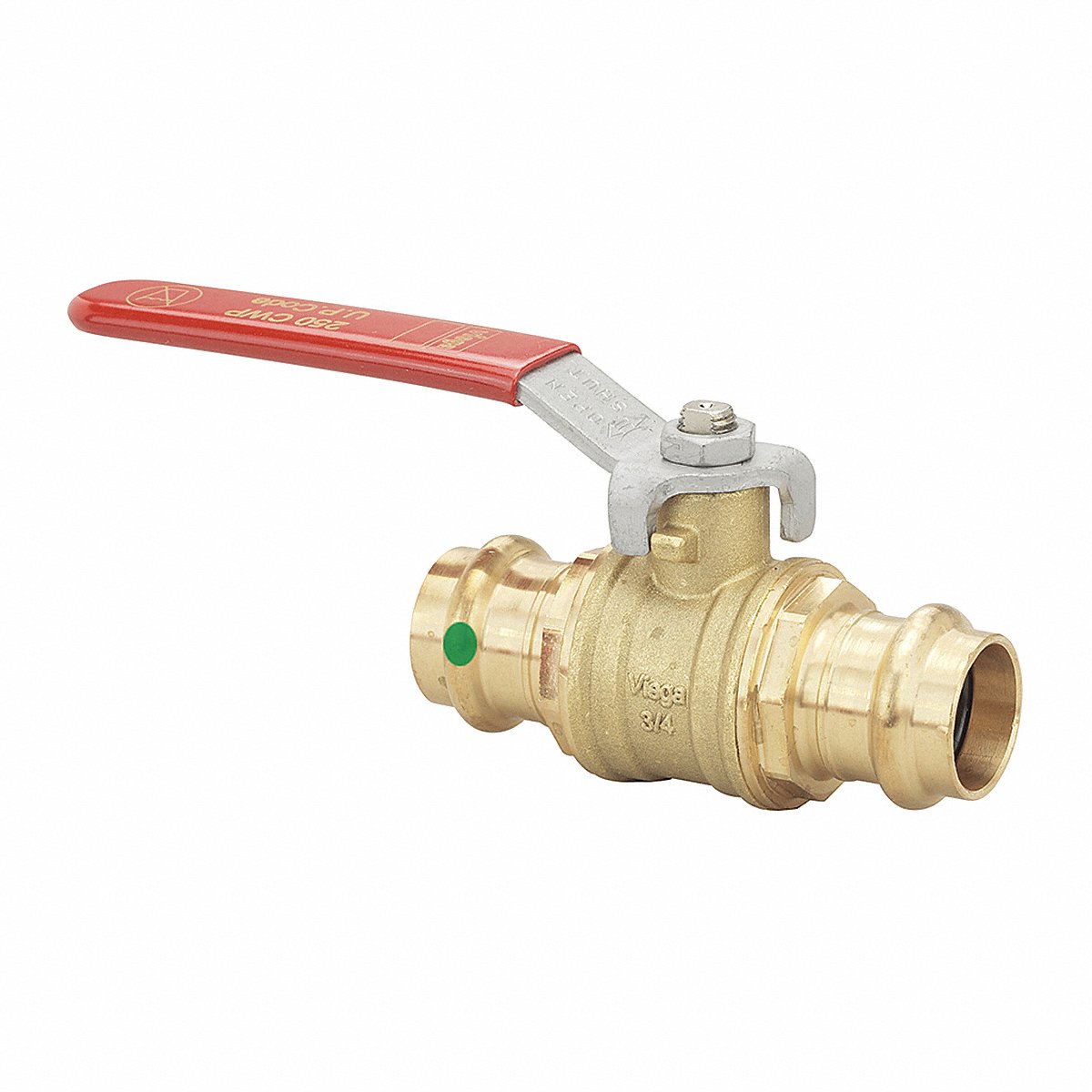

- Body Material: Brass, Bronze
- Maximum Pressure Combustible Gas: Not Rated
- Overall Length: 4.18 in
- Vacuum Service Rating: -29.2 in Hg
- 3 A Standard Compliance: Not Rated
- Connection Type: Press x Press
- Valve Ways: 2-Way
- Standards: FM Listed, IAPMO: Uniform Plumbing Code, CRN, 13D and 13R: Fire Sprinkler, NFPA 13, PHCC: National Standard Plumbing Code, ICC, UL Listed, CSA
- Handle: Lever
- Media Temp. Range: 0 Degrees F to 250 Degrees F
- Nominal Valve Size: 1 in
- Color Valve Handle: Red
- Seat Material: PTFE
- Valve Construction: Three-Piece
- Valve Body Style: Straight
- Ball Material: Chrome-Plated Brass
- Ball Port Style: Full Port
- Maximum Pressure Operating: 200 psi
- Stem Material: Brass
- For Media: Water
- Handle Material: Zinc-Plated Steel, PVC
- Maximum Pressure Steam: Not Rated
- Vented Ball Valve: Non-Vented
- Seal Material: EPDM
About the Item
| Specification Name | Specification Value |
|---|---|
| SKU | 33KF36 |
| BRAND | VIEGA PROPRESS |
| CATEGORY | Plumbing |
| MPN | 24010 |
| UPC | |
| COUNTRY OF ORIGIN | IT |
