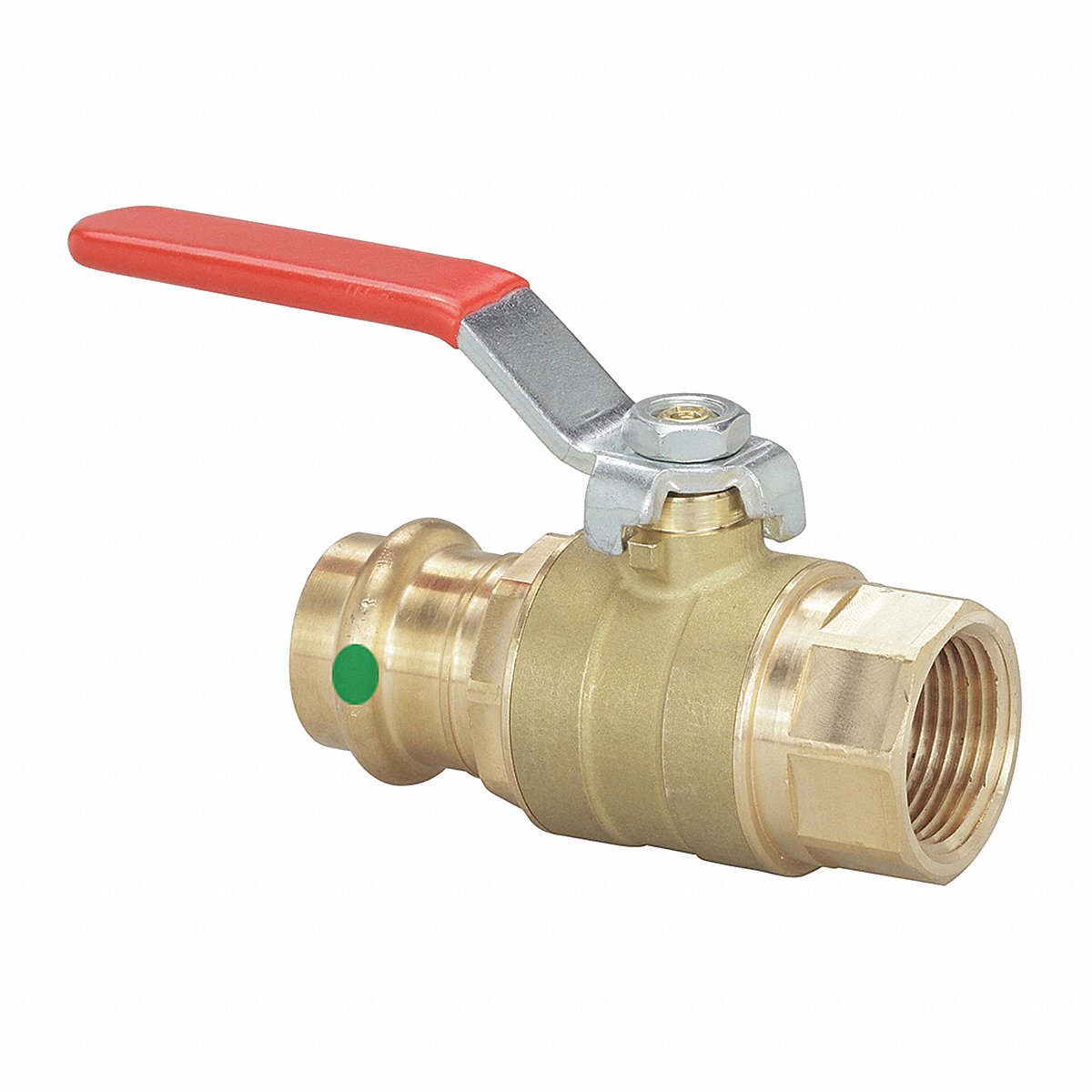

Viega Propress Manual 2-Way Ball Valve, Press, Bronze (24030)

For Media: Hydronic and Non-Potable Applications

Maximum Pressure - Steam: Not Rated

Valve Body Style: Straight

Handle: Lever

Media Temp. Range: 0 Degrees F to 250 Degrees F

Connection Type: Press x FNPT

3-A Standard Compliance: Not Rated

Ball Port Style: Full Port

Vented Ball Valve: Non-Vented

Ball Material: Chrome-Plated Brass

Vacuum Service Rating: -29.2 in Hg

NSF Certifications for Food and Drinking Water: NSF 61

Seal Material: EPDM

Nominal Valve Size: 1/2 in

Maximum Pressure - Combustible Gas: Not Rated

Overall Length: 2.74 in

Seat Material: PTFE

Standards: FM Listed, IAPMO: Uniform Plumbing Code, CRN, 13D and 13R: Fire Sprinkler, NSF/ANSI 372: Drinking Water System Components - Lead Content, NFPA 13, PHCC: National Standard Plumbing Code, ICC, UL Listed, CSA

Maximum Pressure - Operating: 200 psi

Valve Ways: 2-Way

Body Material: Brass, Bronze

Valve Construction: Three-Piece

Stem Material: Brass

Handle Material: Zinc-Plated Steel, PVC

Color - Valve Handle: Red
