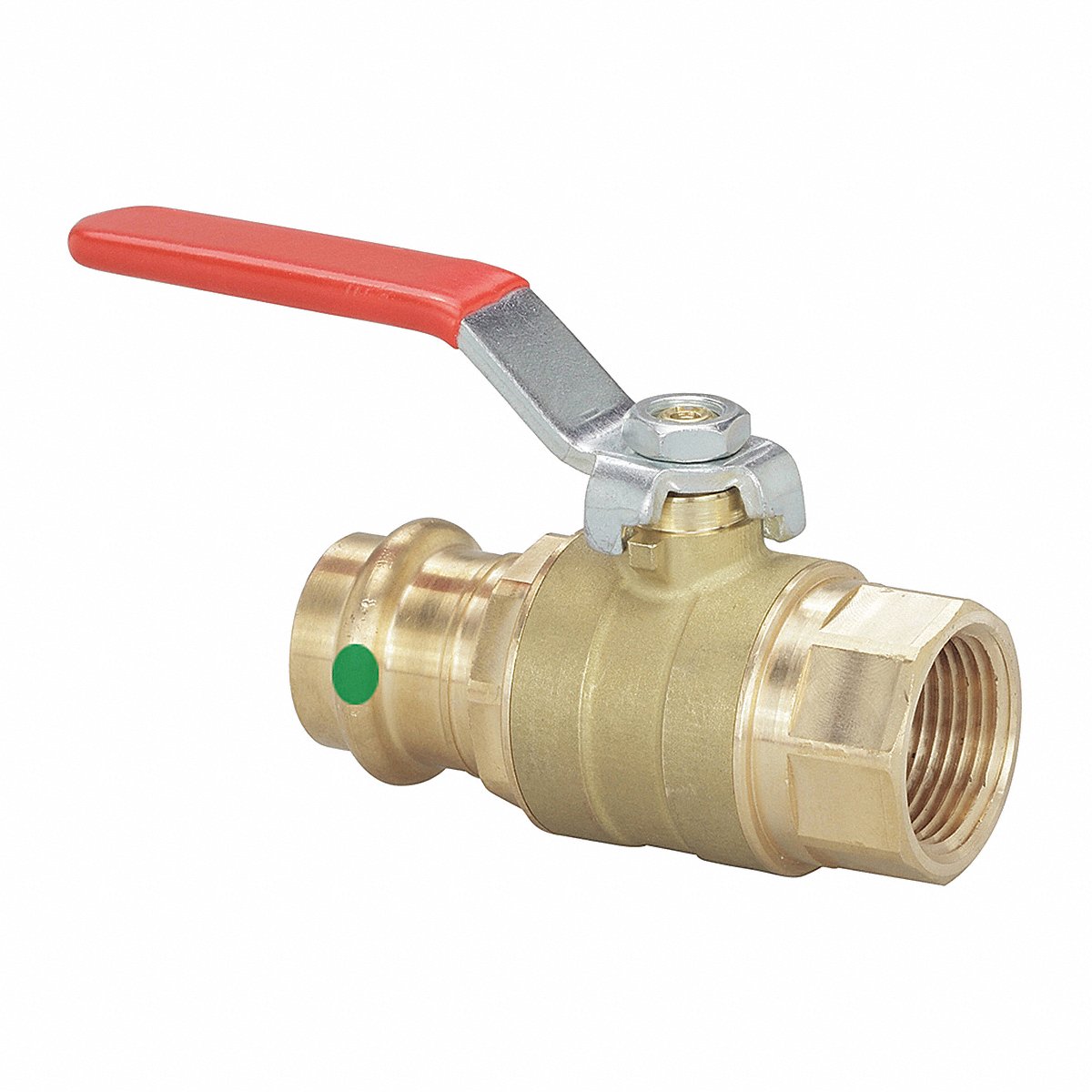

Viega Propress Manual 2-Way Ball Valve, Press, Bronze (24035)

Connection Type: Press x FNPT

Maximum Pressure - Combustible Gas: Not Rated

Standards: FM Listed, IAPMO: Uniform Plumbing Code, CRN, 13D and 13R: Fire Sprinkler, NSF/ANSI 372: Drinking Water System Components - Lead Content, NFPA 13, PHCC: National Standard Plumbing Code, ICC, UL Listed, CSA

Handle: Lever

Handle Material: Zinc-Plated Steel, PVC

Body Material: Brass, Bronze

Color - Valve Handle: Red

Stem Material: Brass

Vacuum Service Rating: -29.2 in Hg

Vented Ball Valve: Non-Vented

Ball Material: Chrome-Plated Brass

3-A Standard Compliance: Not Rated

Maximum Pressure - Operating: 200 psi

Media Temp. Range: 0 Degrees F to 250 Degrees F

For Media: Water

Maximum Pressure - Steam: Not Rated

Nominal Valve Size: 3/4 in

Seat Material: PTFE

NSF Certifications for Food and Drinking Water: NSF 61

Seal Material: EPDM

Valve Body Style: Straight

Valve Ways: 2-Way

Ball Port Style: Full Port

Overall Length: 3.12 in

Valve Construction: Three-Piece
