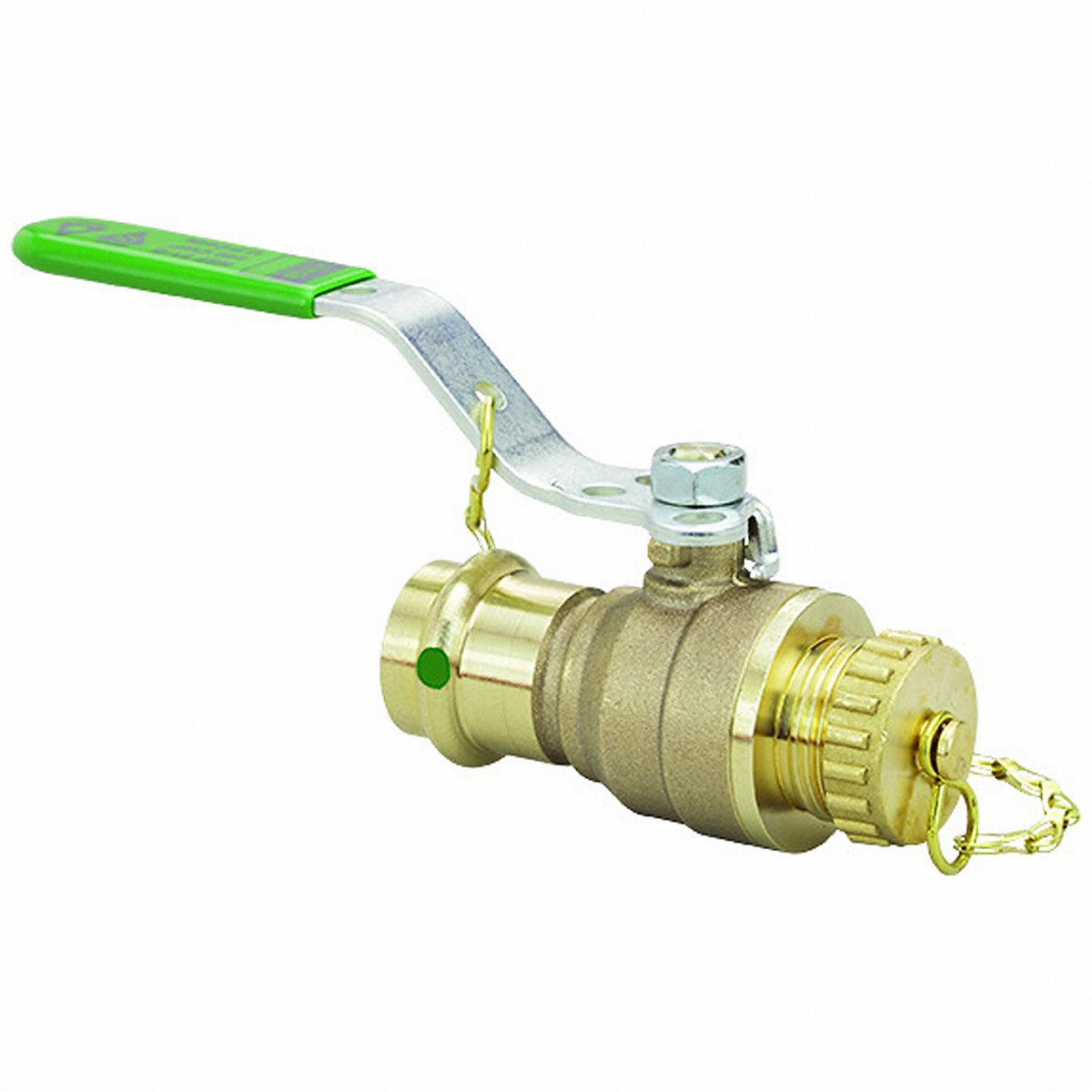

Viega Propress Manual 2-Way Ball Valve Press Bronze (79875)

Handle: Locking Lever

Stem Material: Brass

Seat Material: PTFE

Maximum Pressure - Combustible Gas: Not Rated

Connection Type: Press x Press

NSF Certifications for Food and Drinking Water: NSF 61

Valve Body Style: Straight

Media Temp. Range: 0 Degrees F to 250 Degrees F

Maximum Pressure - Steam: Not Rated

Valve Ways: 2-Way

For Media: Potable Water

Seal Material: EPDM

Nominal Valve Size: 1/2 in

3-A Standard Compliance: Not Rated

Vented Ball Valve: Non-Vented

Overall Length: 2.92 in

Valve Construction: Two-Piece

Maximum Pressure - Operating: 300 psi

Ball Port Style: Full Port

Handle Material: Metal

Body Material: Bronze

Color - Valve Handle: Green

Standards: FM Class 1920, ICC-ES LC1002, ASME B31.9, NFPA 13D, NFPA 13R, ASME B31.1, CSA Low Lead Content, ASME B31.3, ASME B16.51, NFPA 13, UL/ANSI 213, IAPMO PS-117, NSF/ANSI 372, ABS

Vacuum Service Rating: -29.2 in Hg

Ball Material: Stainless Steel
